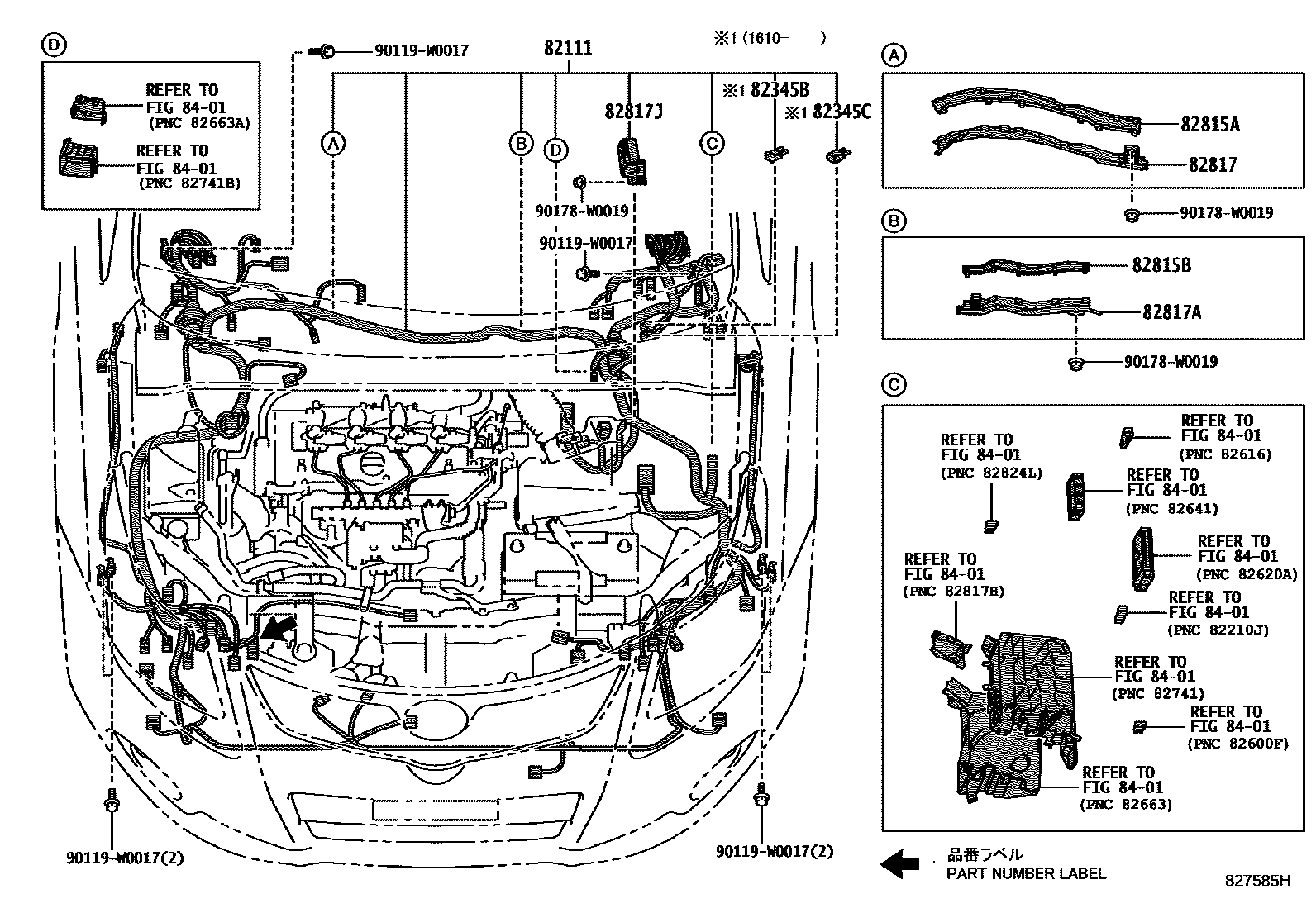

82111WIRE, ENGINE ROOM MAIN

main82111-05Q30iZRT272201107-201111

main82111-05Q40iZRT272201202-201303

main82111-05T90iZRT272201303-201402

main82111-05X40iZRT272201402-201409

main82111-05X41iZRT272201409-201505

main82115-05A10iZRT272..XI201507-201602

main82115-05A11iZRT272..XI201603-201607

main82115-05A20iZRT272..LI201507-201602

main82115-05A21iZRT272..LI201603-201607

main82115-05D70iZRT272..XI201607

main82115-05D80iZRT272..LI201607

82345DIODE

main82345-12030×2iZRT272201303-201505

main82345-12050×4iZRT272201303-201505

82345BDIODE

main82345-12030iZRT272201610

82345CDIODE

main82345-12060iZRT272201610

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12150iZRT272201107-201111

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12160iZRT272201107-201111

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12B10iZRT272201107-201111

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B20iZRT272201107-201111

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-12J30iZRT272201107-201111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0017

main90119-W0017

90178W0019

main90178-W0019
