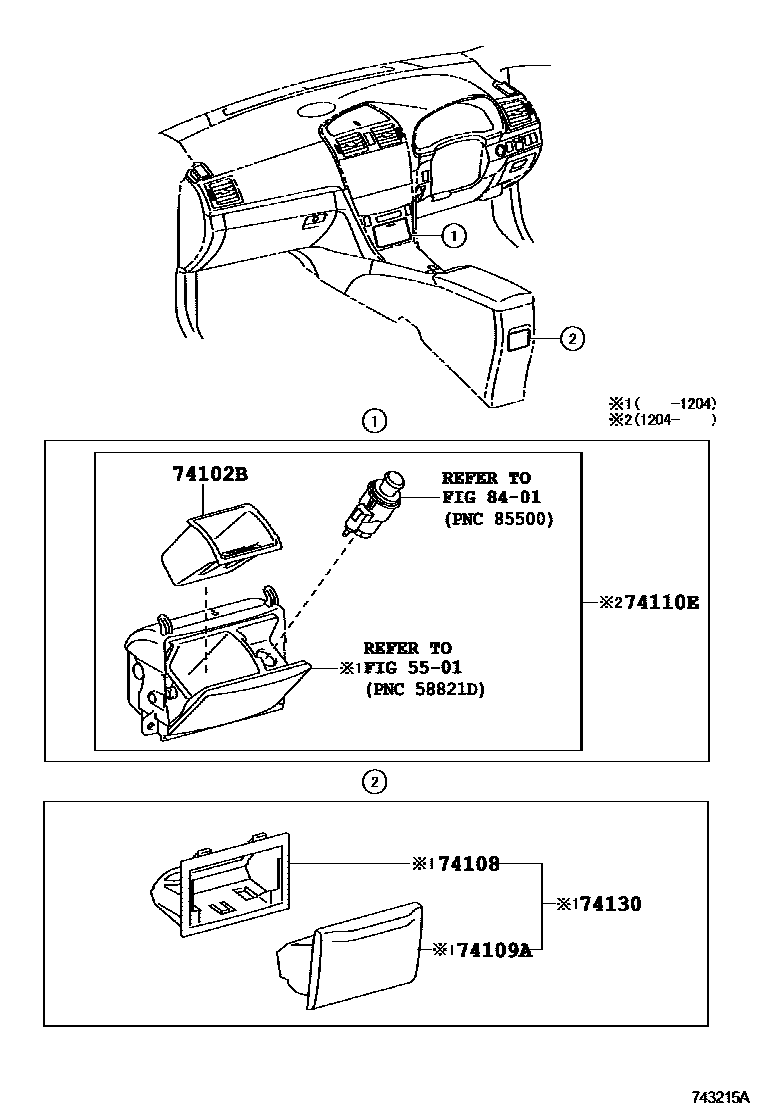

ASH RECEPTACLE

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05061iZRT272201107-201111

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iZRT272201107-201111

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-05040-C0iZRT272201107-201111

BLACK,TRIM2#

74110ERECEPTACLE ASSY, FRONT ASH

main74110-05211iZRT272..XI201202

main74110-05230iZRT272..LI201202

74130RECEPTACLE ASSY, REAR ASH

main74130-05030-C0iZRT272201107-201111

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section
