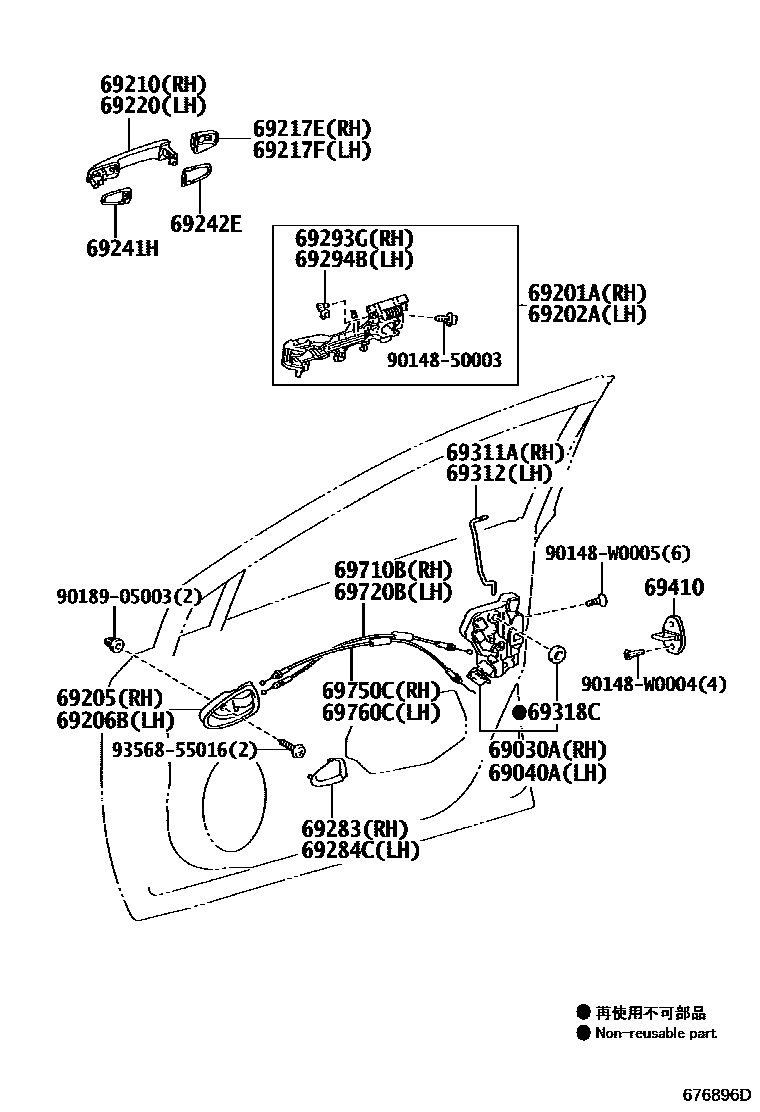

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
GREGE,TRIM4#
LT.GRAY,TRIM1#
EU BLACK,TRIM4#
EU BLACK,TRIM1#,4#
LT.GRAY,TRIM1#
EU BLACK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
GREGE,TRIM4#
LT.GRAY,TRIM1#
EU BLACK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
LT.GRAY,TRIM1#
BLACK,TRIM2#
EU BLACK,TRIM1#,4#
EU BLACK,TRIM4#
GREGE,TRIM4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
LT.GRAY,TRIM1#
BLACK,TRIM2#
EU BLACK,TRIM1#,4#
EU BLACK,TRIM4#
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9018905003
main90189-05003
9356855016
main93568-55016
29 parts on this diagram · 1 diagram in section
