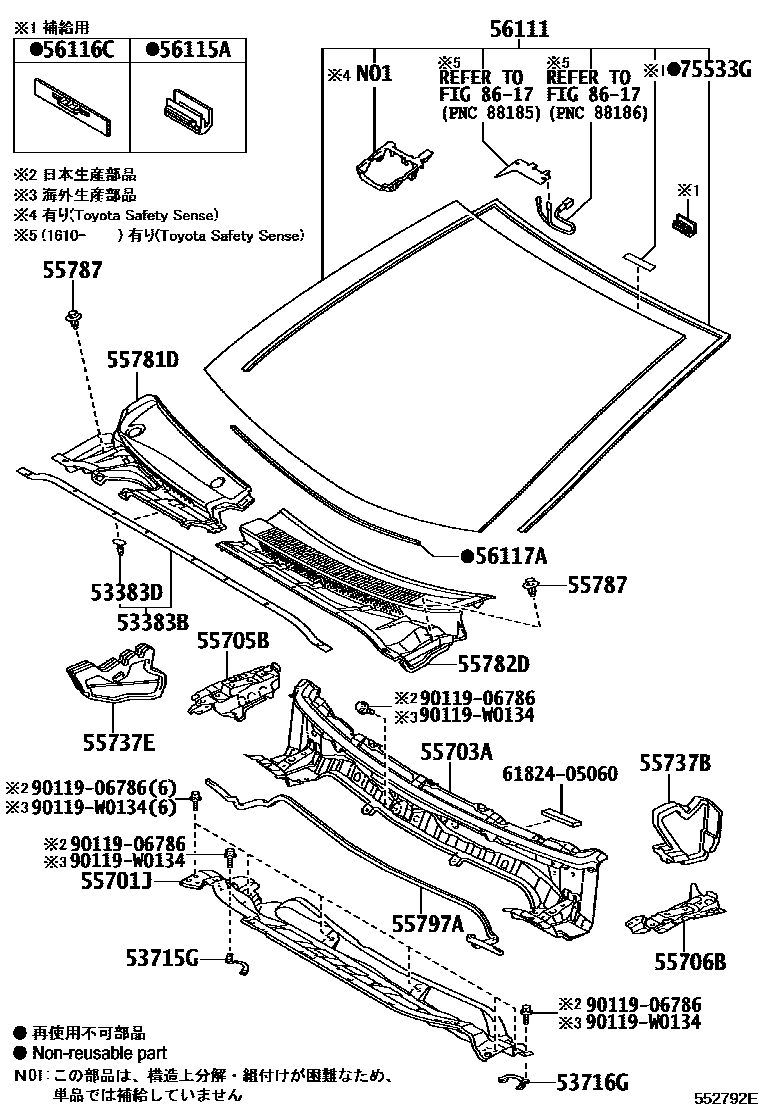

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-05050iZRT272201202-201505

main53383-05060iZRT272201507

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0F040×6iZRT272201507

main67867-12150×6iZRT272201107-201111

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-05010iZRT272201202-201505

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-05010iZRT272201107-201111

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-05040iZRT272201107-201111

main55701-05060iZRT272201507

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-05240iZRT272201202-201505

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-05040iZRT272201107-201111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-05040iZRT272201107-201111

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-05030iZRT272201107-201111

main55737-05060iZRT272201507

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-05040iZRT272201107-201111

main55737-05050iZRT272201507

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-05131iZRT272201107-201111

main55708-05170iZRT272201507

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-05100iZRT272201202-201505

main55709-05140iZRT272201507

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0×2iZRT272201202-201505

BLACK

main90467-07076-C7×2iZRT272201703

BLACK

55797ASEAL, COWL WATER EXTRACT

main55797-05020iZRT272201107-201111

main55797-05030iZRT272201507

56111GLASS, WINDSHIELD

main56101-05390iZRT272201107-201111

main56101-05420supersedes 56101-05580iZRT272..LI201202-201505

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZRT272201507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZRT272201107-201111

56117ADAM, WINDOW GLASS ADHESIVE

main56117-20300iZRT272201107-201111

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-05030iZRT272201107-201111

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

6182405060PLATE, NOISE CONTROL, NO.1

main61824-05060

9011906786

main90119-06786

90119W0134

main90119-W0134

23 parts on this diagram · 1 diagram in section
