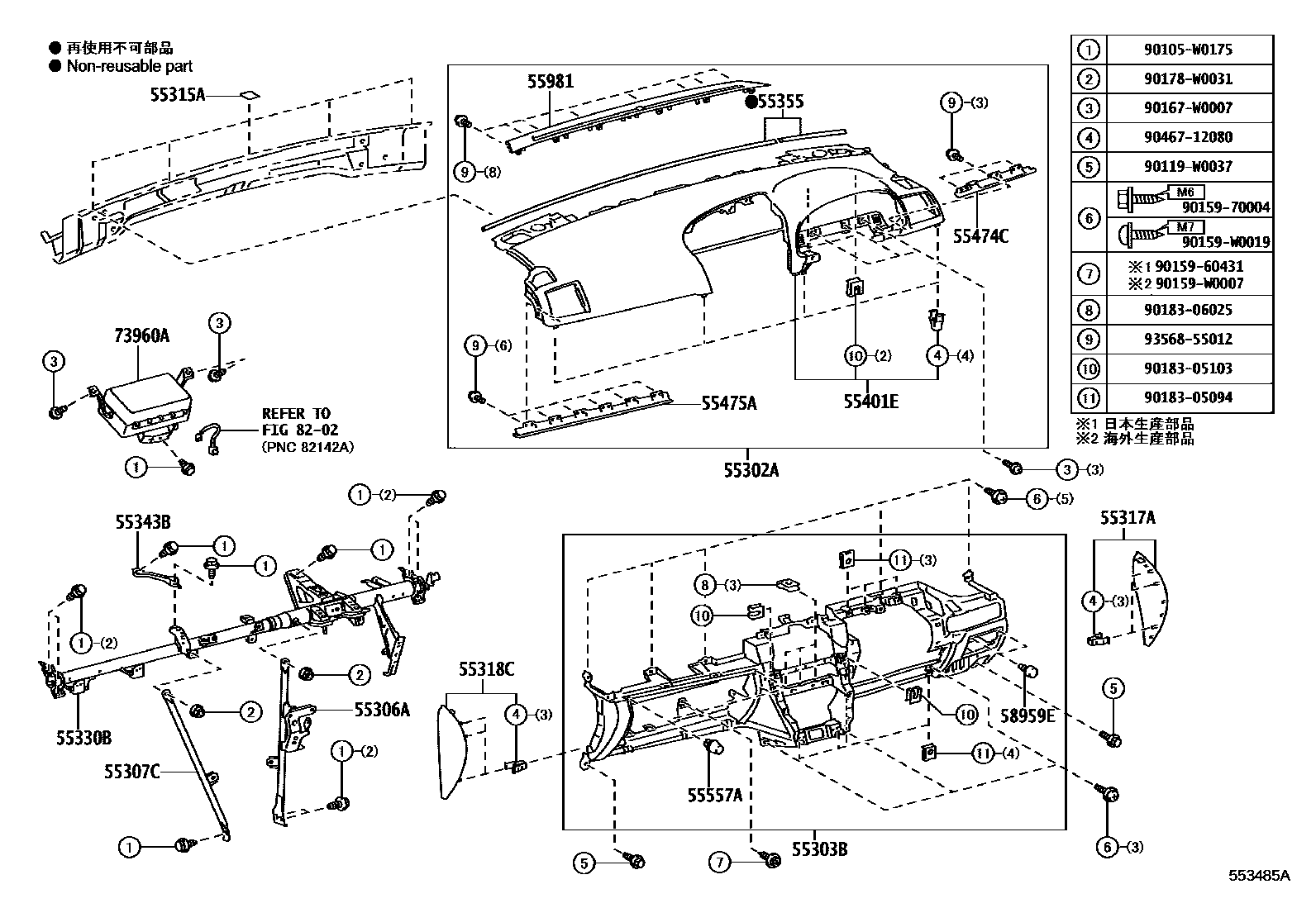

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1���������� 0008 1���������� 0009 1 0010 1��������� 0011 1����� 0012 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-05071-C0iZRT272201107-201111

BLACK,TRIM2#

main55302-05072-C0iZRT272..LI; ZRT272..XI201202-201505

BLACK,TRIM2#; BLACK,TRIM4#

main55302-05110-C0iZRT272201507

EU BLACK,TRIM1#,2#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-05040-C0iZRT272201107-201111

BLACK,TRIM2#

main55303-05060-C0iZRT272201507

EU BLACK,TRIM1#,2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05110iZRT272201107-201111

main55306-05130iZRT272201507

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-05040iZRT272201107-201111

main55307-05060iZRT272201507

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050×5iZRT272201107-201111

55317APANEL, INSTRUMENT SIDE, RH

main55317-05020-C0iZRT272201107-201111

BLACK,TRIM2#

main55317-05060-C0iZRT272201507

EU BLACK,TRIM1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-05010-C0iZRT272201107-201111

BLACK,TRIM2#

main55318-05030-C0iZRT272201507

EU BLACK,TRIM1#,2#,4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-05161iZRT272201107-201111

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02060iZRT272201202-201505

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-05060iZRT272201107-201111

main55355-05100iZRT272201507

main55355-05110iZRT272201507

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-05111-C0iZRT272..LI; ZRT272..XI201202-201505

BLACK,TRIM2#; BLACK,TRIM4#

main55401-05140-C0iZRT272201507

EU BLACK,TRIM1#,2#,4#

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-05120iZRT272201107-201111

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-05220iZRT272201107-201111

main55475-05280iZRT272..LI201507

main55475-05290iZRT272..XI201507

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-53030×2iZRT272201107-201111

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-05021-C0iZRT272201107-201111

BLACK,TRIM2#

main55981-05021-C1iZRT272201507

EU BLACK,TRIM1#,2#,4#

58959ECUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iZRT272201107-201111

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-05020iZRT272201107-201111

main73960-05021iZRT272201407-201505

main73960-05022iZRT272201507

8202WIRING & CLAMP

→ Go to FIG 82-02

90105W0175

main90105-W0175

90119W0037

main90119-W0037

9015960431

main90159-60431

9015970004

main90159-70004

90159W0007

main90159-W0007

90159W0019

main90159-W0019

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9018305094

main90183-05094

9018305103

main90183-05103

9018306025

main90183-06025

9046712080

main90467-12080

9356855012

main93568-55012

31 parts on this diagram · 12 diagrams in section
