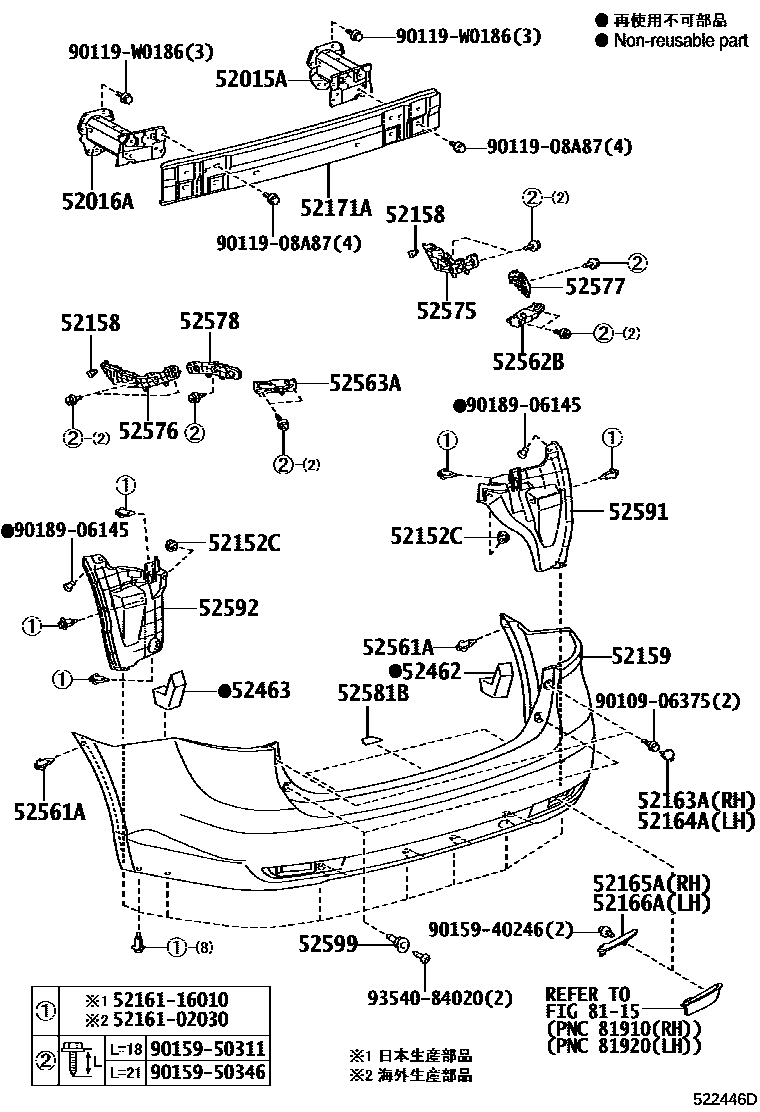

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52152CCLIP, REAR BUMPER SIDE
BLACK
52158BRACKET, REAR BUMPER
52159COVER, REAR BUMPER
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
52163APLATE, REAR BUMPER, RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
52164APLATE, REAR BUMPER, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52561ACLIP(FOR REAR BUMPER RETAINER)
DK.GRAY
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
8115REFLEX REFLECTOR
5216102030CUSHION, REAR BUMPER GUARD, NO.1
main52161-02030
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9010906375
main90109-06375
9011908A87
main90119-08A87
90119W0186
main90119-W0186
9015940246
main90159-40246
9015950311
main90159-50311
9015950346
main90159-50346
9018906145
main90189-06145
9354084020
main93540-84020
34 parts on this diagram · 2 diagrams in section
