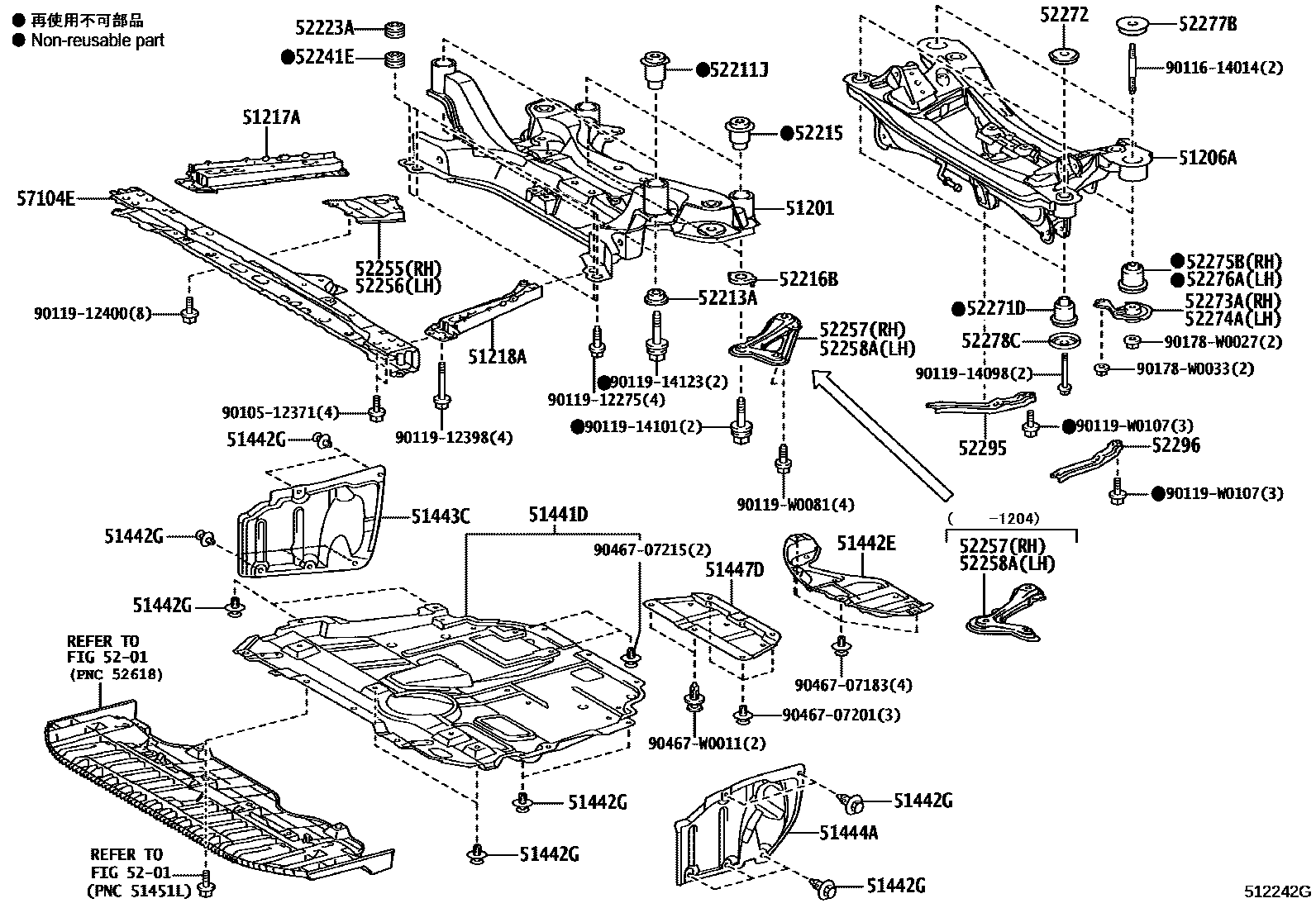

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05100iZRT272201107-201111

main51201-05101iZRT272201308-201505

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05090iZRT272201107-201111

main51206-05091iZRT272201307-201505

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-05020iZRT272201107-201111

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-05010iZRT272201107-201111

51441DCOVER, ENGINE UNDER

main51410-02180iZRT272201107-201111

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iZRT272201107-201111

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07201×19iZRT272201107-201111

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iZRT272201107-201111

main51443-05030iZRT272201411-201505

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02041iZRT272201107-201111

main51444-05020iZRT272201411-201505

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iZRT272201107-201111

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-05020×2iZRT272201107-201111

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-05020×2iZRT272201107-201111

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-05020×2iZRT272201107-201111

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-05020×2iZRT272201107-201111

52223ASPACER, CAB REAR MOUNTING, LOWER

main52223-05010×4iZRT272201107-201111

52241ECUSHION, CAB REAR MOUNTING

main52241-05010×4iZRT272201107-201111

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iZRT272201107-201111

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iZRT272201107-201111

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05031iZRT272201107-201111

main52257-05040iZRT272201202-201505

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05031iZRT272201107-201111

main52258-05040iZRT272201202-201505

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-05020×2iZRT272201107-201111

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05030×2iZRT272201107-201111

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-02010iZRT272201107-201111

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-02010iZRT272201107-201111

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-05030iZRT272201107-201111

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05030iZRT272201107-201111

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-05030×2iZRT272201107-201111

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-05010×2iZRT272201107-201111

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05030iZRT272201107-201111

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-05030iZRT272201107-201111

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iZRT272201107-201111

9010512371

main90105-12371

9011614014

main90116-14014

9011912275

main90119-12275

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0107

main90119-W0107

90178W0027

main90178-W0027

90178W0033

main90178-W0033

9046707183

main90467-07183

9046707201

main90467-07201

9046707215

main90467-07215

90467W0011

main90467-W0011

48 parts on this diagram · 1 diagram in section
