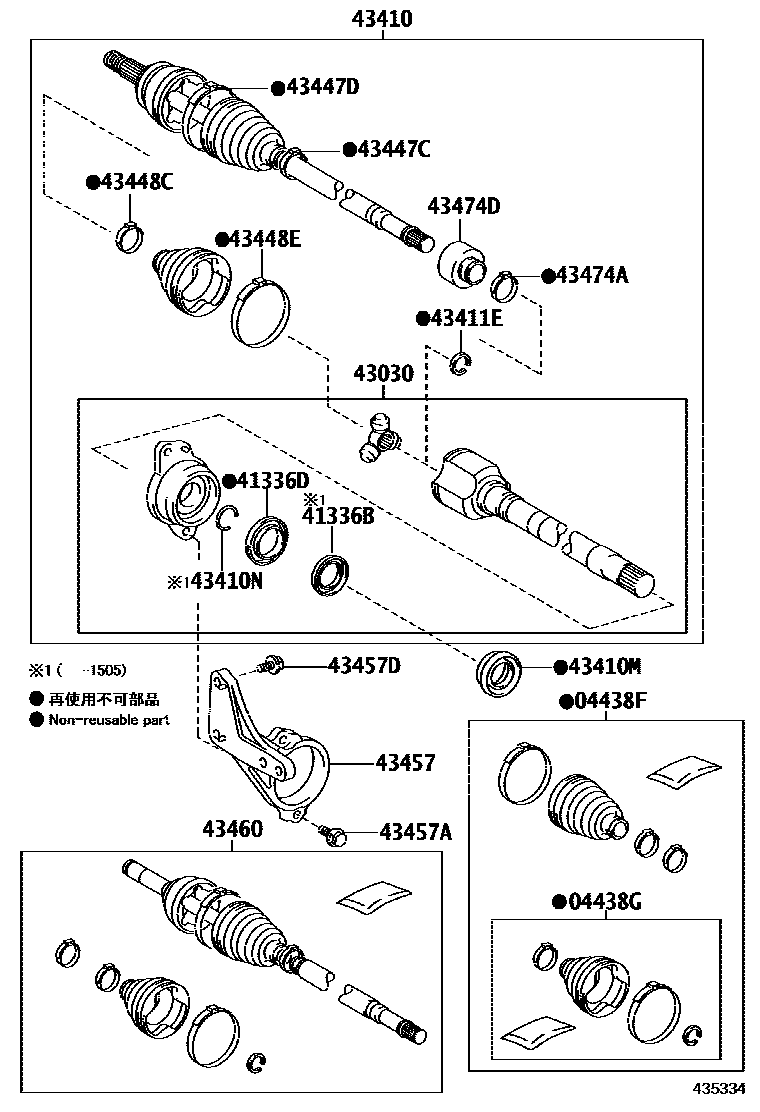

FRONT DRIVE SHAFT

0001 1��� 0002 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-05250iZRT272201507

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-05120iZRT272201107-201111

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-05080iZRT272201107-201111

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05080iZRT272201507

main43458-05020iZRT272201107-201111

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05220iZRT272201107-201111

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-05460iZRT272201107-201111

main43410-05461iZRT272201202-201505

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iZRT272201107-201111

main90311-40041iZRT272201303-201505

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52106iZRT272201107-201111

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05080iZRT272201107-201111

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iZRT272201202-201505

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05130iZRT272201202-201505

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05340iZRT272201107-201111

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05320iZRT272201107-201111

43457BRACKET, DRIVE SHAFT BEARING

main43457-20130iZRT272201507

main43457-28060iZRT272201107-201111

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iZRT272201202-201311

main90105-W0214×2iZRT272201311-201505

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iZRT272201107-201111

main90105-W0215×3iZRT272201311-201505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80206iZRT272201107-201111

main43470-8Z033iZRT272201202-201505

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-05100iZRT272201107-201111

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-05220iZRT272201107-201111

19 parts on this diagram · 2 diagrams in section
