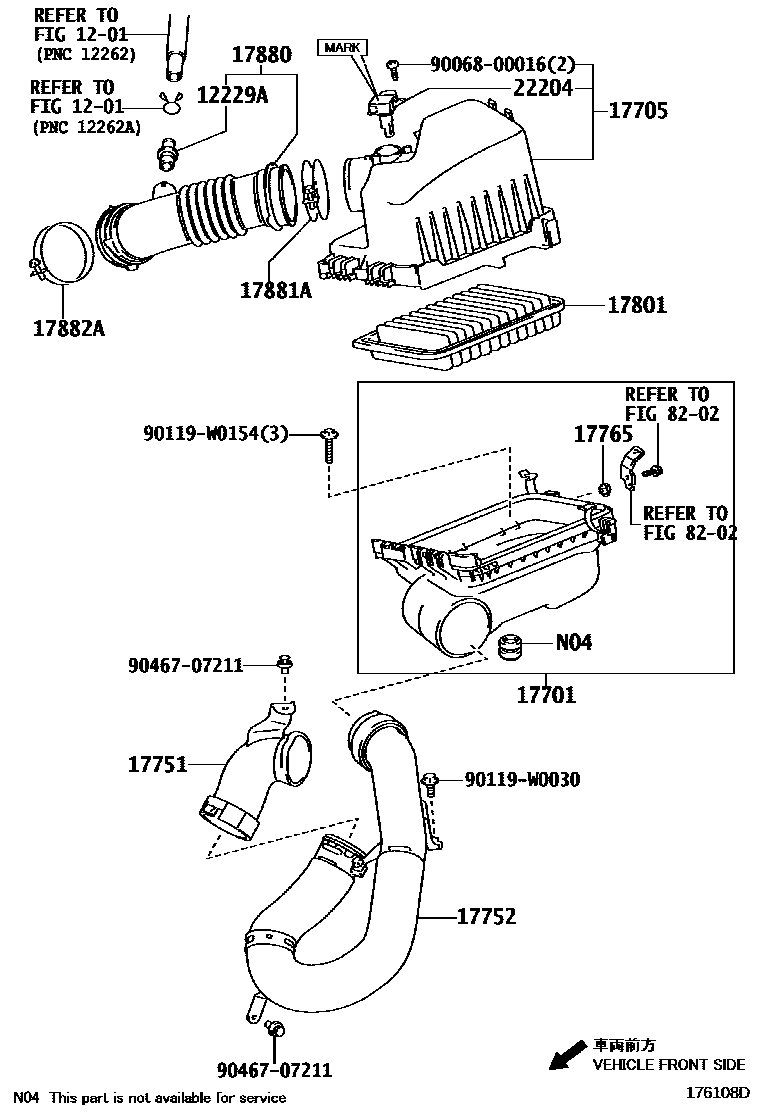

AIR CLEANER

1201

12229APIPE, VENTILATION

main12229-21010i3ZRFAE..ZRT272201107-201505

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T080i3ZRFAE..ZRT272201107-201505

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T050i3ZRFAE..ZRT272201107-201111

sub17705-0T051

main17705-0T051i3ZRFAE..ZRT272201202-201505

17751INLET, AIR CLEANER, NO.1

main17751-37020i3ZRFAE..ZRT272201107-201505

17752INLET, AIR CLEANER, NO.2

main17752-37030i3ZRFAE..ZRT272201107-201505

17765STAY, AIR CLEANER, NO.1

main17706-21010i3ZRFAE..ZRT272201107-201505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D060i3ZRFAE..ZRT272201107-201505

17880HOSE ASSY, AIR CLEANER

main17880-0T070i3ZRFAE..ZRT272201107-201505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i3ZRFAE..ZRT272201107-201505

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10780i3ZRFAE..ZRT272201107-201505

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i3ZRFAE..ZRT272201202-201505

main22204-0V020i3ZRFAE..ZRT272201202-201505

main22204-28010i3ZRFAE..ZRT272201202-201505

main22204-37010i3ZRFAE..ZRT272201107-201111

sub22204-28010

8202

9006800016

main90068-00016

90119W0030

main90119-W0030

90119W0154

main90119-W0154

9046707211

main90467-07211

17 parts on this diagram · 1 diagram in section
