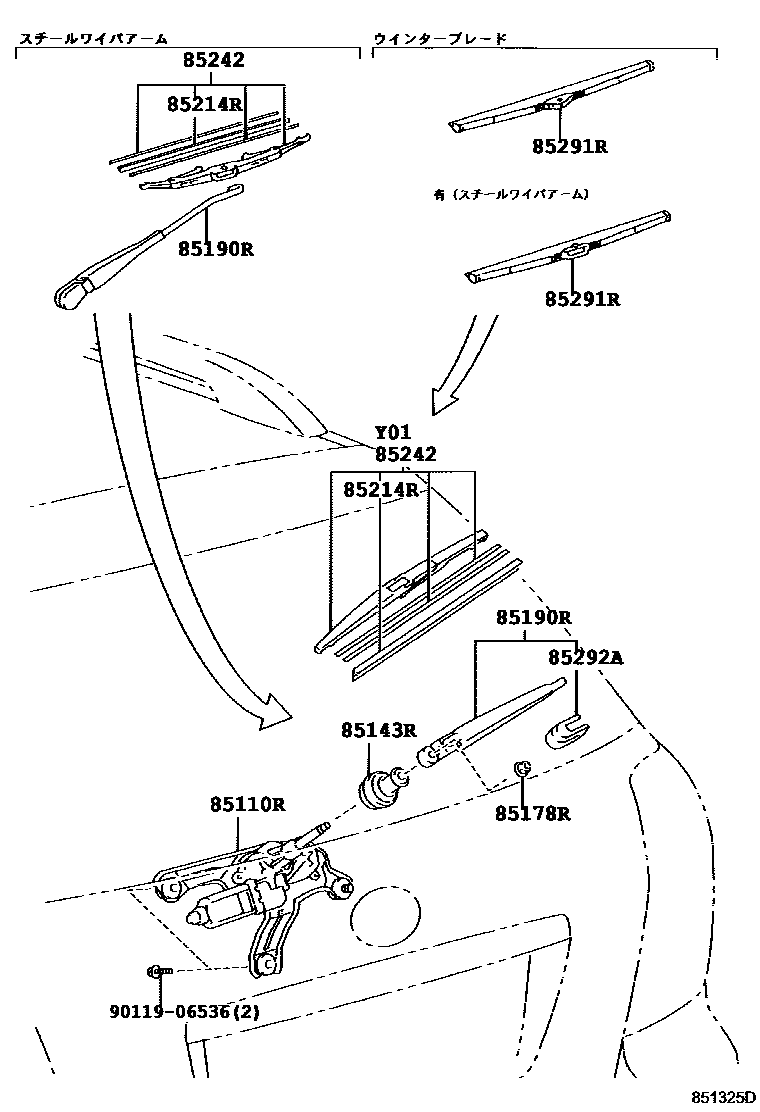

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-05100iAZT25#..WG200307-200606

85143RGROMMET, REAR WIPER MOTOR

main85143-05060iAZT25#..WG200307-200606

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAZT25#..WG200307-200606

85190RARM ASSY, REAR WIPER

main85241-05080iAZT25#..WG200307-200606

85214RRUBBER, REAR WIPER

main85214-05110iAZT25#..WG200307-200811

85242BLADE, RR WIPER

main85242-05080iAZT25#..WG200307-200811

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-02030iAZT25#..WG200307-200606

9011906536

main90119-06536

9 parts on this diagram · 1 diagram in section
