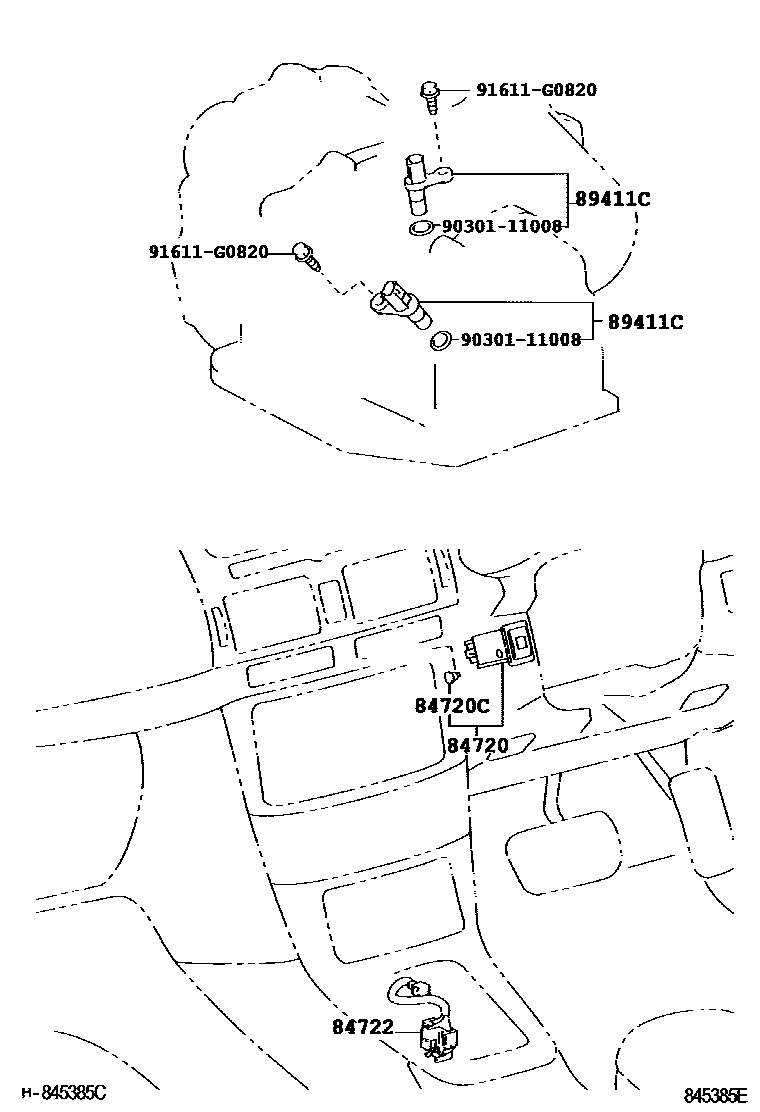

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

84720SWITCH ASSY, PATTERN SELECT

main84720-05030iAZT250,251200307-200606

84720CBULB(FOR PATTERN SELECT SWITCH)

main90011-01011iAZT250,251200307-200606

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iAZT250,251200307-200606

89411CSENSOR, SPEED

main89411-33010×2iAZT250200307-200309

main89413-20010iAZT255200309-200606

main89413-24010×2iAZT250200307-200606

main89413-48010iAZT251200506-200606

9030111008

main90301-11008

91611G0820

main91611-G0820

6 parts on this diagram · 3 diagrams in section
