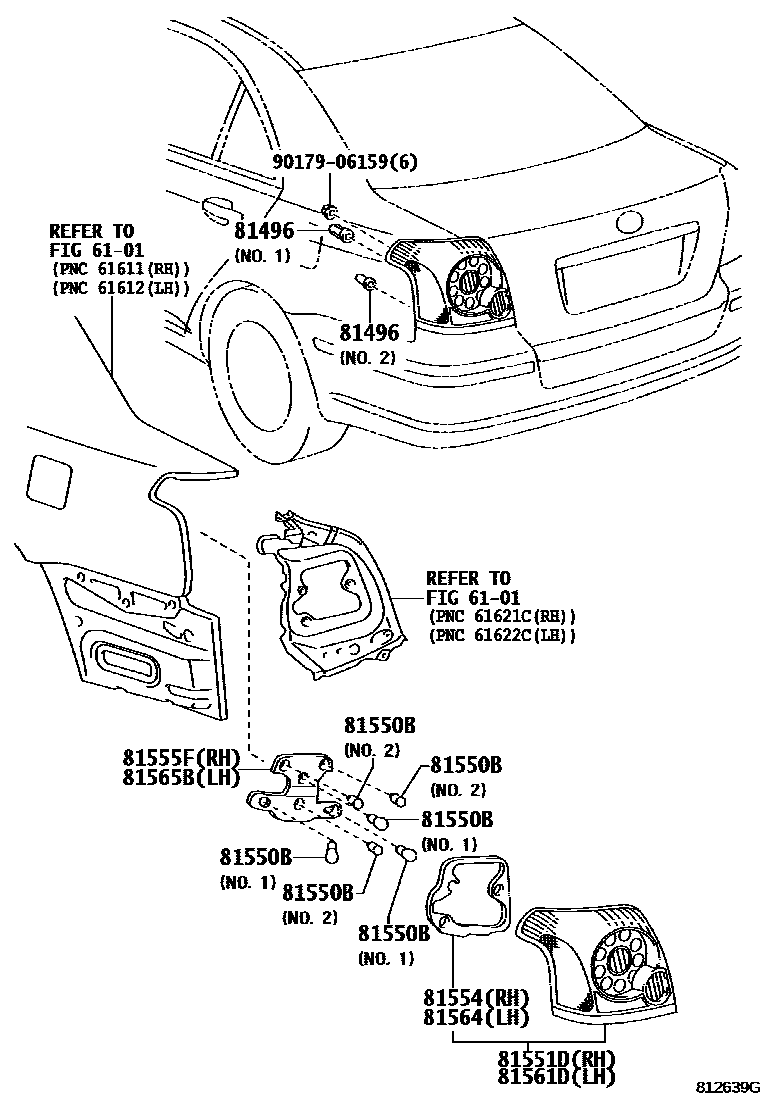

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-05010×2iAZT25#..SED200307-200606

main81496-05020×2iAZT25#..SED200307-200606

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81035×6iAZT25#..SED200307-200409

main90080-81068×6iAZT25#..SED200307-200409

main90080-81089×2iAZT25#..WG200307-200409

main90080-81090×4iAZT25#..WG200307-200409

main90981-WC003×4iAZT25#..SED200606

main90981-WC004×6iAZT25#..SED200606

main90981-WC005×2iAZT25#..WG200606

main90981-WC006×2iAZT25#..WG200606

main90981-WF006×2iAZT25#..SED; AZT25#..WG200606

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-05130iAZT25#..SED200307-200606

main81551-05170iAZT25#..WG200307-200602

main81551-05172iAZT25#..WG200602-200606

main81551-05200iAZT25#..SED200606

main81551-05230iAZT25#..WG200606

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-05130iAZT25#..SED200606-200811

main81552-05170iAZT25#..WG200307-200606

81555FHOLDER, REAR COMBINATION LAMP BULB, RH

main81555-05130iAZT25#..SED200307-200606

main81555-05190iAZT25#..SED200606

main81557-05170iAZT25#..WG200307-200606

main81557-05230iAZT25#..WG200606

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-05180iAZT25#..WG200307-200602

main81561-05182iAZT25#..WG200602-200606

main81561-05200iAZT25#..SED200307-200606

main81561-05220iAZT25#..SED200606

main81561-05250iAZT25#..WG200606

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-05130iAZT25#..SED200606-200811

main81552-05170iAZT25#..WG200307-200606

81565BHOLDER, REAR COMBINATION LAMP BULB, LH

main81558-05170iAZT25#..WG200307-200606

main81558-05230iAZT25#..WG200606

main81565-05130iAZT25#..SED200307-200606

main81565-05210iAZT25#..SED200606

9017906159

main90179-06159

10 parts on this diagram · 2 diagrams in section
