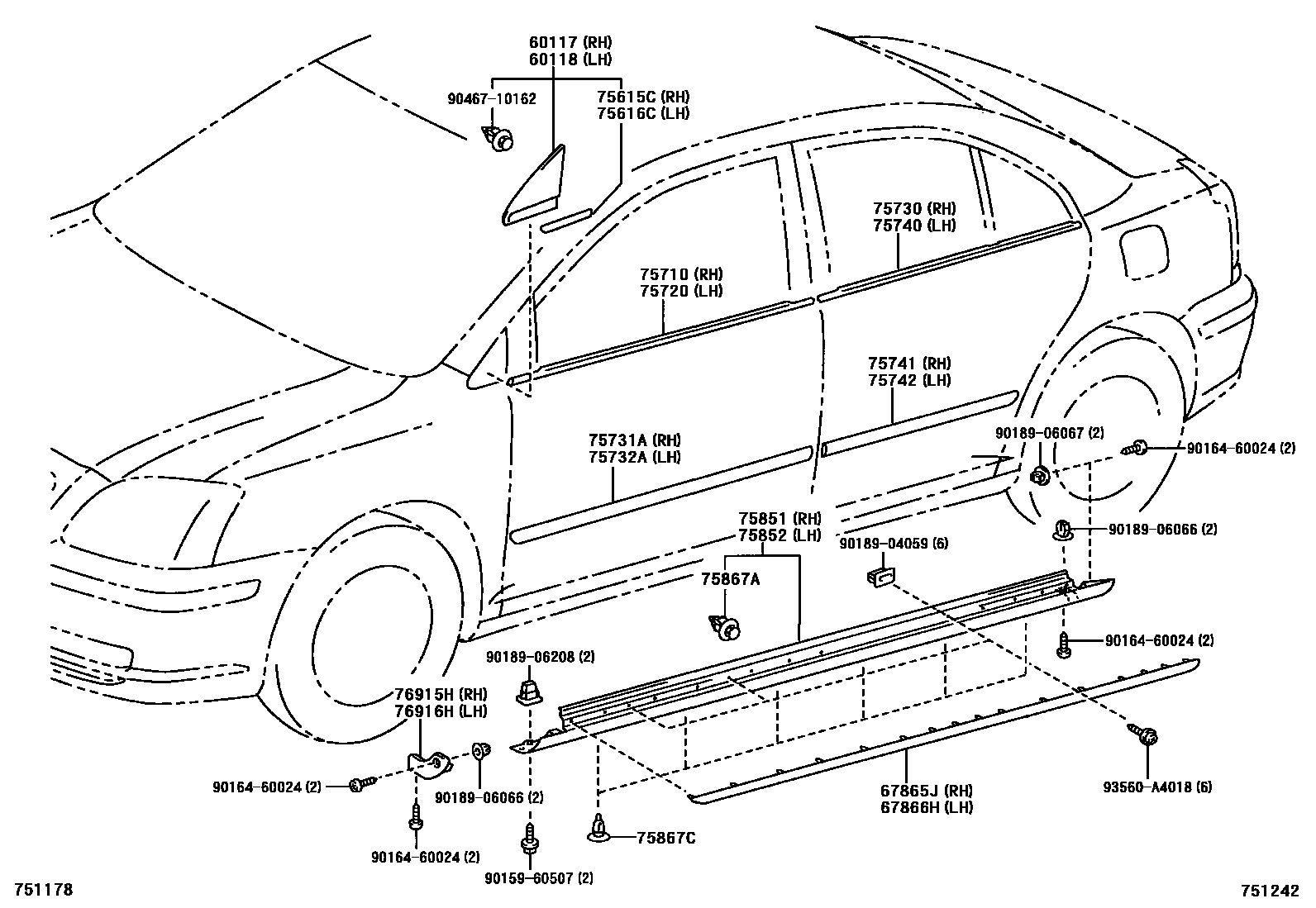

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-05010iAZT25#200606

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-05010iAZT25#200307-200606

67865JWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-05010iAZT25#200307-200606

67866HWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-05010iAZT25#200606

75615CMOULDING, FRONT FENDER, REAR RH

main75615-20050iAZT25#200307-200606

75616CMOULDING, FRONT FENDER, REAR LH

main75616-20050iAZT25#200307-200606

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-20490iAZT25#200307-200310

main75710-20491iAZT25#200310-200606

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-20490iAZT25#200307-200310

main75720-20491iAZT25#200310-200606

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-20290iAZT25#200307-200310

main75730-20291iAZT25#200310-200606

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-05100iAZT250..LI200412-200508

main75731-05100-A0iAZT250..LI200307-200412

SUPER WHITE 2,040

main75731-05100-B0iAZT251;AZT250,255..XI200307-200606

SILVER ME.,1C0

main75731-05100-C0iAZT25#..WG200606-200811

BLACK MC.,209

main75731-05100-D1iAZT251,255..SED;AZT250..SED..XI200506-200606

RED MC.,3M8

main75731-05100-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75731-05100-G1iAZT250..LI200307-200412

LT.OLIVE M.M.,6T1

main75731-05100-J0iAZT250..LI200307-200412

DK.BLUE M.M.,8P4

main75731-05100-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-05100-A0iAZT25#..SED200606-200811

SUPER WHITE 2,040

main75732-05100-B0iAZT25#200606-200811

SILVER ME.,1C0

main75732-05100-C0iAZT25#..WG200606-200811

BLACK MC.,209

main75732-05100-D1iAZT251,255..SED;AZT250..SED..XI200506-200606

RED MC.,3M8

main75732-05100-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75732-05100-G1iAZT250,255200307-200606

LT.OLIVE M.M.,6T1

main75732-05100-J0iAZT25#200307-200606

DK.BLUE M.M.,8P4

main75732-05100-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-20360iAZT25#200307-200310

main75740-20361iAZT25#200310-200606

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-05100iAZT251200506-200601

main75741-05100-A0iAZT250,255200307-200601

SUPER WHITE 2,040

main75741-05100-B0iAZT250,255200307-200601

SILVER ME.,1C0

main75741-05100-C0iAZT250,255200307-200601

BLACK MC.,209

main75741-05100-G1iAZT250,255200307-200601

LT.OLIVE M.M.,6T1

main75741-05100-J0iAZT250,255200307-200601

DK.BLUE M.M.,8P4

main75741-05101-A0iAZT25#..SED200606-200811

SUPER WHITE 2,040

main75741-05101-B0iAZT25#200606-200811

SILVER ME.,1C0

main75741-05101-C0iAZT25#..WG200606-200811

BLACK MC.,209

main75741-05101-D1iAZT25#..SED200602-200606

RED MC.,3M8

main75741-05101-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75741-05101-J0iAZT25#200602-200606

DK.BLUE M.M.,8P4

main75741-05101-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-05100iAZT251200506-200601

main75742-05100-A0iAZT250,255200307-200601

SUPER WHITE 2,040

main75742-05100-B0iAZT250,255200307-200601

SILVER ME.,1C0

main75742-05100-C0iAZT250,255200307-200601

BLACK MC.,209

main75742-05100-G1iAZT250,255200307-200601

LT.OLIVE M.M.,6T1

main75742-05100-J0iAZT250,255200307-200601

DK.BLUE M.M.,8P4

main75742-05101-A0iAZT25#..SED200606-200811

SUPER WHITE 2,040

main75742-05101-B0iAZT25#200606-200811

SILVER ME.,1C0

main75742-05101-C0iAZT25#..WG200606-200811

BLACK MC.,209

main75742-05101-D1iAZT25#..SED200602-200606

RED MC.,3M8

main75742-05101-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75742-05101-J0iAZT25#200602-200606

DK.BLUE M.M.,8P4

main75742-05101-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

75851MOULDING, ROCKER PANEL, RH

main75851-05020-A0iAZT250,255;AZT251..SED200307-200606

SUPER WHITE 2,040

main75851-05020-B0iAZT25#200606-200811

SILVER ME.,1C0

main75851-05020-C0iAZT250,255;AZT251..WG200307-200606

BLACK MC.,209

main75851-05020-D1iAZT251,255..SED;AZT250..SED..XI200506-200606

RED MC.,3M8

main75851-05020-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75851-05020-G1iAZT250,255200307-200606

LT.OLIVE M.M.,6T1

main75851-05020-J0iAZT25#200307-200606

DK.BLUE M.M.,8P4

main75851-05020-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

main75851-20230-B0iAZT250..LI200307-200508

main75851-20230-C0iAZT250..LI200307-200508

main75851-20230-G0iAZT250..LI200307-200508

main75851-20230-J0iAZT250..LI200307-200508

75852MOULDING, ROCKER PANEL, LH

main75852-05020-A0iAZT250,255;AZT251..SED200307-200606

SUPER WHITE 2,040

main75852-05020-B0iAZT25#200307-200606

SILVER ME.,1C0

main75852-05020-C0iAZT25#..WG200606-200811

BLACK MC.,209

main75852-05020-D1iAZT251,255..SED;AZT250..SED..XI200506-200606

RED MC.,3M8

main75852-05020-D2iAZT25#..SED200606-200811

MAROON MC.,3N0

main75852-05020-G1iAZT250,255200307-200606

LT.OLIVE M.M.,6T1

main75852-05020-J0iAZT25#200307-200606

DK.BLUE M.M.,8P4

main75852-05020-J1iAZT25#200606-200811

DK.BLUE MC.,8S6

main75852-20080-B0iAZT250..LI200307-200508

main75852-20080-C0iAZT250..LI200307-200508

main75852-20080-G0iAZT250..LI200307-200508

main75852-20080-J0iAZT250..LI200307-200508

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030×12iAZT25#200307-200606

75867CCLIP, ROCKER PANEL MOULDING

main75867-30110×12iAZT25#200606

76915HMUDGUARD, SIDE, FRONT RH

main76915-05010iAZT25#200307-200606

main76915-20050iAZT250..LI200307-200508

76916HMUDGUARD, SIDE, FRONT LH

main76916-05010iAZT25#200307-200606

main76916-20050iAZT250..LI200307-200508

9015960507

main90159-60507

9016460024

main90164-60024

9018904059

main90189-04059

9018906066

main90189-06066

9018906067

main90189-06067

9018906208

main90189-06208

9046710162

main90467-10162

93560A4018

main93560-A4018

28 parts on this diagram · 2 diagrams in section
