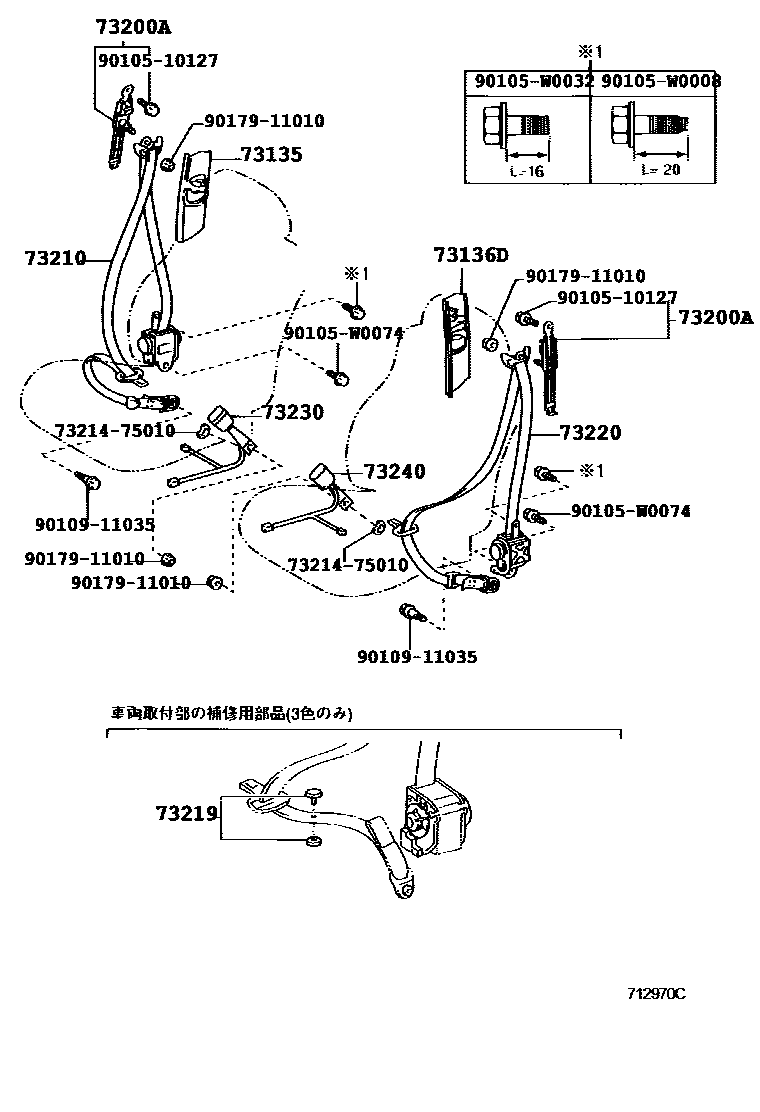

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1�� 0004 1�� 0005 1��

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73023-05010-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main73023-05010-B0iAZT25#200307-200606

LT.GRAY,TRIM1#

main73023-05010-E0iAZT251200606

GREGE,TRIM4#

73136DCOVER, SHOULDER BELT ANCHORAGE PLATE

main73024-05010-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main73024-05010-B0iAZT25#200307-200606

LT.GRAY,TRIM1#

main73024-05010-E0iAZT251200606

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-05030iAZT25#200307-200606

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-05070-A0iAZT250..LI200307-200407

IVORY,TRIM0#

sub73210-05071

main73210-05070-C0iAZT25#200307-200407

BLACK,TRIM1#

sub73210-05071

main73210-05071-A0iAZT250..LI;AZT251..SED200408-200606

IVORY,TRIM0#

main73210-05071-C0iAZT25#200408-200606

BLACK,TRIM1#

main73210-05071-E0iAZT251200606

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iAZT25#200307-200606

main73219-33020iAZT25#200307-200606

main73219-33030iAZT25#200307-200606

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-05050-A1iAZT250..LI200307-200407

IVORY,TRIM0#

sub73220-05051

main73220-05050-C0iAZT25#200307-200407

BLACK,TRIM1#

sub73220-05051

main73220-05051-A1iAZT250..LI;AZT251..SED200408-200606

IVORY,TRIM0#

main73220-05051-C0iAZT25#200408-200606

BLACK,TRIM1#

main73220-05051-E0iAZT251200606

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-05040-A0iAZT250..LI200307-200409

IVORY,TRIM0#

sub73230-05041

main73230-05040-B0iAZT25#200307-200409

DK.GRAY,TRIM1#

sub73230-05041

main73230-05041-A0iAZT250..LI200409-200508

IVORY,TRIM0#

main73230-05041-B0iAZT250,255200409-200606

DK.GRAY,TRIM1#

main73230-05061-A0iAZT251..QI;AZT251..SED..LI200506-200606

IVORY,TRIM0#

main73230-05061-B0iAZT251..WG;AZT251..SED..QI200506-200606

DK.GRAY,TRIM1#

main73230-05061-E0iAZT251200606

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-05050-A0iAZT250..LI200307-200409

IVORY,TRIM0#

sub73230-05051

main73230-05050-B0iAZT25#200307-200409

DK.GRAY,TRIM1#

sub73230-05051

main73230-05051-A0iAZT250..LI200409-200508

IVORY,TRIM0#

main73230-05051-B0iAZT250,255200409-200606

DK.GRAY,TRIM1#

main73230-05071-A0iAZT251..SED200506-200606

IVORY,TRIM0#

main73230-05071-B0iAZT251..WG;AZT251..SED..QI200506-200606

DK.GRAY,TRIM1#

main73230-05071-E0iAZT251200606

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510127

main90105-10127

90105W0008

main90105-W0008

90105W0032

main90105-W0032

90105W0074

main90105-W0074

9010911035

main90109-11035

9017911010

main90179-11010

15 parts on this diagram · 4 diagrams in section
