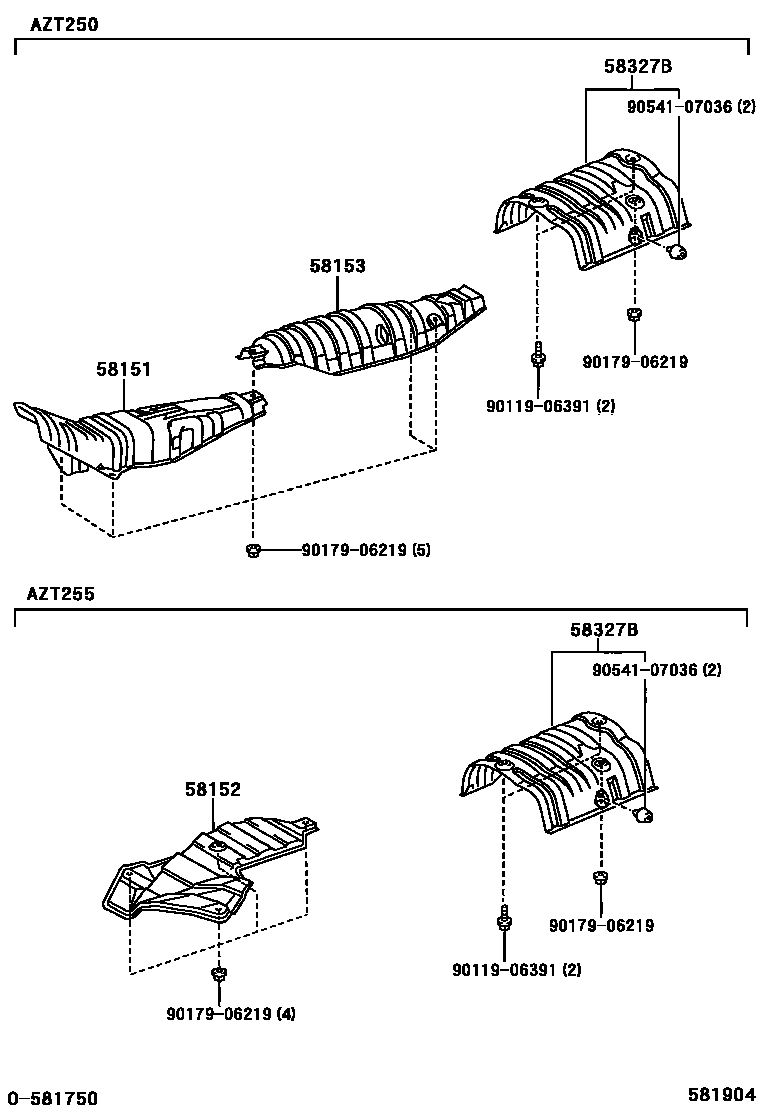

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-20060iAZT250,251..LI,QI200307-200606

main58151-20190iAZT250..XI200307-200606

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-32060iAZT255200309-200606

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-05030iAZT250,251200307-200606

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20150iAZT25#200307-200606

9011906391

main90119-06391

9017906219

main90179-06219

9054107036

main90541-07036

7 parts on this diagram · 2 diagrams in section
