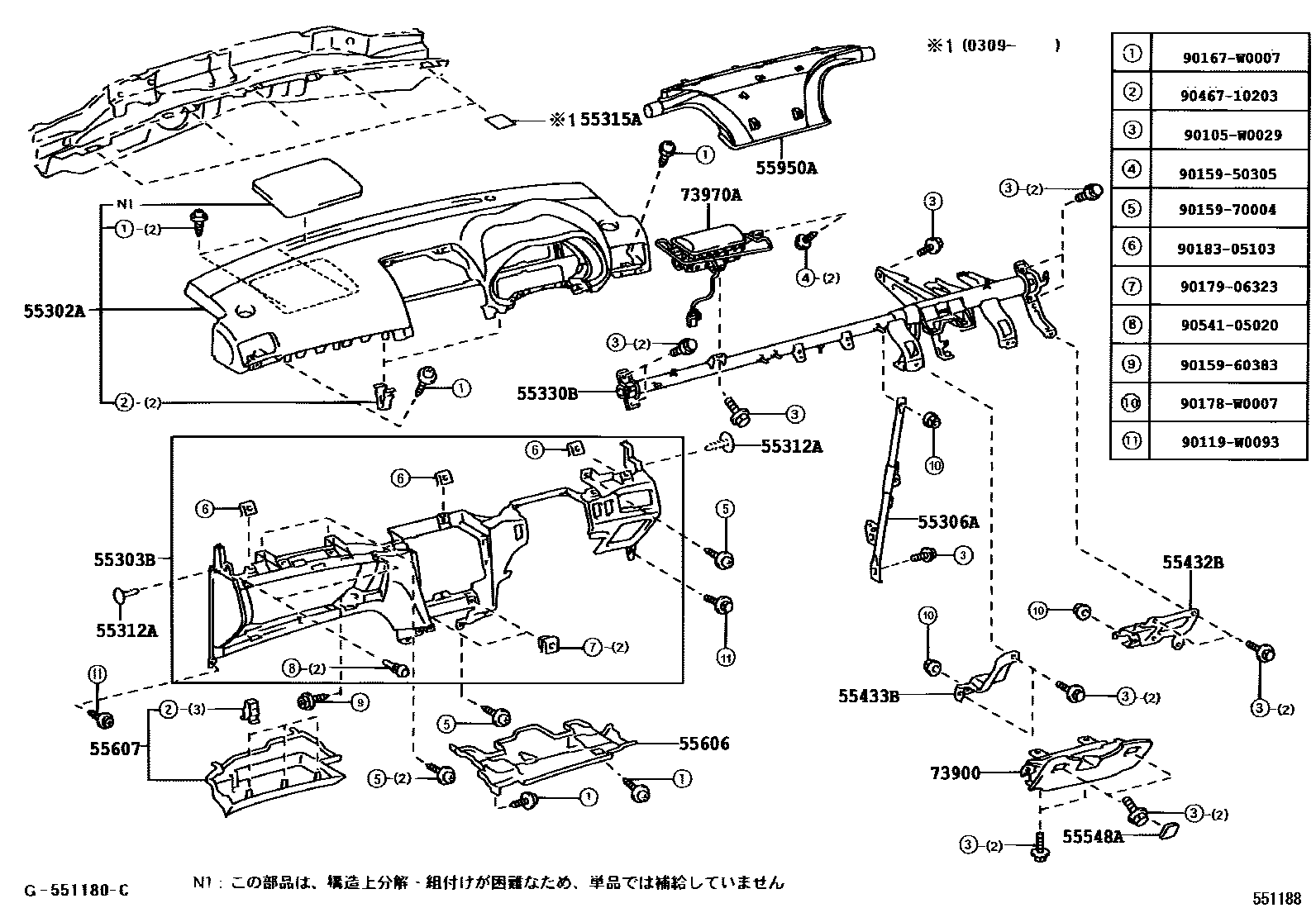

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-05020-B0iAZT250..LI;AZT251..SED; AZT251..WG;AZT250,255..XI200307-200606

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

main55302-05021-B0iAZT250,255; AZT251200708

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-05021-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main55303-05021-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main55303-05021-E0iAZT251200606

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05090iAZT25#200307-200606

55312ACLIP, INSTRUMENT PANEL

main90467-05161-A0×2iAZT250..LI200307-200508

IVORY,TRIM0#

main90467-05161-B0×2iAZT250,255200307-200606

DK.GRAY,TRIM1#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050×5iAZT25#200309-200606

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-05120iAZT25#200307-200501

main55330-05121iAZT25#200502-200606

main55330-05140iAZT25#200606

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20400iAZT25#200307-200606

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20180iAZT25#200307-200606

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-05030-A0×2iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main55548-05030-B0×2iAZT25#200606

DK.GRAY,TRIM1#

main55548-05030-E0×2iAZT251200606

GREGE,TRIM4#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-05040iAZT25#200307-200606

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-05020iAZT25#200307-200606

55950ANOZZLE ASSY, DEFROSTER

main55950-05070iAZT25#200307-200606

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-05020-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main73900-05020-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main73900-05020-E0iAZT251200606

GREGE,TRIM4#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-05090iAZT25#200307-200606

90105W0029

main90105-W0029

90119W0093

main90119-W0093

9015950305

main90159-50305

9015960383

main90159-60383

9015970004

main90159-70004

90167W0007

main90167-W0007

90178W0007

main90178-W0007

9017906323

main90179-06323

9018305103

main90183-05103

9046710203

main90467-10203

9054105020

main90541-05020

25 parts on this diagram · 5 diagrams in section
