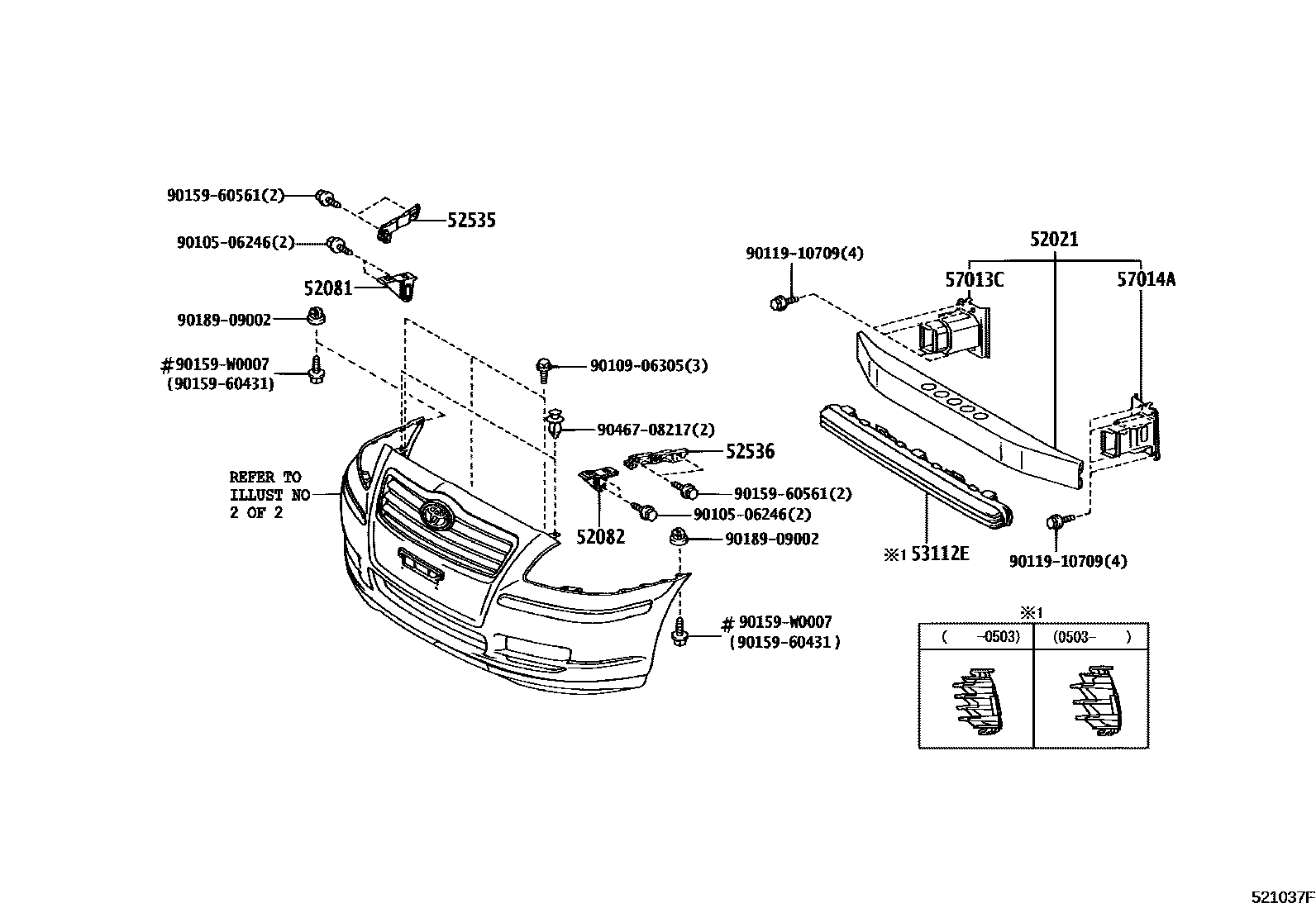

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-05040iAZT25#200606

52081STAY SUB-ASSY, FRONT BUMPER

main52081-05010iAZT25#200307-200606

main52081-05020iAZT25#200606

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52082-05010iAZT25#200307-200606

main52082-05020iAZT25#200606

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-05020iAZT25#200307-200606

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-05020iAZT25#200307-200606

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-05050iAZT25#200307-200503

main53112-05051iAZT25#200503-200606

main53112-05060iAZT25#200606-200811

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-05020iAZT25#200307-200606

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-05020iAZT25#200307-200606

9010506246

main90105-06246

9010906305

main90109-06305

9011910709

main90119-10709

9015960431

main90159-60431

9015960561

main90159-60561

90159W0007

main90159-W0007

9018909002

main90189-09002

9046708217

main90467-08217

16 parts on this diagram · 4 diagrams in section
