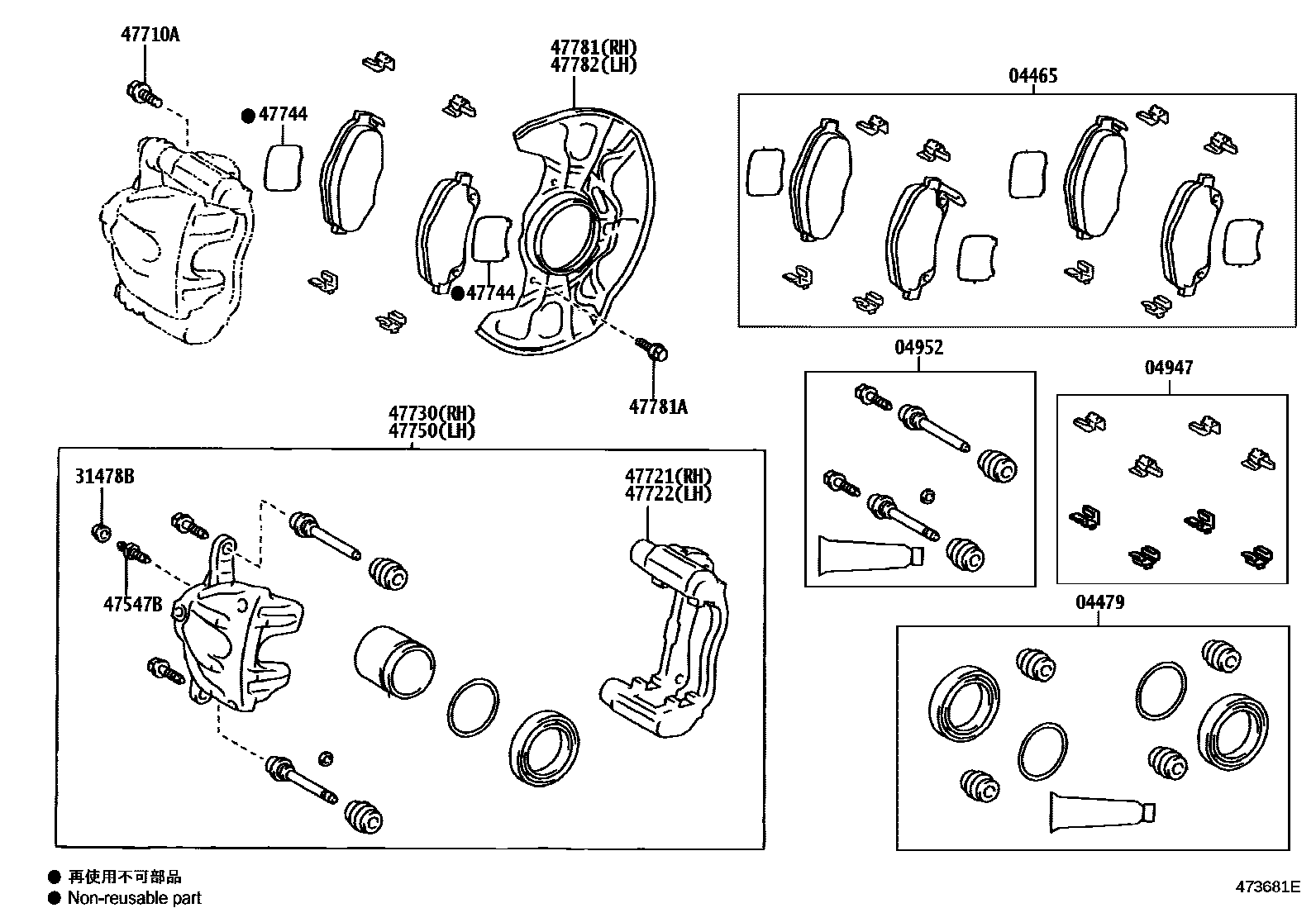

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-05131iAZT25#200307-200310

sub04465-05210

main04465-05150iAZT25#200310-200311

main04465-05170iAZT25#200311-200506

main04465-05220iAZT25#200506-200507

sub04465-05221

main04465-05221iAZT25#200507-200809

sub04465-05280

main04465-05280iAZT25#200809

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-05020iAZT25#200310-200311

sub04478-05050

main04478-05050iAZT25#200311-200408

sub04478-05090

main04478-05090iAZT25#200408-200606

main04479-05050iAZT25#200307-200310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-05040iAZT25#200307-200809

sub04947-05050

main04947-05050iAZT25#200809-200811

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-09020iAZT25#200307-200606

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-05030iAZT25#200307-200606

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05020iAZT25#200307-200606

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAZT25#200307-200606

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-05060iAZT25#200307-200606

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-05030iAZT25#200307-200606

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-05060iAZT250,255200307-200606

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-05060iAZT25#200307-200311

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-05060iAZT251200307-200606

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-05030iAZT25#200307-200606

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iAZT25#200307-200606

main90119-06227iAZT25#200307-200606

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-05030iAZT25#200307-200606

15 parts on this diagram · 2 diagrams in section
