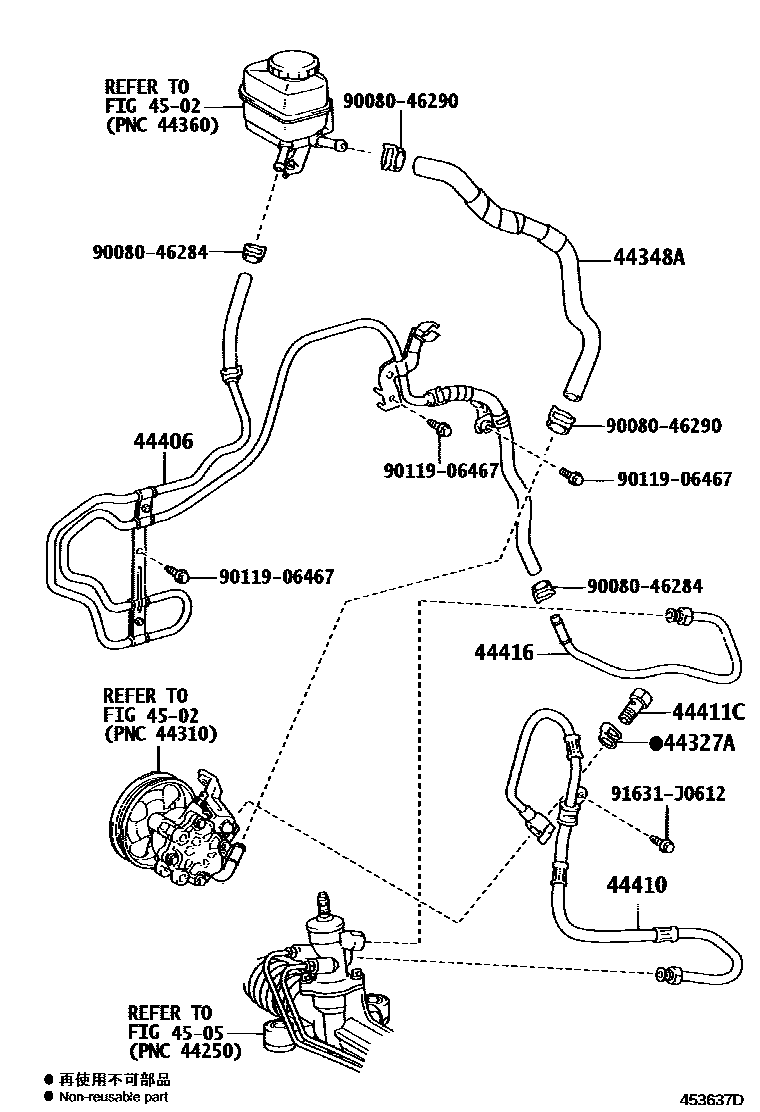

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAZT25#200606

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-05100iAZT25#200307-200606

44406TUBE SUB-ASSY, RETURN

main44406-05200iAZT250,251200606

main44406-05220iAZT255200309-200606

44410TUBE ASSY, PRESSURE FEED

main44410-05250iAZT250,251200307-200606

main44410-05280iAZT255200309-200606

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iAZT25#200307-200606

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-05020iAZT250,251200307-200606

main44416-05030iAZT255200309-200606

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9008046284

main90080-46284

9008046290

main90080-46290

9011906467

main90119-06467

91631J0612

main91631-J0612

12 parts on this diagram · 2 diagrams in section
