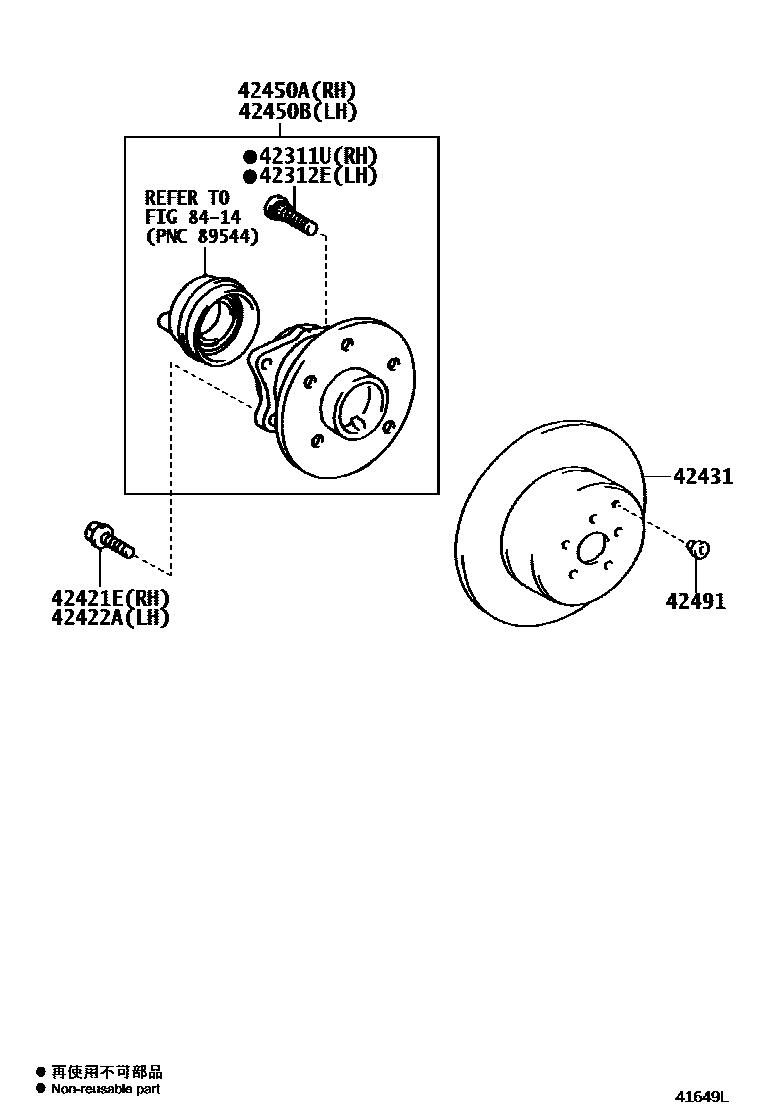

REAR AXLE SHAFT & HUB

0001 1 0002 1��� 0003 1��� 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAZT25#200307-200606

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAZT25#200307-200606

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-W0064×4iAZT25#200606

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-W0064×4iAZT25#200307-200606

42431DISC, REAR

main42431-05030×2iAZT25#200307-200606

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-32100iAZT255200606

main42450-05040iAZT250,251200606

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-32100iAZT255200309-200606

main42450-05040iAZT250,251200307-200606

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010×2iAZT25#200307-200606

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 4 diagrams in section
