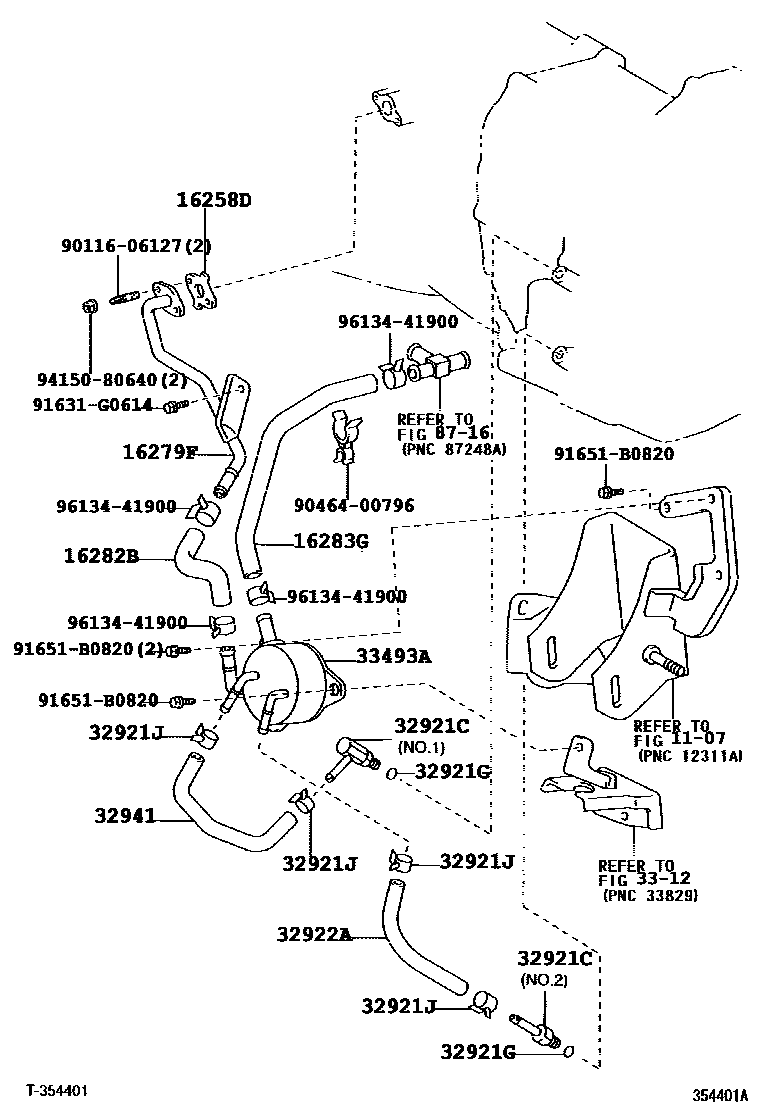

OIL COOLER & TUBE (ATM)

0001 1U241E 0002 1A248F 0003 1U151E

1107MOUNTING

→ Go to FIG 11-07

16258DGASKET(FOR WATER BY-PASS PIPE)

main16258-28021i1AZFSE..AZT250200307-200308

main16258-28040i1AZFSE,2AZFSE..AZT25#200606

16279FPIPE, WATER BY-PASS, NO.3

main16279-28020i1AZFSE..AZT250,255200606

main16279-28070i2AZFSE..AZT251200506-200606

16282BHOSE, WATER BY-PASS, NO.5

main16282-28070i1AZFSE..AZT250,255200307-200606

main16282-28080i2AZFSE..AZT251200606

16283GHOSE, WATER BY-PASS, NO.6

main16283-28060i1AZFSE..AZT250200307-200606

main16283-28070i1AZFSE..AZT255200606

main16283-28080i2AZFSE..AZT251200606

32921TUBE, OIL COOLER INLET, NO.1

main32921-20580iAZT255200309-200606

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iAZT250,251200606

main90404-16032×2iAZT255200309-200606

main90407-13009iAZT250,251200606

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAZT250,251200307-200606

main90301-11006×2iAZT255200309-200606

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×4iAZT25#200307-200606

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20580iAZT255200309-200606

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17069iAZT250,251200307-200606

32941HOSE, OIL COOLER INLET, NO.1

main32941-20280iAZT255200309-200606

main32941-20290iAZT251200606

main32941-20300iAZT250200307-200606

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-20070iAZT255200606

main33493-20080iAZT251200506-200606

main33493-20090iAZT250200606

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

9046400796

main90464-00796

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9415080640

main94150-80640

9613441900

main96134-41900

21 parts on this diagram · 3 diagrams in section
