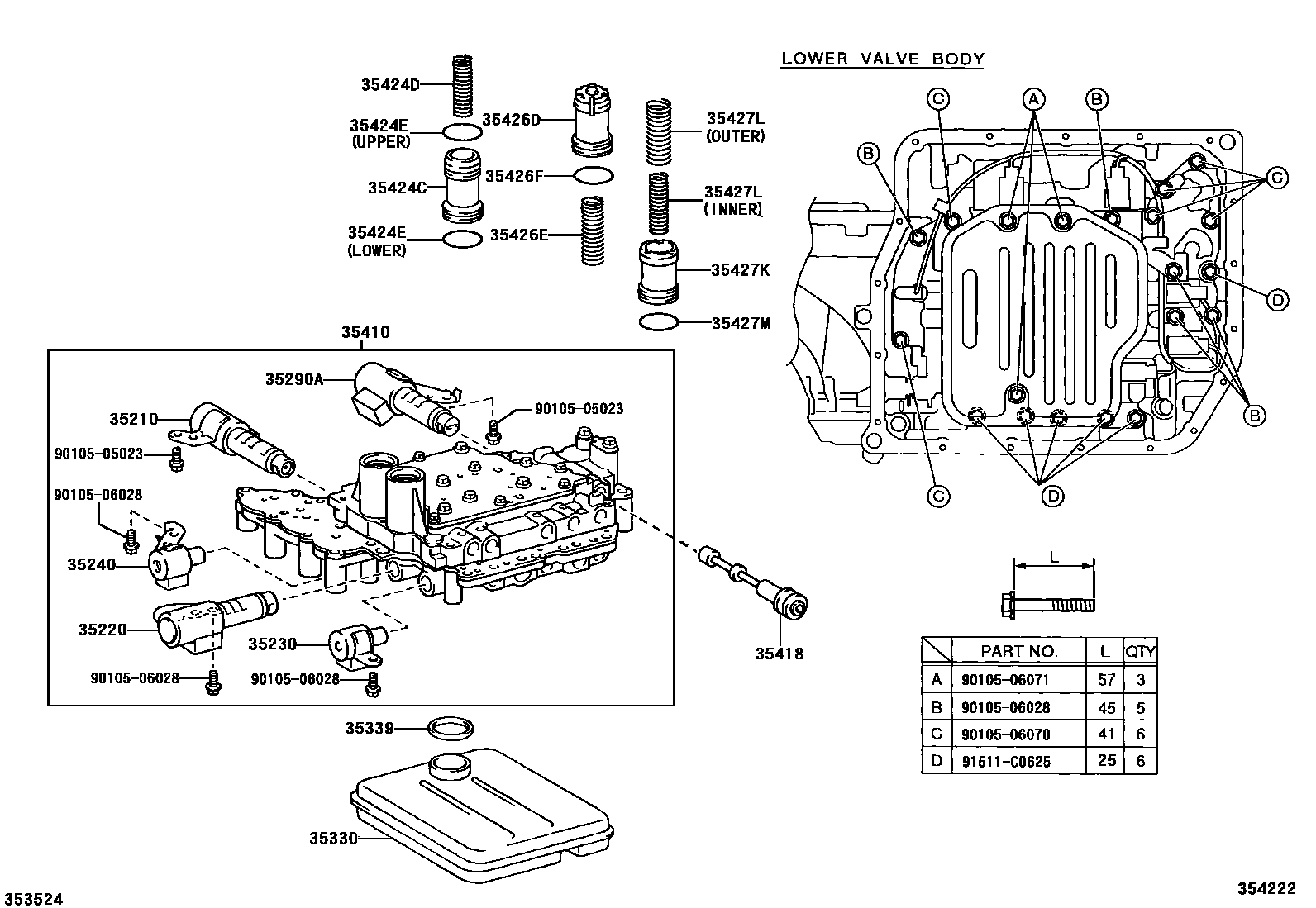

VALVE BODY & OIL STRAINER (ATM)

0001 1U241E 0002 1A248F 0003 1U151E 0004 1U151E,U241E 0006 1A248F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-21010iAZT250200307-200606

main35210-33020iAZT251200506-200606

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-21010iAZT250200307-200606

main35220-33020×2iAZT251200506-200606

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-21010iAZT250200307-200606

main35230-33010iAZT251200606

main35230-33020iAZT251200506-200606

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iAZT250200307-200606

main35240-33030iAZT251200606

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33020iAZT251200506-200606

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-12030iAZT255200606

main35290-32010iAZT250200307-200606

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iAZT250200307-200606

main35330-08010iAZT251200506-200606

main35330-12040iAZT255200606

35339GASKET, OIL STRAINER

main35339-12020iAZT255200309-200606

main90301-32010iAZT250200606

main90301-32012iAZT251200506-200606

35410BODY ASSY, TRANSMISSION VALVE

main35410-20500iAZT250200606

main35410-33130iAZT251200506-200606

main35410-33131iAZT251200701

main35410-44050iAZT255200606

35418VALVE, MANUAL

main35418-21011iAZT250200307-200606

main35418-33010iAZT251200506-200606

35424CPISTON, C-1 ACCUMULATOR

main35424-12050iAZT255200606

main35424-21010iAZT250200307-200606

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-22039iAZT250200307-200606

main90501-22058iAZT255200309-200606

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23010iAZT255200606

main90301-27008iAZT250200606

main90301-29011iAZT255200309-200606

main90301-30007iAZT250200307-200606

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iAZT250,251200606

main35423-12020iAZT255200309-200606

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-22034iAZT255200606

main90501-22056iAZT251200606

main90905-01035iAZT250200606

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-21012iAZT255200606

main90301-29011iAZT255200606

main90301-30007iAZT250,251200307-200606

35427KPISTON, B-3 ACCUMULATOR

main35427-21010iAZT250200307-200606

main35427-28010iAZT251200506-200606

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90501-19037iAZT251200606

main90501-22038iAZT250200606

main90501-25053iAZT250200307-200606

main90501-26096iAZT251200606

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-28008iAZT250,251200606

9010505023

main90105-05023

9010506028

main90105-06028

9010506070

main90105-06070

9010506071

main90105-06071

91511C0625

main91511-C0625

24 parts on this diagram · 5 diagrams in section
