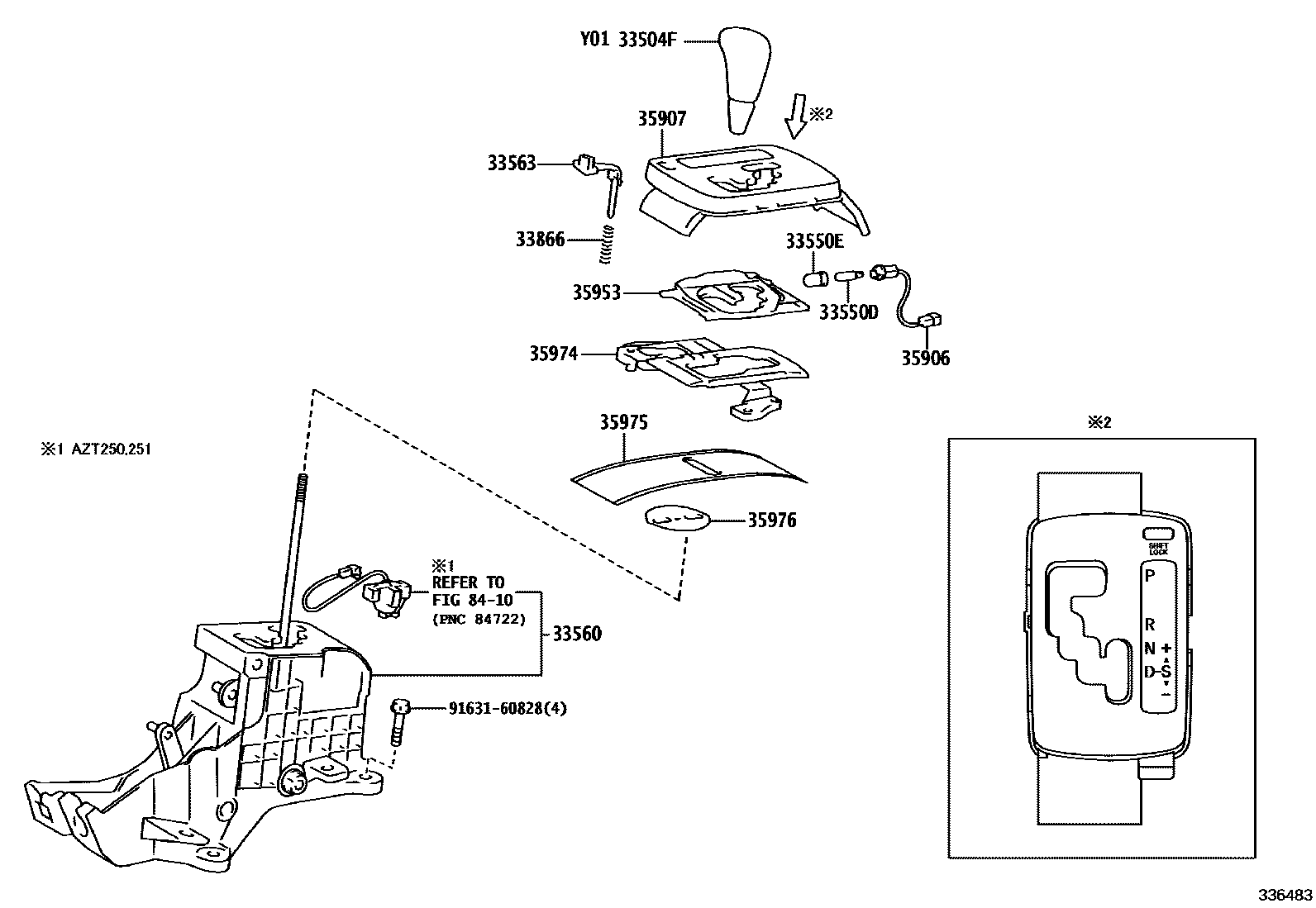

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05030-B0iAZT251; AZT255200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main33504-22170-B1iAZT250200606

DK.GRAY,TRIM1#

main33504-30281-B1iAZT250..LI200307-200308

33550DBULB, POSITION INDICATOR LAMP

main90981-30001iAZT25#200307-200606

33550ECAP, POSITION INDICATOR LAMP

main90339-04071iAZT25#200606

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-20120iAZT250,251200307-200606

main33560-20130iAZT255200309-200606

33563BUTTON, SHIFT LOCK RELEASE

main33563-20180iAZT25#200606

33866SPRING, SHIFT LOCK RELEASE

main33866-33010iAZT25#200307-200606

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20130iAZT250,251200307-200606

main35906-20140iAZT255200309-200606

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-20250iAZT250,251..LI,QI200307-200606

main35907-20260iAZT250200606

main35907-20280iAZT255200309-200606

35953GUIDE, POSITION INDICATOR LIGHT

main35953-20020iAZT250,251200307-200606

main35953-20030iAZT255200309-200606

35974HOUSING, POSITION INDICATOR, LOWER

main35974-20271iAZT25#200606

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-20240iAZT25#200307-200606

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-20160iAZT25#200307-200606

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9163160828

main91631-60828

14 parts on this diagram · 2 diagrams in section
