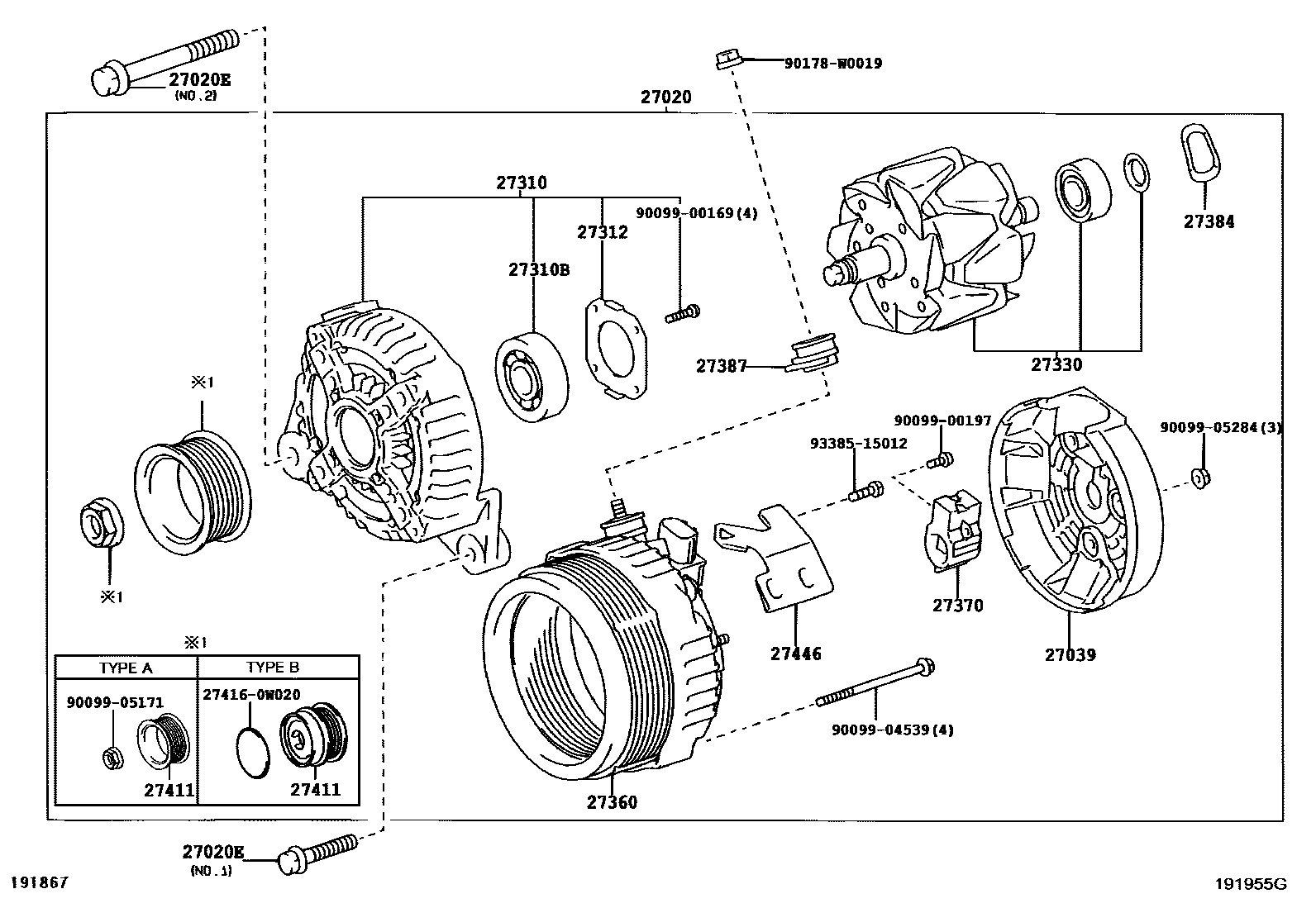

ALTERNATOR

27020ALTERNATOR ASSY

main27060-28260i1AZFSE,2AZFSE..AZT25#200307-200606

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i1AZFSE,2AZFSE..AZT25#200307-200607

main91512-81085i1AZFSE,2AZFSE..AZT25#200307-200606

main91551-80840i1AZFSE,2AZFSE..AZT25#200608

27039COVER, ALTERNATOR REAR END

main27039-27060i1AZFSE,2AZFSE..AZT25#200307-200811

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-28120i1AZFSE,2AZFSE..AZT25#200307-200606

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1AZFSE,2AZFSE..AZT25#200307-200608

sub90099-10223

main90099-10223i1AZFSE,2AZFSE..AZT25#200609

27312PLATE, RETAINER

main27312-72100i1AZFSE,2AZFSE..AZT25#200307-200606

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1AZFSE,2AZFSE..AZT25#200307-200606

27360COIL ASSY, ALTERNATOR

main27360-28200i1AZFSE,2AZFSE..AZT25#200307-200606

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1AZFSE,2AZFSE..AZT25#200307-200606

27384WASHER

main27384-50030i1AZFSE,2AZFSE..AZT25#200606

27387INSULATOR, TERMINAL

main27387-20130i1AZFSE,2AZFSE..AZT25#200307-200606

27411PULLEY, ALTERNATOR

main27411-28060i1AZFSE,2AZFSE..AZT25#200307-200606

main27411-28060i1AZFSE,2AZFSE..AZT25#200606

main27415-0W090i1AZFSE,2AZFSE..AZT25#200307-200606

sub27415-0W091

27446CLIP, ALTERNATOR CORD

main27446-28120i1AZFSE,2AZFSE..AZT25#200307-200606

274160W020CAP, ALTERNATOR PULLEY

main27416-0W020

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

90178W0019

main90178-W0019

9338515012

main93385-15012

21 parts on this diagram · 1 diagram in section
