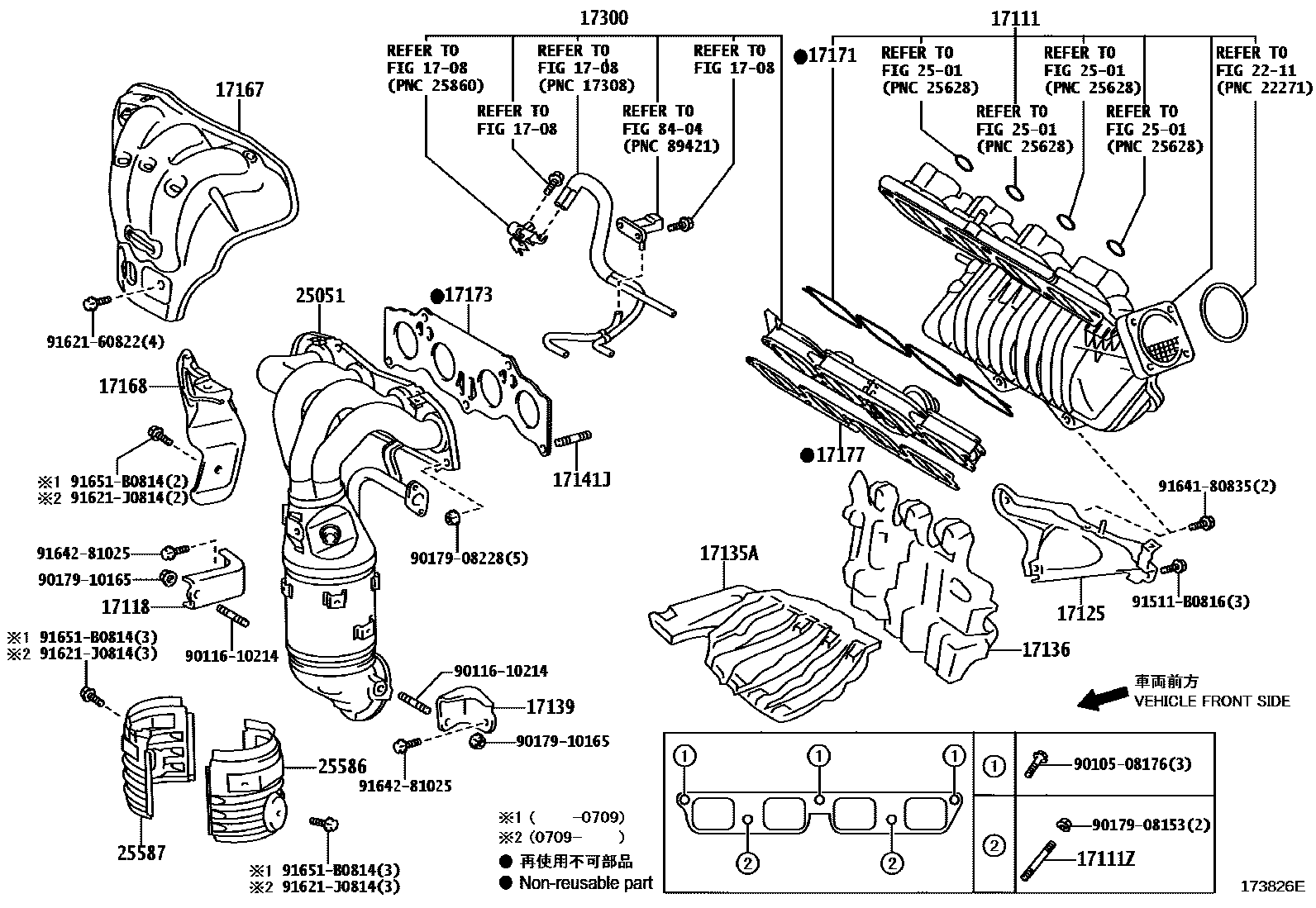

MANIFOLD
1708
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17171GASKET, INTAKE TO EXHAUST MANIFOLD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300VALVE ASSY, INTAKE AIR CONTROL
2211
2501
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
8404
9010508176
main90105-08176
9011610214
main90116-10214
9017908153
main90179-08153
9017908228
main90179-08228
9017910165
main90179-10165
91511B0816
main91511-B0816
9162160822
main91621-60822
91621J0814
main91621-J0814
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
32 parts on this diagram · 2 diagrams in section
