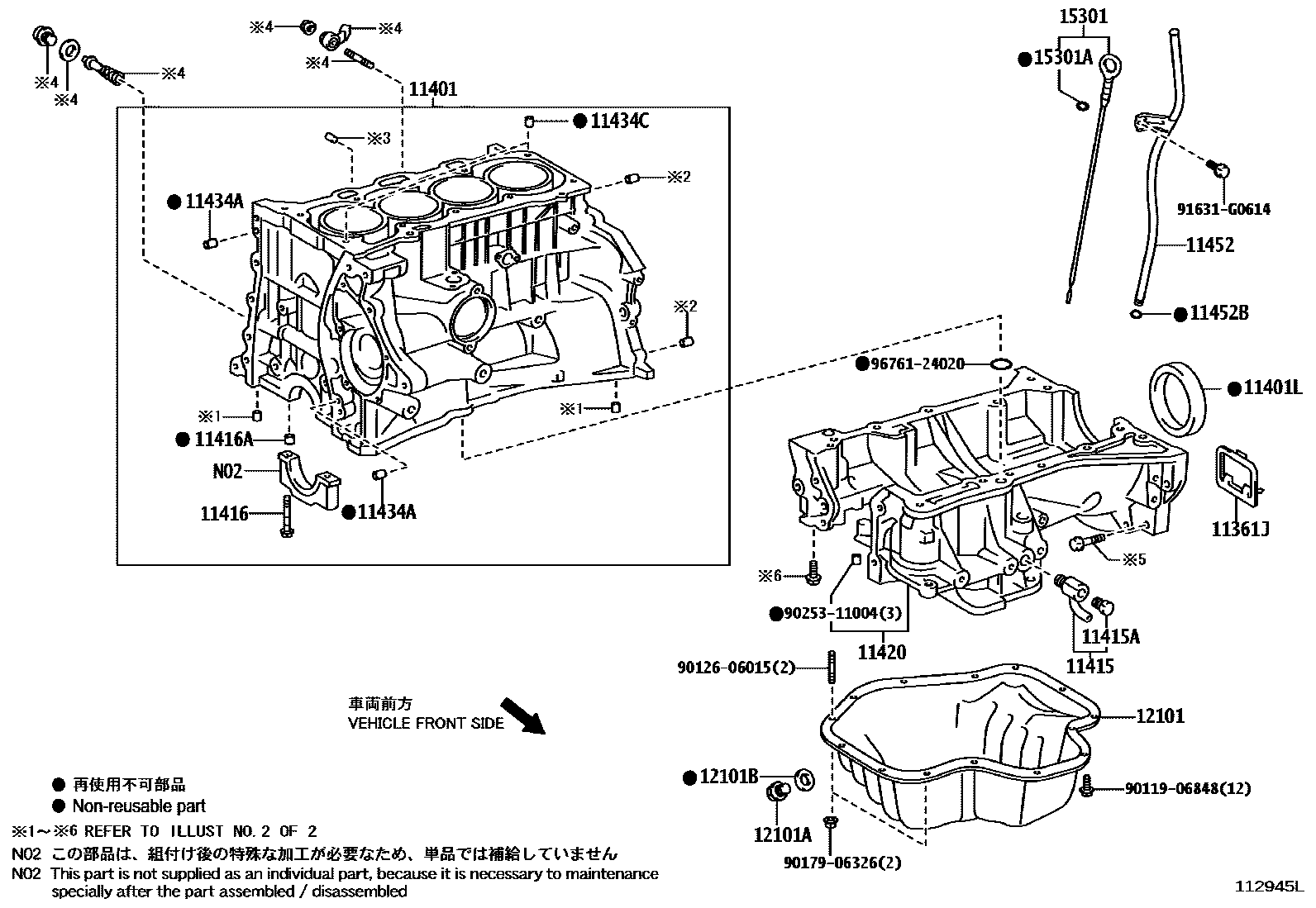

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401LSEAL, ENGINE REAR OIL
sub90311-89007
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
sub90910-02206
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301ARING, O(FOR OIL LEVEL GAGE)
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025311004
main90253-11004
91631G0614
main91631-G0614
9676124020
main96761-24020
23 parts on this diagram · 3 diagrams in section
