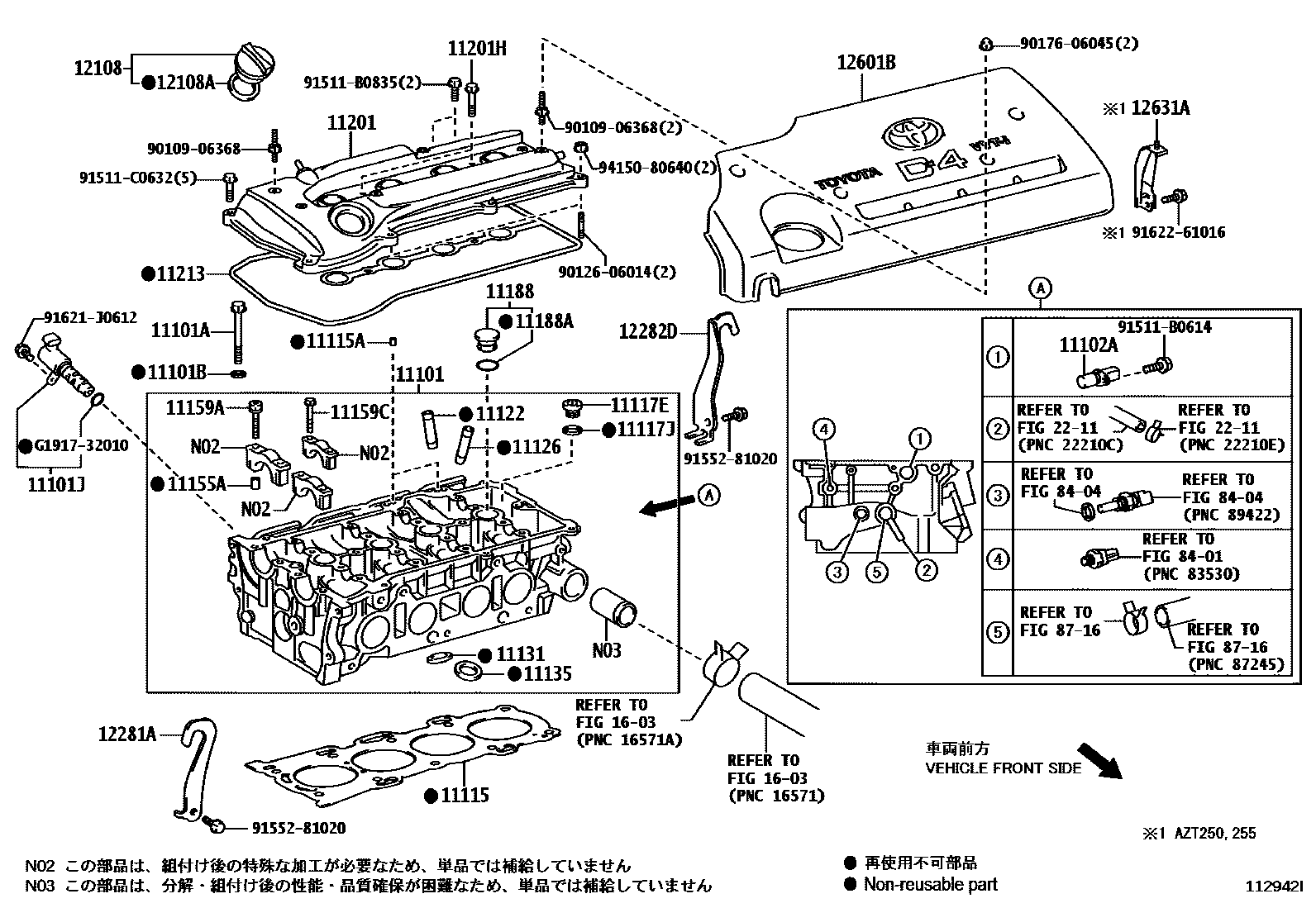

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-28041i1AZFSE,2AZFSE..AZT25#200307-200508

sub11101-28042

sub11310-28082

main11101-28042i1AZFSE,2AZFSE..AZT25#200508-200606

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02141i2AZFSE..AZT251200506-200606

sub90910-02184

main90910-02150i1AZFSE..AZT250,255200307-200806

main90910-02162i1AZFSE..AZT250,255200806

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11034i1AZFSE,2AZFSE..AZT25#200307-200606

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-28020i1AZFSE,2AZFSE..AZT25#200307-200606

sub15330-28010

11102ASENSOR, CAMSHAFT POSITION

main90919-05026i1AZFSE,2AZFSE..AZT25#200307-200606

11115GASKET, CYLINDER HEAD

main11115-28012i2AZFSE..AZT251200506-200508

sub11115-28013

main11115-28013i2AZFSE..AZT251200508-200511

sub11115-28040

main11115-28030i1AZFSE..AZT250,255200307-200508

sub11115-28031

main11115-28031i1AZFSE..AZT250,255200508-200806

sub11115-28H10

main11115-28032i1AZFSE..AZT250,255200806

main11115-28040i2AZFSE..AZT251200511-200606

11115APIN, RING

main90250-05021i1AZFSE,2AZFSE..AZT25#200307-200606

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-27006i1AZFSE,2AZFSE..AZT25#200307-200606

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i1AZFSE,2AZFSE..AZT25#200307-200606

11122BUSH, INTAKE VALVE GUIDE

main11122-28010i1AZFSE,2AZFSE..AZT25#200307-200606

main11123-28010i1AZFSE,2AZFSE..AZT25#200307-200606

11126BUSH, EXHAUST VALVE GUIDE

main11126-20020i1AZFSE,2AZFSE..AZT25#200307-200606

main11127-20020i1AZFSE,2AZFSE..AZT25#200307-200606

11131SEAT, INTAKE VALVE

main11131-28021i1AZFSE,2AZFSE..AZT25#200307-200606

main11132-28021i1AZFSE,2AZFSE..AZT25#200307-200606

11135SEAT, EXHAUST VALVE

main11135-28040i1AZFSE,2AZFSE..AZT25#200307-200606

main11136-28040i1AZFSE,2AZFSE..AZT25#200307-200606

11155APIN, RING W/HEAD

main90253-11021i1AZFSE,2AZFSE..AZT25#200307-200606

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08353i1AZFSE,2AZFSE..AZT25#200307-200606

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-06902i1AZFSE,2AZFSE..AZT25#200307-200606

11188PLUG, CAMSHAFT HOUSING

main11188-28010i1AZFSE,2AZFSE..AZT25#200307-200606

11188ARING, O(FOR CAMSHAFT HOUSING PULG)

main90301-21013i1AZFSE,2AZFSE..AZT25#200307-200606

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-28022i1AZFSE,2AZFSE..AZT25#200307-200606

11201HBOLT(FOR CYLINDER HEAD COVER)

main90119-06903i1AZFSE,2AZFSE..AZT25#200307-200606

11213GASKET, CYLINDER HEAD COVER

main11213-28041i1AZFSE,2AZFSE..AZT25#200307-200606

12108CAP SUB-ASSY, OIL FILLER

main12180-28010i1AZFSE,2AZFSE..AZT25#200307-200606

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i1AZFSE,2AZFSE..AZT25#200307-200606

12281AHANGER, ENGINE, NO.1

main12281-0H010i1AZFSE,2AZFSE..AZT25#200805

main12281-28010i1AZFSE,2AZFSE..AZT25#200307-200606

main12281-28010i1AZFSE,2AZFSE..AZT25#200606

12282DHANGER, ENGINE, NO.2

main12282-0H010i1AZFSE,2AZFSE..AZT25#200805

main12282-28010i1AZFSE,2AZFSE..AZT25#200307-200606

main12282-28010i1AZFSE,2AZFSE..AZT25#200606

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-0H010i1AZFSE..AZT250,255200307-200606

main12601-28120i2AZFSE..AZT251200506-200606

12631ABRACKET, ENGINE COVER

main12631-28010i1AZFSE..AZT250,255200307-200606

1603

2211

8401

8404

8716

9010906368

main90109-06368

9012606014

main90126-06014

9017606045

main90176-06045

91511B0614

main91511-B0614

91511B0835

main91511-B0835

91511C0632

main91511-C0632

9155281020

main91552-81020

91621J0612

main91621-J0612

9162261016

main91622-61016

9415080640

main94150-80640

G191732010

mainG1917-32010

43 parts on this diagram · 1 diagram in section
