STANDARD TOOL

09110JACK ASSY

main09111-05030iAZT25#200307-200603

sub09111-05031

main09111-05031iAZT25#200604-200606

sub09111-0F020

09113HANDLE, JACK

main09113-05010iAZT25#200307-200606

09120BAG, TOOL

main09120-16030

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-05011iAZT25#200307-200606

09184STOPPER, WHEEL

main09184-00010

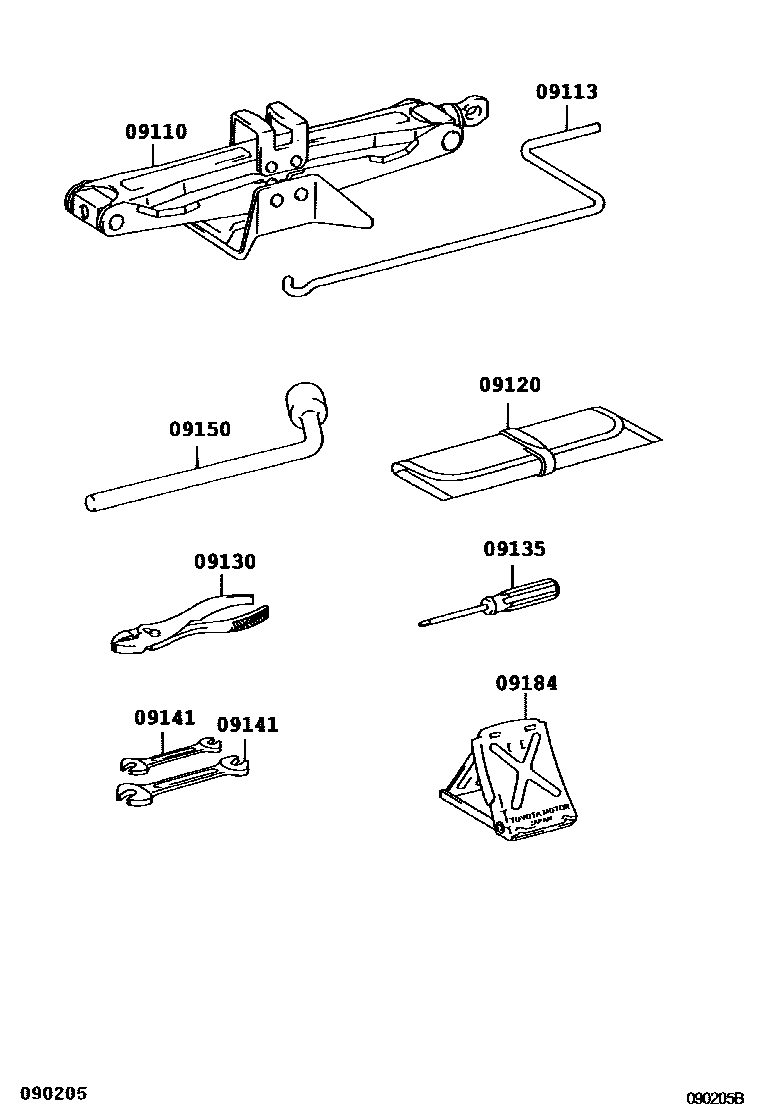

8 parts on this diagram · 1 diagram in section
