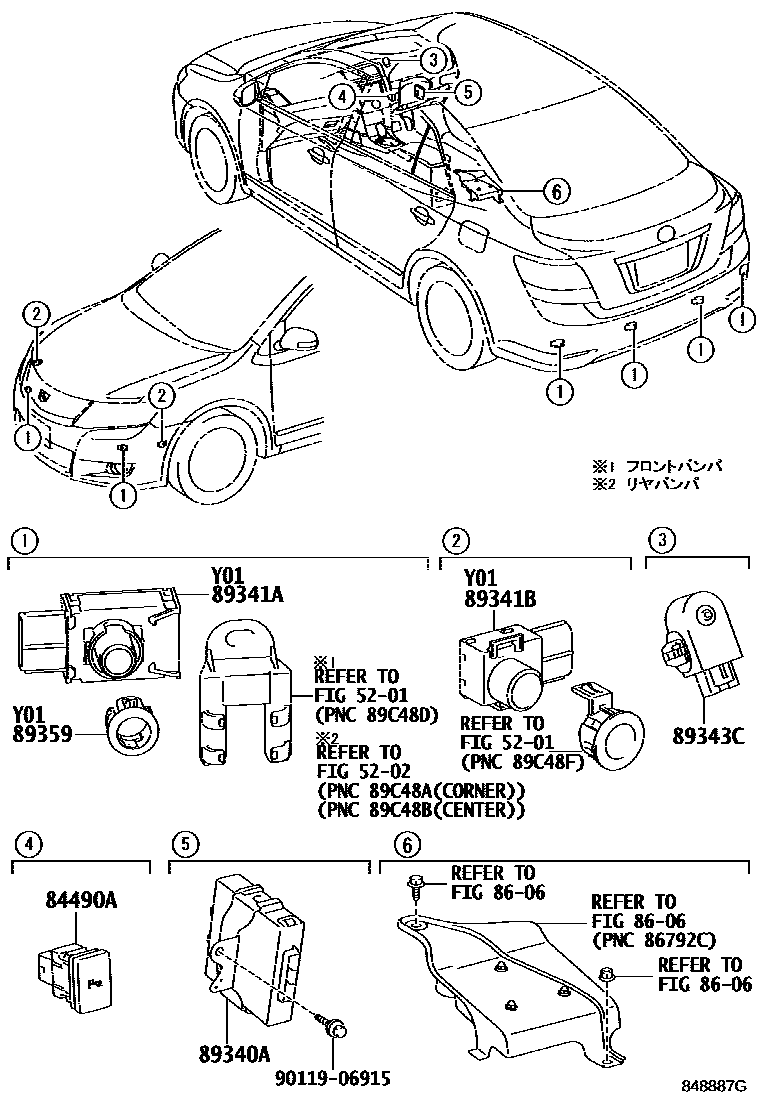

CLEARANCE & BACK SONAR

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-20070iZRT261..CBU200705-201004

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-20080supersedes 89340-20090iZRT261..CBU201004-201212

main89340-20090iNZT260,ZRT260,265..CBU201606-202010

89341ASENSOR, ULTRASONIC, NO.1

main89341-33110-A2×6iZRT260,265..CBU200705-200907

main89341-33110-A3×6iZRT260,265..CBU200705-200907

main89341-33110-B2×6iZRT260,265..CBU200705-200907

main89341-33110-B3×6iZRT261..PRM..CBU201004-201212

main89341-33110-C0×6iZRT261..CBU201110-201212

main89341-33110-C2×6iZRT261..CBU201004-201110

main89341-33110-D2×6iZRT261..CBU200705-201004

main89341-33110-D3×6iZRT26#..CBU200705-200808

main89341-33110-E4×6iZRT261..ALN..CBU201004-201110

main89341-33110-H1×6iZRT26#..CBU200705-200808

main89341-33110-J2×6iZRT261..CBU200705-201004

main89341-33110-J3×6iZRT261..CBU201004-201212

main89341-33110-P0×6iZRT261..ALN..CBU201110-201212

89341BSENSOR, ULTRASONIC, NO.2

main89341-12090-A0×2iZRT261..PRM..CBU200808-201004

main89341-12090-A1×2iZRT261..PRM..CBU200808-201004

main89341-12090-B0×2iZRT261..ALN..CBU; ZRT261..PRM..CBU201004-201212

main89341-12090-B1×2iZRT261..ALN..CBU201110-201212

main89341-12090-B2×2iZRT261..PRM..CBU200808-201004

main89341-12090-C0×2iZRT261..PRM..CBU200808-201004

main89341-12090-C1×2iZRT261..ALN..CBU; ZRT261..PRM..CBU201110-201212

main89341-12090-D0×2iZRT260,265..PRM..CBU; ZRT261..CBU200712-200808

main89341-12090-D1×2iZRT261..ALN..CBU; ZRT261..PRM..CBU200808-201004

main89341-12090-E3×2iZRT261..ALN..CBU201004-201110

main89341-12090-H0×2iZRT26#..ALN..CBU200705-200808

main89341-12090-J0×2iZRT261..ALN..CBU200808-201004

main89341-12090-J1×2iZRT261..PRM..CBU200808-201004

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNZT260,ZRT260,265..CBU201606-202010

main89343-72010supersedes 89343-48010iZRT261..CBU200705-201004

89359BEZEL, ULTRASONIC SENSOR

main89348-33010-A2×6iZRT261..CBU201004-201212

main89348-33010-A3×6iZRT261..CBU201004-201212

main89348-33010-B2×6iZRT261..CBU200705-201004

main89348-33010-B3×6iZRT261..PRM..CBU201004-201212

main89348-33010-C0×6iZRT261..CBU201110-201212

main89348-33010-C2×6iZRT261..CBU200705-201004

main89348-33010-D2×6iZRT261..CBU201004-201212

main89348-33010-D3×6iZRT26#..CBU200705-200808

main89348-33010-E2×6iZRT261..ALN..CBU201004-201110

main89348-33010-H1×6iZRT26#..CBU200705-200808

main89348-33010-J2×6iZRT261..CBU200705-201004

main89348-33010-J3×6iZRT260,265..ALN..CBU200808-200907

main89348-33010-P1×6iZRT261..ALN..CBU201110-201212

9011906915

main90119-06915

10 parts on this diagram · 2 diagrams in section
