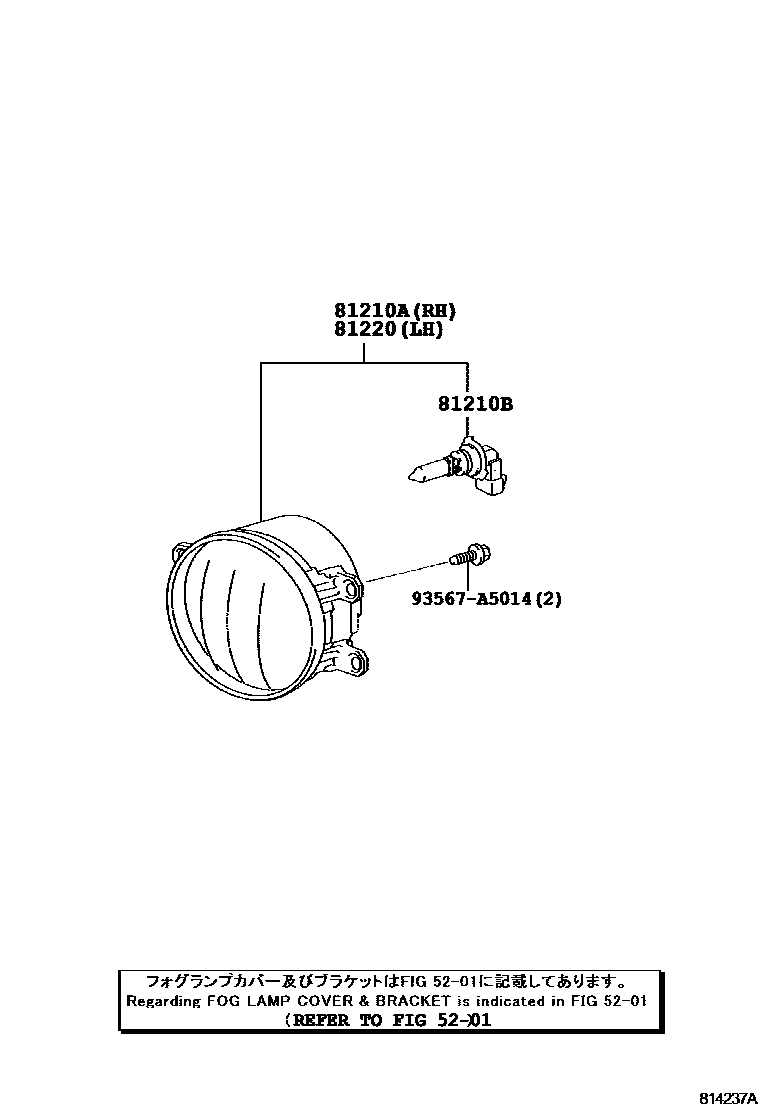

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041iNZT260..CBU; ZRT26#..CBU; ZRT260,265..CBU200705-201001

main81210-0D042iNZT260..CBU; ZRT26#..CBU; ZRT260,265..CBU201002-201004

main81210-12230iNZT260..CBU; ZRT26#..CBU201212-201404

main81210-47010iNZT260..CBU; ZRT26#..CBU201405-201606

81210BBULB, FOG LAMP

main90981-13075×2iNZT260..CBU; ZRT26#..CBU200705-201004

main90981-13081×2iNZT260..CBU; ZRT26#..CBU; ZRT260,265..CBU200705-201004

main90981-13090×2iZRT261..CBU201606-202009

81220LAMP ASSY, FOG, LH

main81220-0D041iNZT260..CBU; ZRT26#..CBU; ZRT260,265..CBU200705-201001

main81220-0D042iNZT260..CBU; ZRT26#..CBU; ZRT260,265..CBU201002-201004

main81220-12230iNZT260..CBU; ZRT26#..CBU201212-201404

main81220-47010iNZT260..CBU; ZRT26#..CBU201405-201606

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
