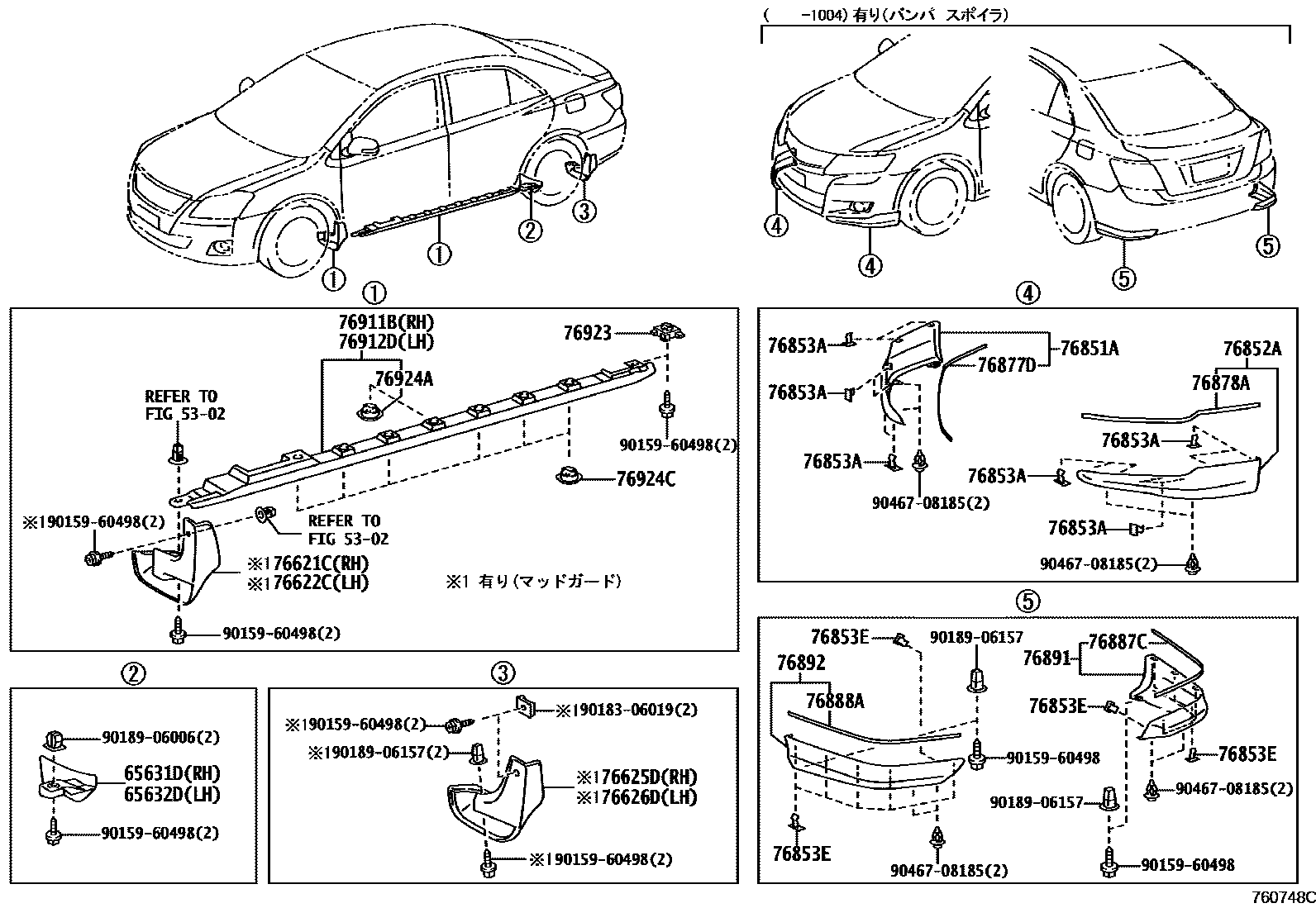

MUDGUARD & SPOILER

0001 1 0002 1��(�� ����� �����)

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-20040iZRT261..CBU201606-202009

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-20040iNZT260,ZRT26#..CBU200705-201004

76621CMUDGUAD, FRONT FENDER, RH

main76621-20380-A0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76621-20380-A1iZRT261..PRM..CBU201606-202009

main76621-20380-B0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76621-20380-B1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76621-20380-B2iNZT260,ZRT260,265..ALN..CBU200808-201004

main76621-20380-C0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201110

main76621-20380-C1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201110-201606

main76621-20380-C2iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76621-20380-C3iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76621-20380-D0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76621-20380-D1iNZT260,ZRT26#..CBU200705-200808

main76621-20380-D2iZRT261..PRM..CBU201606-202009

main76621-20380-E0iZRT261..PRM..CBU201606-202009

main76621-20380-H0iNZT260,ZRT26#..CBU200705-200808

main76621-20380-H1iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

main76621-20380-H2iZRT261..PRM..CBU201606-202009

main76621-20380-J0iNZT260,ZRT26#..CBU200705-201004

main76621-20380-J1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76621-20380-J2iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

76622CMUDGUARD, FRONT FENDER, LH

main76622-20380-A0iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76622-20380-A1iNZT260,ZRT26#..CBU200705-201004

main76622-20380-B0iZRT261..PRM..CBU201606-202009

main76622-20380-B1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76622-20380-B2iNZT260,ZRT260,265..ALN..CBU200808-201004

main76622-20380-C0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201110

main76622-20380-C1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201110-201606

main76622-20380-C2iZRT261..PRM..CBU201606-202009

main76622-20380-C3iZRT261..PRM..CBU201606-202009

main76622-20380-D0iNZT260,ZRT26#..CBU200705-201004

main76622-20380-D1iNZT260,ZRT26#..CBU200705-200808

main76622-20380-D2iZRT261..PRM..CBU201606-202009

main76622-20380-E0iZRT261..PRM..CBU201606-202009

main76622-20380-H0iNZT260,ZRT26#..CBU200705-200808

main76622-20380-H1iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

main76622-20380-H2iZRT261..PRM..CBU201606-202009

main76622-20380-J0iNZT260,ZRT26#..CBU200705-201004

main76622-20380-J1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76622-20380-J2iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-20380-A0iZRT261..PRM..CBU201606-202009

main76625-20380-A1iZRT261..PRM..CBU201606-202009

main76625-20380-B0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76625-20380-B1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76625-20380-B2iNZT260,ZRT260,265..ALN..CBU200808-201004

main76625-20380-C0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201110

main76625-20380-C1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201110-201606

main76625-20380-C2iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76625-20380-C3iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76625-20380-D0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76625-20380-D1iNZT260,ZRT26#..CBU200705-200808

main76625-20380-D2iZRT261..PRM..CBU201606-202009

main76625-20380-E0iZRT261..PRM..CBU201606-202009

main76625-20380-H0iNZT260,ZRT26#..CBU200705-200808

main76625-20380-H1iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

main76625-20380-H2iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76625-20380-J0iNZT260,ZRT26#..CBU200705-201004

main76625-20380-J1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76625-20380-J2iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-20390-A0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76626-20390-A1iZRT261..PRM..CBU201606-202009

main76626-20390-B0iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76626-20390-B1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76626-20390-B2iNZT260,ZRT260,265..ALN..CBU200808-201004

main76626-20390-C0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201110

main76626-20390-C1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201110-201606

main76626-20390-C2iZRT261..PRM..CBU201606-202009

main76626-20390-C3iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76626-20390-D0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201606

main76626-20390-D1iNZT260,ZRT26#..CBU200705-200808

main76626-20390-D2iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76626-20390-E0iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76626-20390-H0iNZT260,ZRT26#..CBU200705-200808

main76626-20390-H1iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

main76626-20390-H2iNZT260,ZRT260,265..PRM..CBU; ZRT260,265..PRM..CBU201606

main76626-20390-J0iNZT260,ZRT26#..CBU200705-201004

main76626-20390-J1iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

main76626-20390-J2iNZT260,ZRT260,265..PRM..CBU; ZRT261..PRM..CBU201212-201606

76851ACOVER, FRONT SPOILER, RH

main76851-20090-A0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76851-20090-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76851-20090-B0iZRT260,265..ALN..CBU200705-200908

main76851-20090-C0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76851-20090-D0iZRT26#..ALN..CBU200705-200808

main76851-20090-D1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200808-201004

main76851-20090-H0iZRT26#..ALN..CBU200705-200808

main76851-20090-J0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76851-20090-J1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200808-201004

76852ACOVER, FRONT SPOILER, LH

main76852-20070-A0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76852-20070-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76852-20070-B0iZRT260,265..ALN..CBU200705-200908

main76852-20070-C0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76852-20070-D0iZRT26#..ALN..CBU200705-200808

main76852-20070-D1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200808-201004

main76852-20070-H0iZRT26#..ALN..CBU200705-200808

main76852-20070-J0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76852-20070-J1iZRT260,265..ALN..CBU200808-200908

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main75392-35200×12iZRT260,265..ALN..CBU200705-200908

76853ERETAINER, REAR SPOILER, NO.1

main75392-35200×12iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

76877DPROTECTOR, FRONT SPOILER SIDE, RH

main76877-20060-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201002

main76877-20070-B0iZRT260,265..ALN..CBU200705-200908

main76877-20070-C0iZRT260,265..ALN..CBU200705-200908

main76877-20100-A0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201003-201004

76878APROTECTOR, FRONT SPOILER SIDE, LH

main76878-20020-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201002

main76878-20030-B0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76878-20030-C0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76878-20060-A0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201003-201004

76887CPROTECTOR, REAR SPOILER, NO.9 RH

main76887-20110-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201002

main76887-20120-B0iNZT260..ALN..CBU; ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76887-20120-B1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76887-20120-C0iZRT260,265..ALN..CBU200705-200908

main76887-20130-A0iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

76888APROTECTOR, REAR SPOILER, NO.9 LH

main76888-20080-A1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201002

main76888-20090-B0iNZT260..ALN..CBU; ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76888-20090-B1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76888-20090-C0iNZT260..ALN..CBU; ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76888-20100-A0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201003-201004

76891SPOILER, REAR NO.1

main76891-20110-A0iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76891-20110-A1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76891-20110-B0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201004-201212

main76891-20110-B1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76891-20110-C0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76891-20110-C1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76891-20110-D0iZRT26#..ALN..CBU200705-200808

main76891-20110-D1iZRT26#..ALN..CBU; ZRT261..ALN..CBU201004-201212

main76891-20110-E0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201004-201110

main76891-20110-H0iZRT26#..ALN..CBU200705-200808

main76891-20110-H1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76891-20110-J0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76891-20110-J1iZRT260,265..ALN..CBU200808-200908

76892SPOILER, REAR NO.2

main76892-20130-A0iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-A1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-B0iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-B1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-C0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76892-20130-C1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-D0iZRT26#..ALN..CBU200705-200808

main76892-20130-D1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-E0iZRT26#..ALN..CBU; ZRT261..ALN..CBU201004-201110

main76892-20130-H0iZRT26#..ALN..CBU200705-200808

main76892-20130-H1iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main76892-20130-J0iZRT26#..ALN..CBU; ZRT261..ALN..CBU200705-201004

main76892-20130-J1iZRT26#..ALN..CBU; ZRT261..ALN..CBU200808-201004

76911BMUDGUARD, SIDE, RH

main76911-20100iNZT260,ZRT260,265..CBU201606

76912DMUDGUARD, SIDE, LH

main76912-20100iNZT260,ZRT26#..CBU201004-201606

76923RETAINER, SIDE MUDGUARD

main76923-20040×2iNZT260,ZRT26#..CBU200705-201004

main76923-20041×2iNZT260,ZRT26#..CBU201108-201606

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-20030×2iNZT260,ZRT26#..CBU200705-201004

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-20030×12iNZT260,ZRT26#..CBU200705-201004

9015960498

main90159-60498

9018306019

main90183-06019

9018906006

main90189-06006

9018906157

main90189-06157

9046708185

main90467-08185

27 parts on this diagram · 2 diagrams in section
