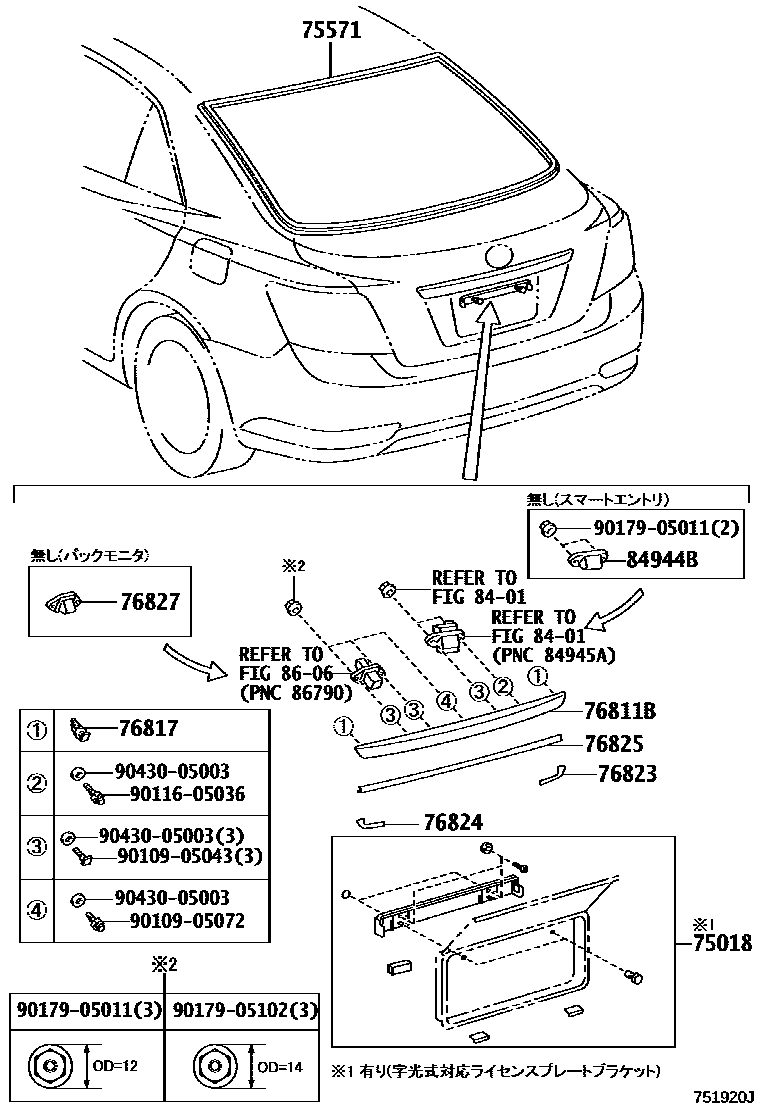

REAR MOULDING

0001 1 0002 1

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020iNZT260,ZRT260,265..CBU201606

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-20550iZRT261..ALN..CBU;NZT260,ZRT260,265..CBU200705-201004

main75571-20560iZRT261..PRM..CBU201606-202009

76811BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-20190iNZT260,ZRT26#..PRM..CBU201004-201606

main76811-20210iNZT260,ZRT260,265..ALN..CBU201606

main76811-20230iZRT260,265..ALN..CBU; ZRT261..ALN..CBU201004-201212

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-50010×2iNZT260,ZRT26#..CBU201004-201606

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-20020iNZT260,ZRT26#..PRM..CBU201004-201606

main76823-20030iNZT260,ZRT260,265..ALN..CBU201606

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76823-20020iNZT260,ZRT26#..PRM..CBU201004-201606

main76824-20030iZRT261..ALN..CBU201606-202009

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-20040iNZT260,ZRT26#..PRM..CBU201004-201606

main76825-20050iNZT260,ZRT260,265..ALN..CBU201606

76827RETAINER, BACK DOOR GARNISH, NO.2

main76827-20040iNZT260,ZRT26#..PRM..CBU201004-201606

main76827-20050iNZT260,ZRT26#..ALN..CBU201004-201606

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH

main84944-50010iNZT260,ZRT260,265..CBU201606

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010905043

main90109-05043

9010905072

main90109-05072

9011605036

main90116-05036

9017905011

main90179-05011

9017905102

main90179-05102

9043005003

main90430-05003

17 parts on this diagram · 2 diagrams in section
