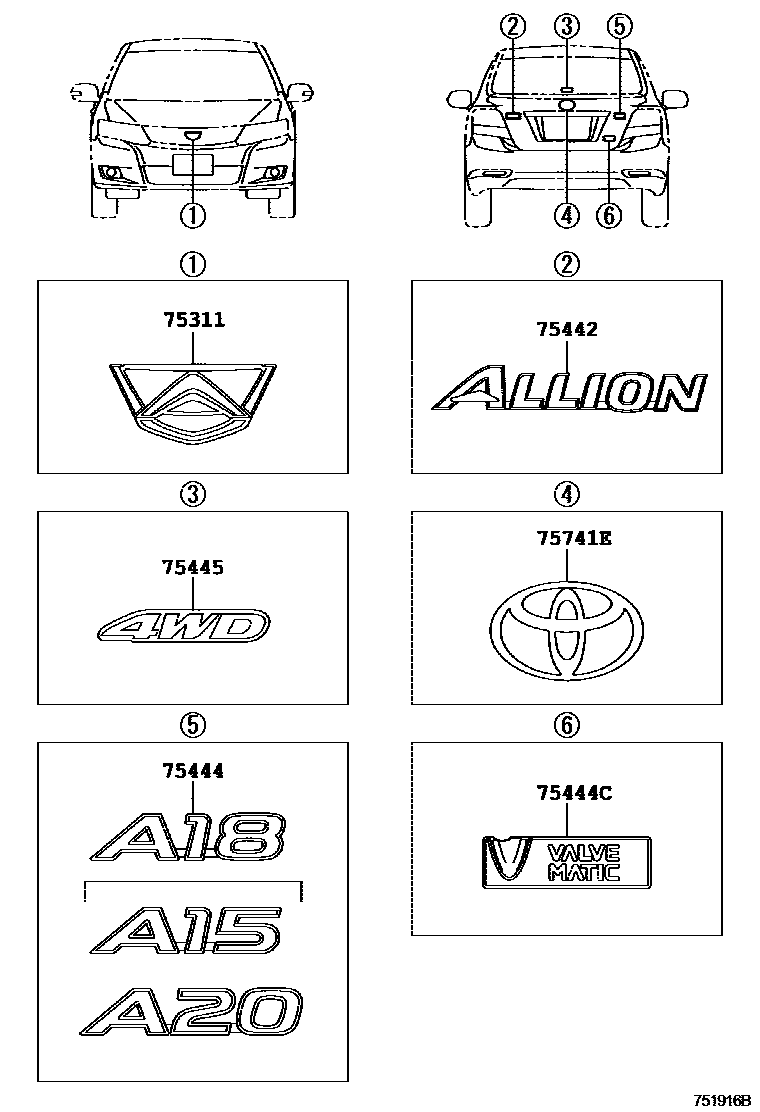

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-20600iNZT260,ZRT26#..PRM..CBU200705-201004

main75311-20610iNZT260,ZRT26#..ALN..CBU200705-201004

main75311-20630iNZT260,ZRT26#..ALN..CBU201004-201606

main75311-20640iNZT260,ZRT260,265..PRM..CBU201606

main75311-20650iNZT260,ZRT260,265..ALN..CBU201606

main75311-20620supersedes 75311-20640iZRT261..PRM..CBU201004-201606

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-2B040iZRT261..PRM..CBU201606-202009

main75442-2B050iNZT260,ZRT260,265..ALN..CBU201606

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-20A20iZRT260,265..PRM..CBU200705-201004

main75444-20A30iNZT260..PRM..CBU201004-201606

main75444-20A40iZRT261..ALN..CBU201004-201606

main75444-20A50iZRT260,265..ALN..CBU201606

main75444-20A60iNZT260..ALN..CBU201004-201606

main75444-20A90supersedes 75444-20A00iZRT261..PRM..CBU200808-201004

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75444-20A70iZRT261..CBU200712-201004

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-20320iZRT265..CBU200705-201004

75741EEMBLEM, SYMBOL

main90975-02063iNZT260,ZRT26#..CBU200705-201004

6 parts on this diagram · 2 diagrams in section
