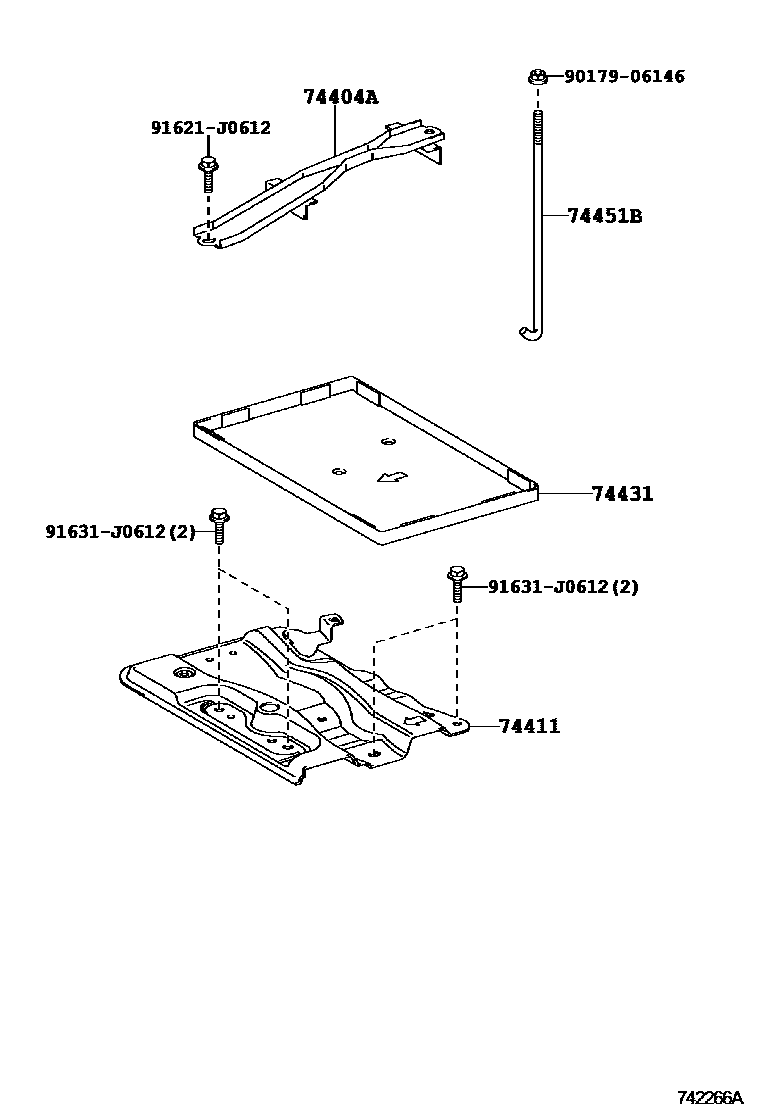

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-20640iZRT261,265..CBU200705-202009

main74404-20650iZRT260..CBU201004-201606

main74404-20650iNZT260..CBU201606

74411CARRIER, BATTERY

main74410-20080iNZT260,ZRT26#..CBU200705-202009

74431TRAY, BATTERY

main74431-12090iZRT260..CBU201606

main74431-12090iZRT260..CBU201004-201606

main74431-20130iNZT260,ZRT26#..CBU200705-202009

74451BBOLT, BATTERY CLAMP

main74451-10060iNZT260,ZRT26#..CBU200705-201001

main74451-58011iNZT260,ZRT26#..CBU201002-202009

9017906146

main90179-06146

91621J0612

main91621-J0612

91631J0612

main91631-J0612

7 parts on this diagram · 1 diagram in section
