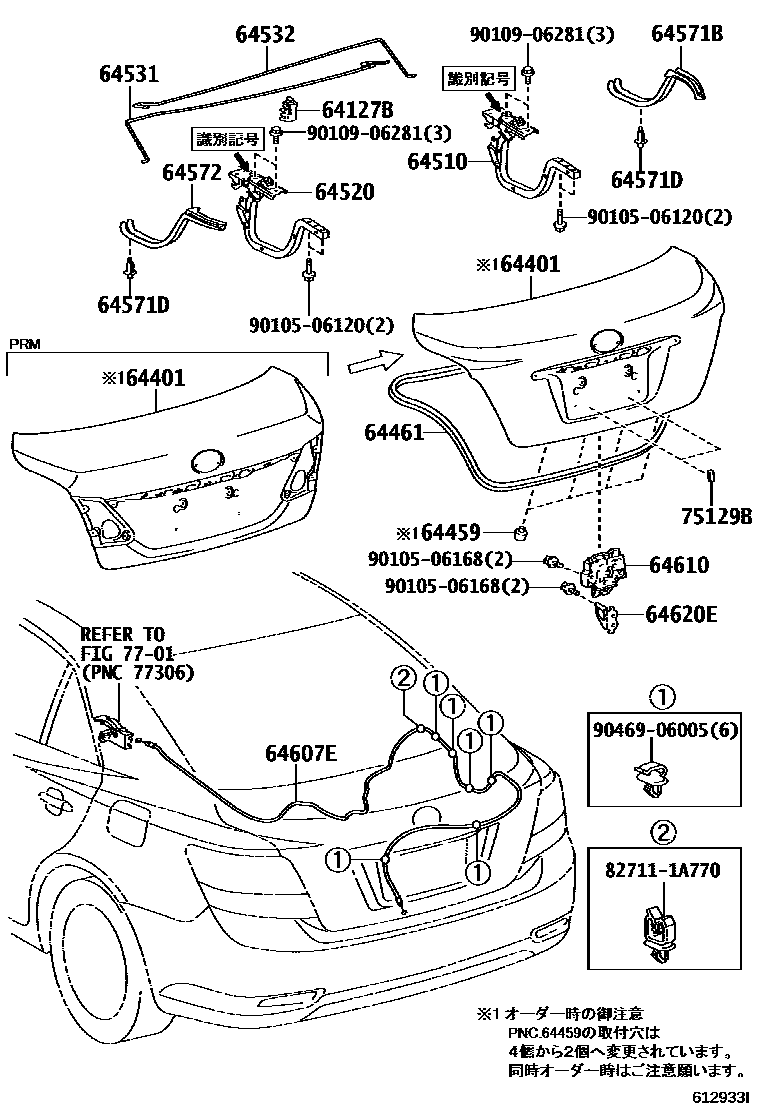

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iNZT260,ZRT26#..CBU200705-201004

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20A40iNZT260,ZRT260,265..PRM..CBU201606

main64401-20A80iNZT260,ZRT26#..ALN..CBU200705-201004

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iNZT260,ZRT260,265..CBU201606

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20460iNZT260,ZRT26#..CBU200705-201004

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20230iNZT260,ZRT26#..CBU201004-201606

main64510-20240iNZT260,ZRT26#..CBU200705-201004

main64510-20250iNZT260,ZRT26#..CBU201004-201101

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20220iNZT260,ZRT26#..CBU200705-201004

main64520-20230iNZT260,ZRT26#..CBU200705-201004

main64520-20240iNZT260,ZRT26#..CBU201004-201101

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20660iNZT260,ZRT26#..PRM..CBU200705-201004

main64531-20670iNZT260,ZRT26#..ALN..CBU200705-201004

main64531-20680iZRT261..PRM..CBU201606-202009

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20670iNZT260,ZRT26#..PRM..CBU200705-201004

main64532-20680iZRT261..ALN..CBU201606-202009

main64532-20690iNZT260,ZRT260,265..PRM..CBU201606

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-20020iNZT260,ZRT26#..CBU200705-201004

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-07076-C0×6iNZT260,ZRT26#..CBU200705-201004

BLACK

main90467-07076-C7×6iZRT261..CBU201703-202009

BLACK

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-20020iNZT260,ZRT260,265..CBU201606

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20A00iNZT260,ZRT26#..CBU201004-201606

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-12010iNZT260,ZRT26#..CBU201004-201212

main64600-20030iNZT260,ZRT260,265..CBU201606

main64600-52010iNZT260,ZRT26#..CBU200705-200809

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-33010iNZT260,ZRT26#..CBU200705-201004

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iNZT260,ZRT260,265..CBU201606

main75129-21010×2iNZT260,ZRT26#..CBU200705-200811

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046906005

main90469-06005

21 parts on this diagram · 1 diagram in section
