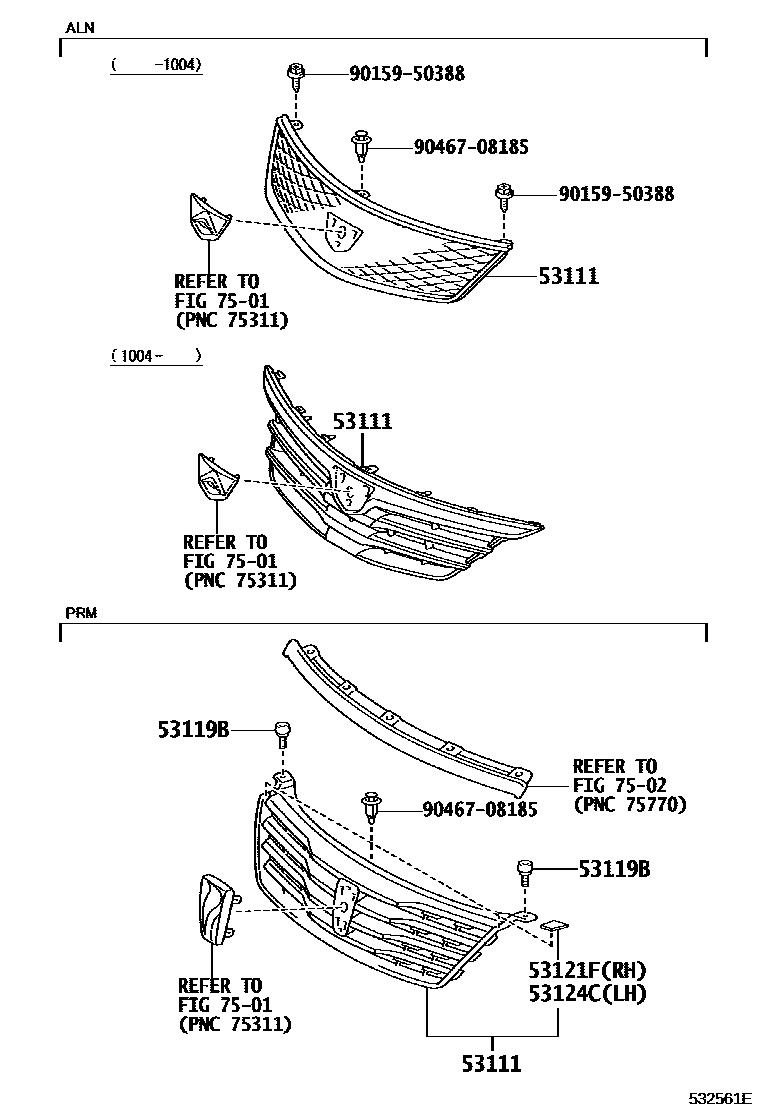

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53101-20790supersedes 53101-20780iZRT261..ALN..CBU201606-202009

main53111-20A70iNZT260,ZRT26#..ALN..CBU200705-201004

main53111-20B10iNZT260,ZRT26#..PRM..CBU201004-201606

main53111-20B30iNZT260,ZRT26#..ALN..CBU201004-201606

main53111-20B50iNZT260,ZRT26#..PRM..CBU200705-201004

main53101-20770supersedes 53101-20760iNZT260,ZRT260,265..PRM..CBU201606

main53111-20A90iNZT260,ZRT260,265..ALN..CBU200808-201004

main53111-20B20supersedes 53101-20770iZRT261..PRM..CBU201004-201606

main53111-20B40iNZT260,ZRT260,265..ALN..CBU; ZRT261..ALN..CBU201212-201606

main53111-20B60supersedes 53101-20770iZRT261..PRM..CBU200808-201004

53119BPROTECTOR, RADIATOR GRILLE

main53119-12150×2iNZT260,ZRT26#..PRM..CBU200705-201004

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-20220iNZT260,ZRT26#..PRM..CBU201004-201606

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-20040iNZT260,ZRT26#..PRM..CBU200705-201004

main53124-20050iZRT261..CBU201606-202009

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7502FRONT MOULDING

→ Go to FIG 75-02

9015950388

main90159-50388

9046708185

main90467-08185

8 parts on this diagram · 2 diagrams in section
