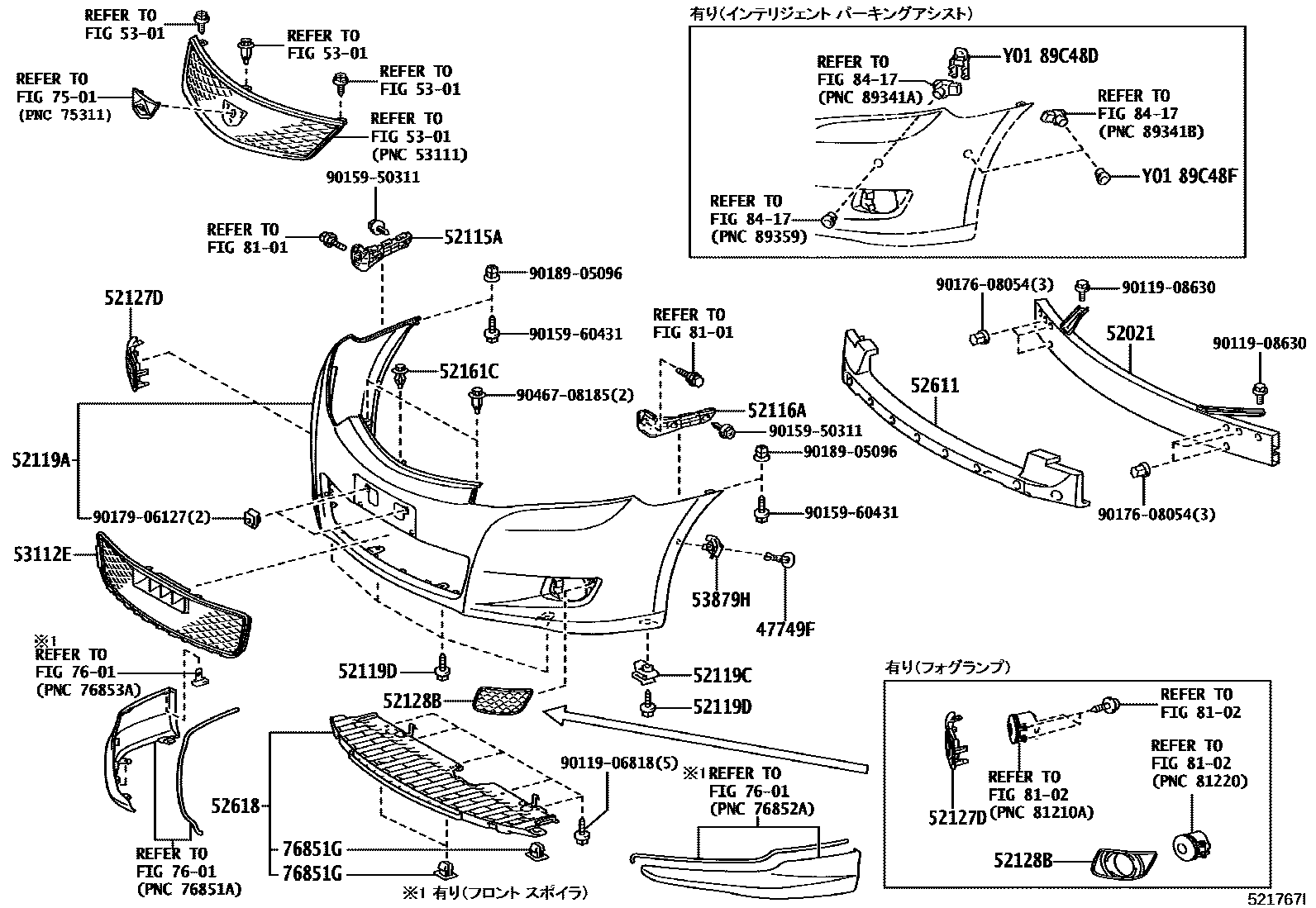

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-58010×2iNZT260,ZRT26#..CBU201004-201606

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20270iZRT261..CBU201606-202009

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20410iNZT260,ZRT26#..PRM..CBU201004-201606

main52115-20420iNZT260,ZRT26#..ALN..CBU200705-201004

main52115-20430iZRT261..CBU201606-202009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20280iNZT260,ZRT26#..PRM..CBU200705-201004

main52116-20290iNZT260,ZRT26#..ALN..CBU200705-201004

main52116-20300iNZT260,ZRT260,265..CBU201606

52119ACOVER, FRONT BUMPER

main52119-20958-A0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-A1iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-B0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-C0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-C1iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-D0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-E0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20958-H0iNZT260,ZRT260,265..CBU; NZT260..CBU; ZRT261..CBU201606-201812

main52119-20965-A0supersedes 52119-20C00-A0iZRT261..CBU201812-202009

SUPER WHITE 2,040

main52119-20965-A1supersedes 52119-20C00-A1iZRT261..CBU201812-202009

WHITE PEARL CS.,070

main52119-20965-B0supersedes 52119-20C00-B0iZRT261..CBU201812-202009

SILVER ME.,1F7

main52119-20965-C0supersedes 52119-20C00-C0iZRT261..CBU201812-202009

ATTITUDE BLACK MC.,218

main52119-20965-C1supersedes 52119-20C00-C1iZRT261..CBU201812-202009

BLACKISH AGEHA GF.,221

main52119-20965-D0supersedes 52119-20C00-D0iZRT261..CBU201812-202009

DK.RED M.M.,3T0

main52119-20965-E0supersedes 52119-20C00-E0iZRT261..CBU201812-202009

DARK SHERRY M.M.,4W4

main52119-20965-H0supersedes 52119-20C00-H1iZRT261..CBU201812-202009

FROSTY GREEN MC.,781

main52119-20A40-A0iNZT260,ZRT26#..PRM..CBU200705-201004

SUPER WHITE 2,040

main52119-20A40-A1iNZT260,ZRT26#..PRM..CBU200705-201004

WHITE PEARL CS.,070

main52119-20A40-B0iNZT260,ZRT26#..PRM..CBU200705-201004

SILVER ME.,1F7

main52119-20A40-B1iNZT260,ZRT26#..PRM..CBU200705-201004

GRAY ME.,1G2

main52119-20A40-C0iNZT260,ZRT26#..PRM..CBU200808-201004

BLACK MC.,209

main52119-20A40-D0iNZT260,ZRT26#..PRM..CBU200705-201004

BLACKISH RED MC.,3R0

main52119-20A40-D1iNZT260,ZRT26#..PRM..CBU200705-200808

RED M.M.,3R3

main52119-20A40-J0iNZT260,ZRT26#..PRM..CBU200705-201004

LT.BLUE M.M.,8S7

main52119-20A60-A0iNZT260,ZRT26#..ALN..CBU200705-201004

SUPER WHITE 2,040

main52119-20A60-A1iNZT260,ZRT26#..ALN..CBU200705-201004

WHITE PEARL CS.,070

main52119-20A60-B0iNZT260,ZRT26#..ALN..CBU200705-201004

SILVER ME.,1F7

main52119-20A60-B1iNZT260..ALN..CBU200908-201004

GRAY ME.,1G3

main52119-20A60-C0iNZT260,ZRT26#..ALN..CBU200705-201004

BLACK MC.,209

main52119-20A60-D0iNZT260,ZRT26#..ALN..CBU200705-200808

RED M.M.,3R3

main52119-20A60-D1iNZT260,ZRT26#..ALN..CBU200808-201004

BLACKISH RED MC.,3R0

main52119-20A60-H0iNZT260,ZRT26#..ALN..CBU200705-200808

TURQUOISE M.M.,776

main52119-20A60-J0iNZT260,ZRT26#..ALN..CBU200705-201004

LT.BLUE M.M.,8S7

main52119-20A60-J1iNZT260,ZRT26#..ALN..CBU200808-201004

DK.BLUE MC.,8S6

main52119-20B00-A0supersedes 52119-20A40-A0iNZT260..PRM..CBU; ZRT26#..PRM..CBU201407-201606

main52119-20B00-A1supersedes 52119-20A40-A1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201407

main52119-20B00-B0supersedes 52119-20A40-B0iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201407

main52119-20B00-B1supersedes 52119-20A40-B1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201212

main52119-20B00-C0supersedes 52119-20A40-C0iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201110

main52119-20B00-C1supersedes 52119-20A40-C1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201407-201606

main52119-20B00-D0supersedes 52119-20A40-D0iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201407

main52119-20B00-H0supersedes 52119-20A40-H1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201212-201407

main52119-20B00-J0supersedes 52119-20A40-J1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201004-201212

main52119-20B00-J1supersedes 52119-20A40-J2iNZT260..PRM..CBU; ZRT26#..PRM..CBU201407-201606

main52119-20B20-A0iNZT260,ZRT26#..ALN..CBU201004-201407

SUPER WHITE 2,040

main52119-20B20-A1iNZT260,ZRT26#..ALN..CBU201004-201407

WHITE PEARL CS.,070

main52119-20B20-B0iNZT260,ZRT26#..ALN..CBU201004-201407

SILVER ME.,1F7

main52119-20B20-B1iNZT260,ZRT26#..ALN..CBU201407-201606

GRAY ME.,1G3

main52119-20B20-C0iNZT260,ZRT26#..ALN..CBU201004-201110

BLACK MC.,209

main52119-20B20-C1iNZT260,ZRT26#..ALN..CBU201407-201606

BLACK,202

main52119-20B20-D0iNZT260,ZRT26#..ALN..CBU201407-201606

BLACKISH RED MC.,3R0

main52119-20B20-E0iNZT260,ZRT26#..ALN..CBU201004-201110

BEIGE ME.,4T8

main52119-20B20-H0iNZT260,ZRT26#..ALN..CBU201212-201407

CLEAR STREAM ME.,787

main52119-20B20-J0iNZT260,ZRT26#..ALN..CBU201004-201212

DK.BLUE MC.,8S6

main52119-20B60-A1supersedes 52119-20B50-A1iNZT260..PRM..CBU; ZRT26#..PRM..CBU201407-201606

main52119-20B70-A1iNZT260,ZRT26#..ALN..CBU201407-201606

WHITE PEARL CS.,070

main52119-20A50-A0iZRT261..PRM..CBU200808-201004

main52119-20A50-A1iZRT260,265..PRM..CBU200705-200908

main52119-20A50-B0iZRT260,265..PRM..CBU200705-200908

main52119-20A50-B1iZRT261..PRM..CBU200808-201004

main52119-20A50-C0iZRT261..PRM..CBU200808-201004

main52119-20A50-D0iZRT261..PRM..CBU200705-201004

main52119-20A50-D1iZRT26#..PRM..CBU200705-200808

main52119-20A50-J0iZRT260,265..PRM..CBU200705-200908

main52119-20A70-A0iZRT26#..ALN..CBU200705-201004

main52119-20A70-A1iZRT26#..ALN..CBU200705-201004

main52119-20A70-B0iZRT26#..ALN..CBU200705-201004

main52119-20A70-C0iZRT26#..ALN..CBU200705-201004

main52119-20A70-D0iZRT26#..ALN..CBU200705-200808

main52119-20A70-D1iZRT26#..ALN..CBU200808-201004

main52119-20A70-H0iZRT26#..ALN..CBU200705-200808

main52119-20A70-J0iZRT26#..ALN..CBU200705-201004

main52119-20A70-J1iZRT26#..ALN..CBU200808-201004

main52119-20A80-A0iZRT261..ALN..CBU200705-201004

main52119-20A80-A1iZRT260,265..ALN..CBU200705-200908

main52119-20A80-B0iZRT260,265..ALN..CBU200705-200908

main52119-20A80-C0iZRT261..ALN..CBU200705-201004

main52119-20A80-D0iZRT26#..ALN..CBU200705-200808

main52119-20A80-D1iZRT261..ALN..CBU200808-201004

main52119-20A80-H0iZRT26#..ALN..CBU200705-200808

main52119-20A80-J0iZRT261..ALN..CBU200705-201004

main52119-20A80-J1iZRT260,265..ALN..CBU200808-200908

main52119-20B10-A0iZRT261..PRM..CBU201004-201212

main52119-20B10-A1iZRT261..PRM..CBU201004-201212

main52119-20B10-B0iZRT261..PRM..CBU201004-201212

main52119-20B10-B1iZRT261..PRM..CBU201004-201212

main52119-20B10-C0iZRT261..PRM..CBU201004-201110

main52119-20B10-C1iZRT261..PRM..CBU201110-201212

main52119-20B10-D0iZRT261..PRM..CBU201004-201212

main52119-20B10-J0iZRT261..PRM..CBU201004-201212

main52119-20B30-A0iZRT261..ALN..CBU201004-201212

main52119-20B30-A1iZRT261..ALN..CBU201004-201212

main52119-20B30-B0iZRT261..ALN..CBU201004-201212

main52119-20B30-B1iZRT261..ALN..CBU201110-201212

main52119-20B30-C0iZRT261..ALN..CBU201004-201110

main52119-20B30-C1iZRT261..ALN..CBU201110-201212

main52119-20B30-D0iZRT261..ALN..CBU201004-201212

main52119-20B30-E0iZRT261..ALN..CBU201004-201110

main52119-20B30-J0iZRT261..ALN..CBU201004-201212

52119CCLIP, FRONT BUMPER COVER

main90467-05114×2iNZT260,ZRT260,265..CBU201606

52119DSCREW, NO.1

main90159-60215×6iNZT260,ZRT26#..CBU200705-201004

main90159-60488×6iNZT260,ZRT260,265..CBU201606

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-20210supersedes 52127-20220iNZT260..PRM..CBU; ZRT26#..PRM..CBU200705-201004

main52127-20230iNZT260..ALN..CBU; ZRT26#..ALN..CBU200705-201004

main52127-20250supersedes 52127-20260iNZT260..ALN..CBU; ZRT26#..ALN..CBU201004-201606

main52127-20280iNZT260..PRM..CBU; ZRT26#..PRM..CBU201212-201606

main52127-20290iNZT260..CBU201606

main52127-20220iZRT260,265..PRM..CBU200908-201004

main52127-20240iZRT260,265..ALN..CBU200908-201004

main52127-20270iZRT260,265..ALN..CBU; ZRT261..ALN..CBU201004-201212

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-20150iNZT260..ALN..CBU; ZRT26#..ALN..CBU201004-201606

main52128-20180supersedes 52128-20190iNZT260..PRM..CBU; ZRT26#..PRM..CBU200705-201004

main52128-20200supersedes 52128-20220iNZT260..ALN..CBU; ZRT26#..ALN..CBU200705-201004

main52128-20240iNZT260..PRM..CBU; ZRT26#..PRM..CBU201212-201606

main52128-20250iNZT260..CBU201606

main52128-20190iZRT260,265..PRM..CBU200908-201004

main52128-20210iZRT260,265..ALN..CBU200908-201004

main52128-20230iZRT260,265..ALN..CBU; ZRT261..ALN..CBU201004-201212

52161CPIECE, FRONT BUMPER

main52161-16010iNZT260,ZRT26#..ALN..CBU; NZT260,ZRT26#..PRM..CBU201004-201606

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20240iNZT260,ZRT26#..CBU201004-201606

main52611-20260iNZT260,ZRT26#..CBU200705-201004

main52611-20280iZRT261..CBU201606-202009

52618ABSORBER, FRONT BUMPER, LOWER

main52618-20010iNZT260,ZRT26#..CBU200705-201004

main52618-20030iNZT260,ZRT26#..CBU201004-201606

main52618-20040iZRT261..CBU201606-202009

5301RADIATOR GRILLE

→ Go to FIG 53-01

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-20290iNZT260,ZRT26#..PRM..CBU200705-201004

main53112-20300iNZT260,ZRT26#..ALN..CBU200705-201004

main53112-20310iNZT260..PRM..CBU; ZRT26#..PRM..CBU201212-201606

main53112-20320iNZT260,ZRT26#..ALN..CBU201004-201606

main53112-20330iZRT261..CBU201606-202009

53879HRETAINER, FRONT FENDER LINER

main53879-58010×2iNZT260,ZRT260,265..CBU201606

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

76851GGROMMET, SCREW, NO.1

main90189-06193×4iNZT260,ZRT26#..CBU200705-201004

main90189-06237×4iNZT260,ZRT26#..CBU201505-201606

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-12070-22iZRT261..CBU201812-202009

main89348-12070-23iZRT261..CBU201812-202009

main89348-12070-A0iZRT261..CBU201812-202009

main89348-12070-A1iZRT261..CBU201812-202009

main89348-12070-B0iZRT261..CBU201812-202009

main89348-12070-H1iZRT261..CBU201812-202009

main89348-12070-L0iZRT261..CBU201812-202009

main89348-12070-X0iZRT261..CBU201812-202009

main89348-12140-22iZRT261..CBU201812-202009

main89348-12140-23iZRT261..CBU201812-202009

main89348-12140-A0iZRT261..CBU201812-202009

main89348-12140-A1iZRT261..CBU201812-202009

main89348-12140-B0iZRT261..CBU201812-202009

main89348-12140-H1iZRT261..CBU201812-202009

main89348-12140-L0iZRT261..CBU201812-202009

main89348-12140-X0iZRT261..CBU201812-202009

main89348-47020-A0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-A1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-B0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-C0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-C1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-D1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-E1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47020-H0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-A0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-A1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-B0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-C0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-C1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-D1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-E1iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-47030-H0iNZT260,ZRT260,265..CBU; ZRT261..CBU201606-201811

main89348-33020×2iZRT261..CBU201004-201212

89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE

main89348-12010-A0×2iZRT261..ALN..CBU; ZRT261..PRM..CBU201004-201212

main89348-12010-A1×2iZRT261..PRM..CBU200808-201004

main89348-12010-B0×2iZRT261..ALN..CBU; ZRT261..PRM..CBU201004-201212

main89348-12010-B1×2iZRT261..ALN..CBU201110-201212

main89348-12010-B2×2iZRT261..PRM..CBU200808-201004

main89348-12010-C0×2iZRT261..PRM..CBU200808-201004

main89348-12010-C1×2iZRT261..ALN..CBU; ZRT261..PRM..CBU201110-201212

main89348-12010-D0×2iZRT261..CBU;ZRT260,265..ALN..CBU200705-200808

main89348-12010-D1×2iZRT261..ALN..CBU; ZRT261..PRM..CBU200808-201004

main89348-12010-E3×2iZRT261..ALN..CBU201004-201110

main89348-12010-H0×2iZRT261..ALN..CBU200712-200808

main89348-12010-J0×2iZRT261..ALN..CBU200808-201004

main89348-12010-J1×2iZRT261..PRM..CBU200808-201004

9011906818

main90119-06818

9011908630

main90119-08630

9015950311

main90159-50311

9015960431

main90159-60431

9017608054

main90176-08054

9017906127

main90179-06127

9018905096

main90189-05096

9046708185

main90467-08185

31 parts on this diagram · 4 diagrams in section
