43211KNUCKLE, STEERING, RH

main43211-12470i200705-201004

main43211-12480i201606

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15002i201606

main90109-15003i201606-202009

main90109-15004i201004-201606

main90901-05001×2i201004-201606

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2i200705-201004

43212KNUCKLE, STEERING, LH

main43212-12420i200705-201004

main43212-12430i201606-202009

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15002i201606-202009

main90109-15003i200705-201004

main90109-15004i201004-201606

main90901-05001×2i200705-201004

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2i201606-202009

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115i201606-202009

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i200705-201004

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12336i200705-201004

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015×2i200705-201004

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115i200705-201004

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i200705-201004

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12336i200705-201004

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015×2i200705-201004

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-20040i200705-201004

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-20020i200705-201004

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-47040i200705-201004

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14108×2i200705-201004

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-47040i200705-201004

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14108×2i200705-201004

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2i200705-201004

9538102525

main95381-02525

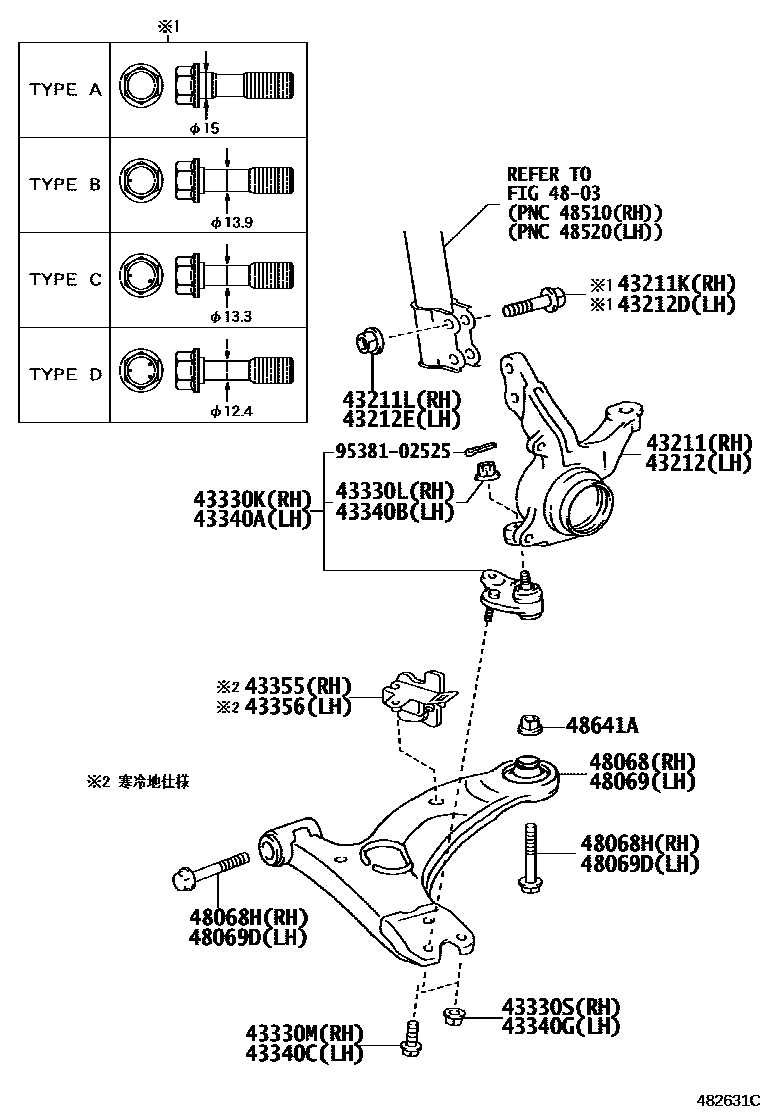

FRONT AXLE ARM & STEERING KNUCKLE
