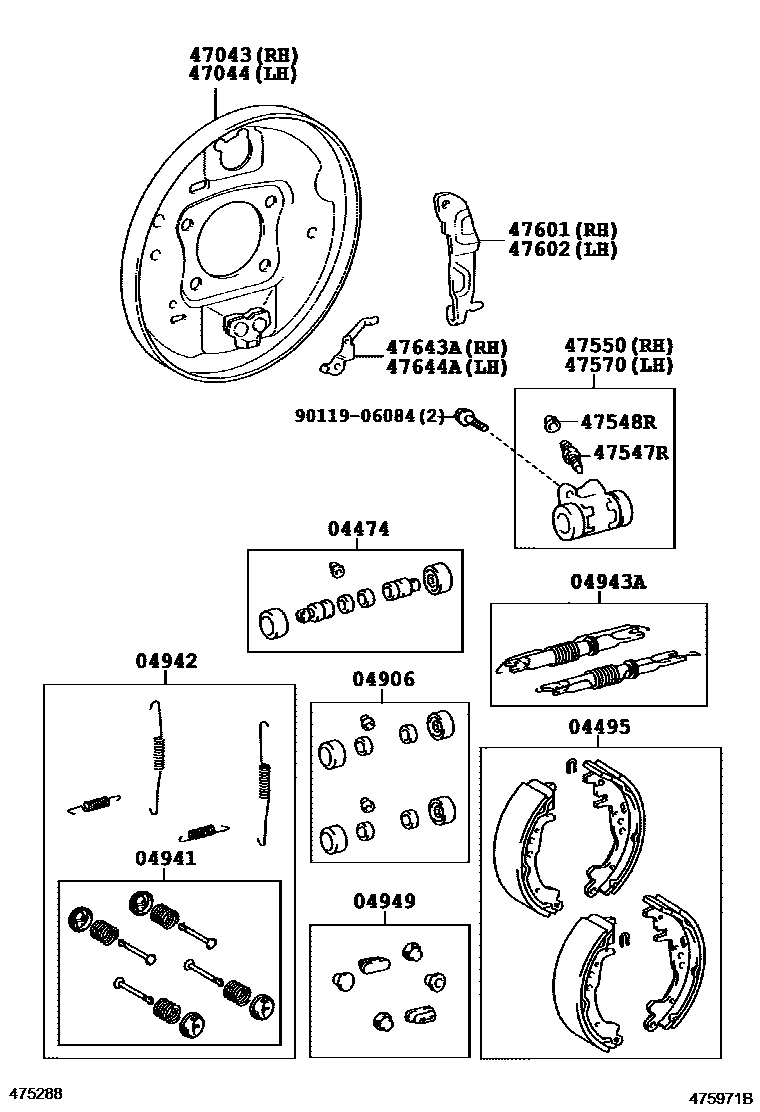

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-12050×2iZRT261..CBU201606-202009

main04474-47010×2iNZT260,ZRT260..CBU200705-201004

04495SHOE KIT, REAR BRAKE

main04495-20220iNZT260,ZRT260..CBU200705-201004

main04495-20230iNZT260,ZRT260..CBU201606

main04495-52120iZRT261,265..CBU200705-201004

main04495-52121iZRT261,265..CBU201404-201606

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33030iZRT261,265..CBU201004-201606

main04906-47010iNZT260,ZRT260..CBU200705-201004

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZRT265..CBU201606

main04941-46010iNZT260,ZRT260..CBU201606

04942SPRING KIT, REAR BRAKE

main04942-13030iZRT261..CBU201606-202009

main04942-52050iNZT260,ZRT260..CBU201004-201606

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNZT260,ZRT260..CBU200705-201004

main04943-52030iZRT261,265..CBU201004-201606

04949PLUG KIT, REAR BRAKE

main04949-12010iNZT260,ZRT260..CBU200705-201004

main04949-13010iZRT265..CBU200811-201004

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12480iZRT261,265..CBU201004-201606

main47043-20560iNZT260,ZRT260..CBU200705-201004

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12480iZRT261,265..CBU200705-201004

main47044-20560iNZT260,ZRT260..CBU201004-201606

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNZT260,ZRT260..CBU201004-201606

main47547-27030×2iZRT261,265..CBU201004-201606

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNZT260,ZRT260,265..CBU; ZRT261..CBU201004-201606

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iZRT261..CBU201606-202009

main47550-47010iNZT260,ZRT260..CBU201606

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iZRT261,265..CBU200705-201004

main47570-47010iNZT260,ZRT260..CBU201004-201606

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iZRT261,265..CBU200705-201004

main47601-20560iNZT260,ZRT260..CBU201004-201306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iZRT261,265..CBU200705-201004

main47602-20560iNZT260,ZRT260..CBU201004-201306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNZT260,ZRT260..CBU201004-201606

main47643-52120iZRT261,265..CBU200705-201004

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNZT260,ZRT260..CBU201004-201606

main47644-52120iZRT265..CBU201606

9011906084

main90119-06084

18 parts on this diagram · 4 diagrams in section
