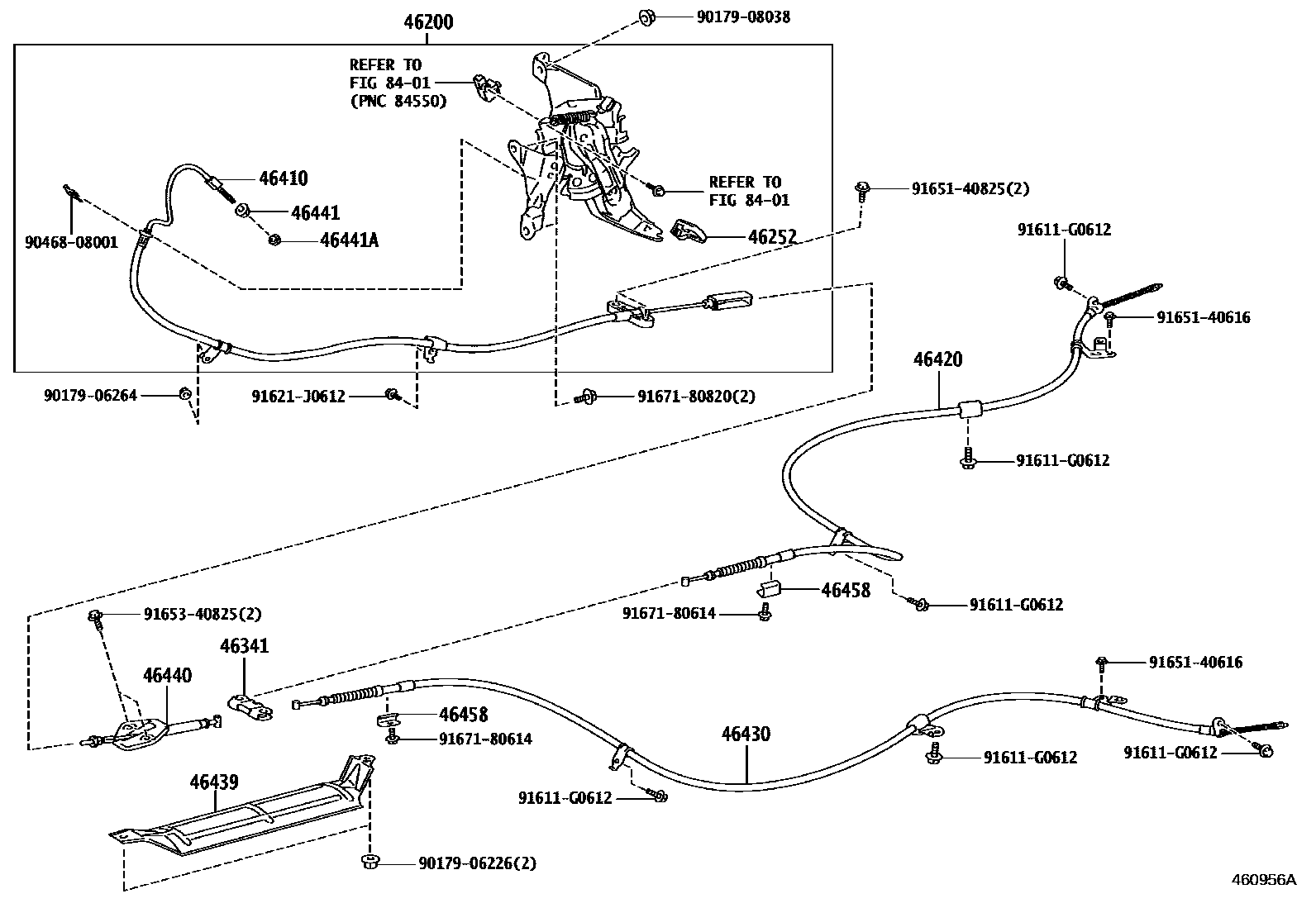

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-20050iNZT260,ZRT26#..CBU200705-202009

46252PAD, PARKING PEDAL

main46252-22010iNZT260,ZRT26#..CBU200705-202009

46341EQUALIZER, PARKING BRAKE

main46341-12020iNZT260,ZRT26#..CBU200705-202009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20470iNZT260,ZRT26#..CBU200705-202009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20650iNZT260,ZRT260..CBU200705-201606

main46420-20660iZRT261..CBU200712-202009

main46420-20670iZRT265..CBU200705-200707

sub46420-20671

main46420-20671iZRT265..CBU200708-200810

sub46420-20672

main46420-20672iZRT265..CBU200811-201606

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20650iNZT260,ZRT260..CBU200705-201606

main46430-20660iZRT261..CBU200712-202009

main46430-20670iZRT265..CBU200705-200707

sub46430-20671

main46430-20671iZRT265..CBU200708-200810

sub46430-20672

main46430-20672iZRT265..CBU200811-201606

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46408-63010iNZT260,ZRT260,261..CBU200705-202009

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-21010iNZT260,ZRT26#..CBU200705-202009

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iNZT260,ZRT26#..CBU200705-202009

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iNZT260,ZRT26#..CBU200705-202009

46458RETAINER, CABLE

main46458-28010iNZT260,ZRT26#..CBU200705-202009

8401

9017906226

main90179-06226

9017906264

main90179-06264

9017908038

main90179-08038

9046808001

main90468-08001

91611G0612

main91611-G0612

91621J0612

main91621-J0612

9165140616

main91651-40616

9165140825

main91651-40825

9165340825

main91653-40825

9167180614

main91671-80614

9167180820

main91671-80820

23 parts on this diagram · 2 diagrams in section
