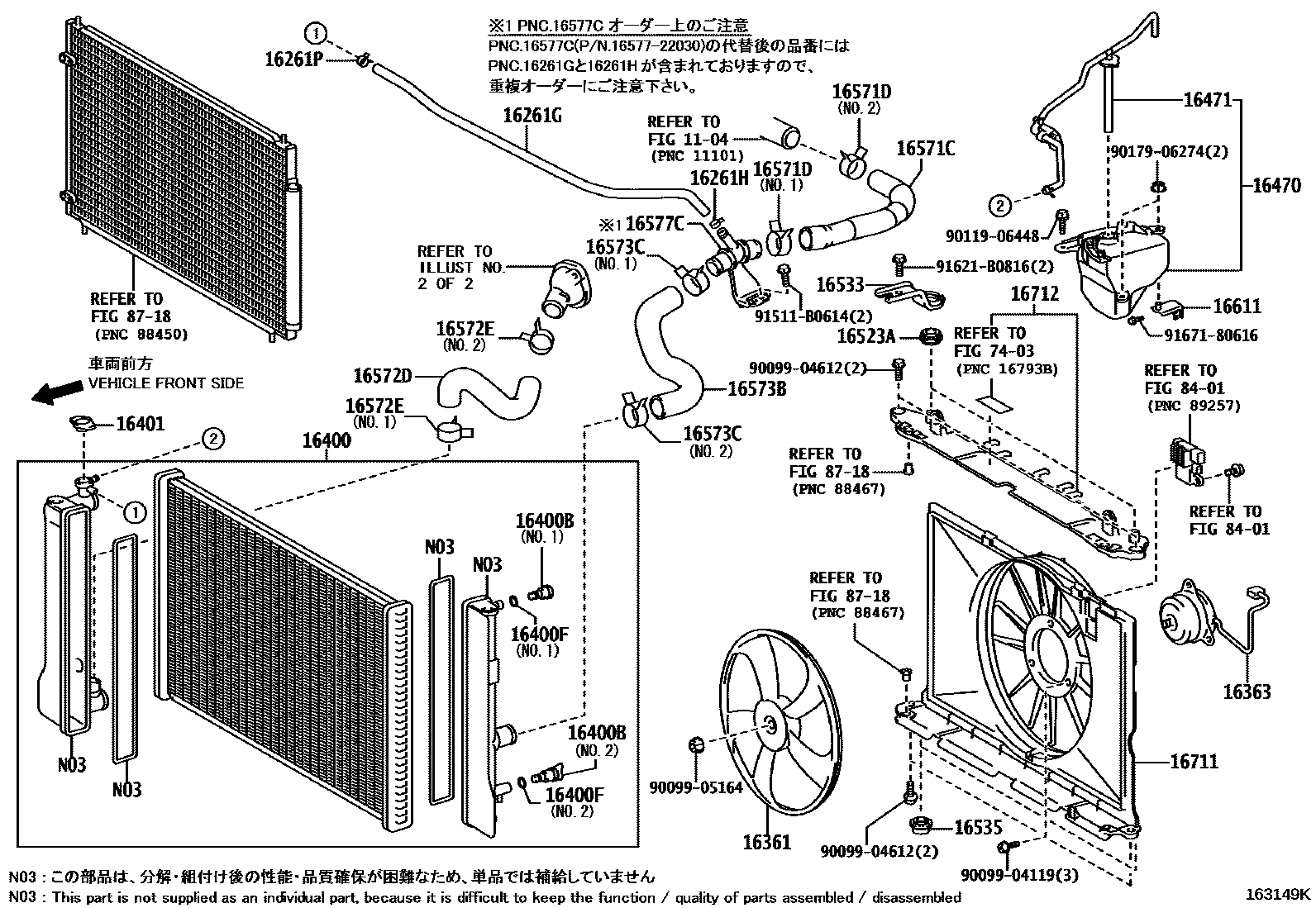

RADIATOR & WATER OUTLET
1104
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
16361FAN
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16611BRACKET, RADIATOR RESERVE TANK
16712SHROUD, FAN, NO.2
7403
8401
8718
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906448
main90119-06448
9017906274
main90179-06274
91511B0614
main91511-B0614
91621B0816
main91621-B0816
9167180616
main91671-80616
37 parts on this diagram · 10 diagrams in section
