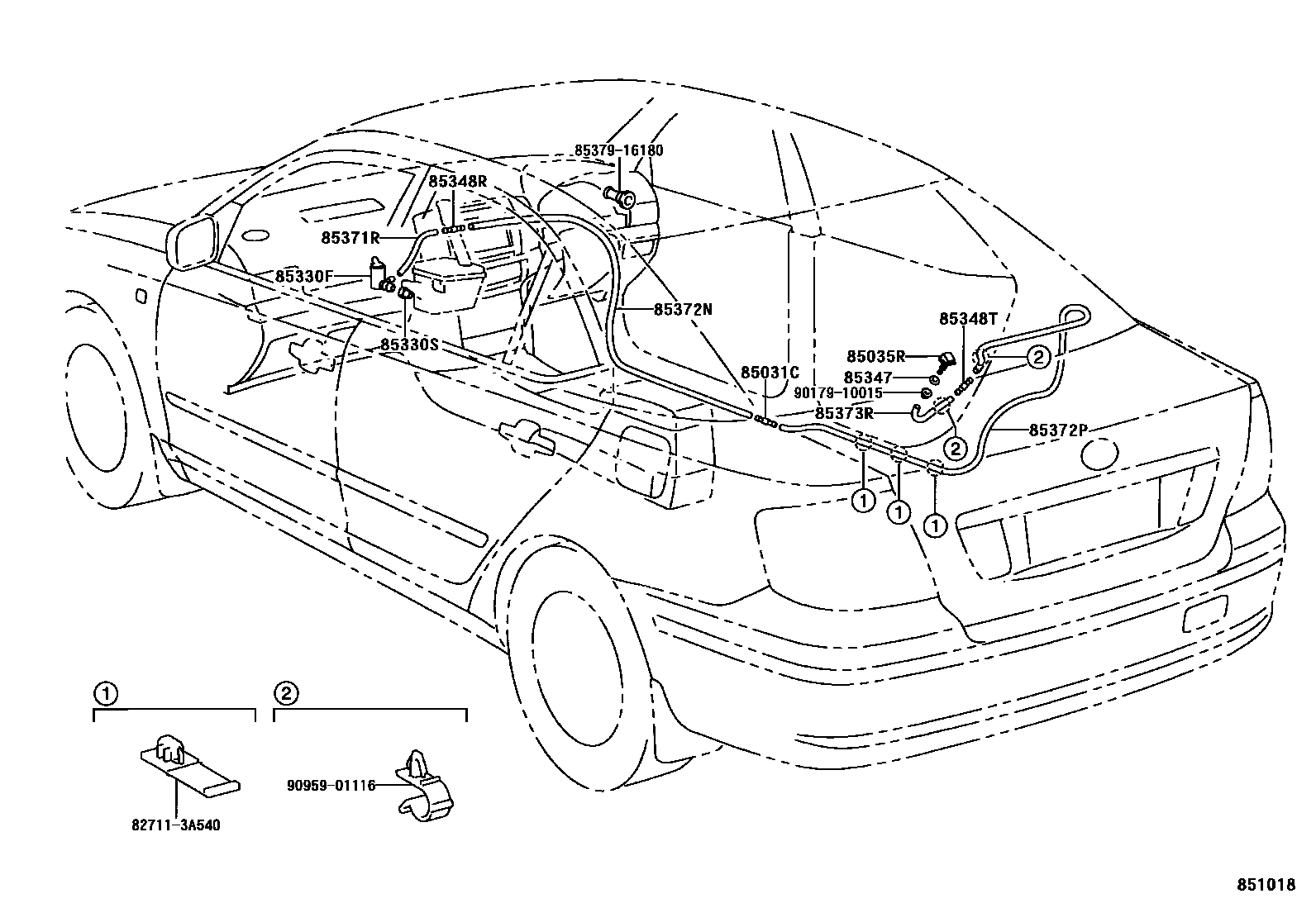

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85375-12520iAZT240,NZT240,ZZT24#200112-200412

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-20090iAZT240,NZT240,ZZT24#200112-200705

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60140iAZT240,NZT240,ZZT24#200112-200412

85330SBUSH, REAR WASHER JAR

main90099-32089iAZT240,NZT240,ZZT24#200112-200412

85347PACKING, REAR WASHER

main85347-12010iAZT240,NZT240,ZZT24#200112-200705

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iAZT240,NZT240,ZZT24#200112-200412

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iAZT240,NZT240,ZZT24#200112-200412

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZT240,NZT240,ZZT24#200112-200412

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33589iAZT240,NZT240,ZZT24#200112-200412

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iAZT240,NZT240,ZZT24#200112-200705

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAZT240,NZT240,ZZT24#200112-200412

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537916180JOINT

main85379-16180

9017910015

main90179-10015

9095901116

main90959-01116

15 parts on this diagram · 1 diagram in section
