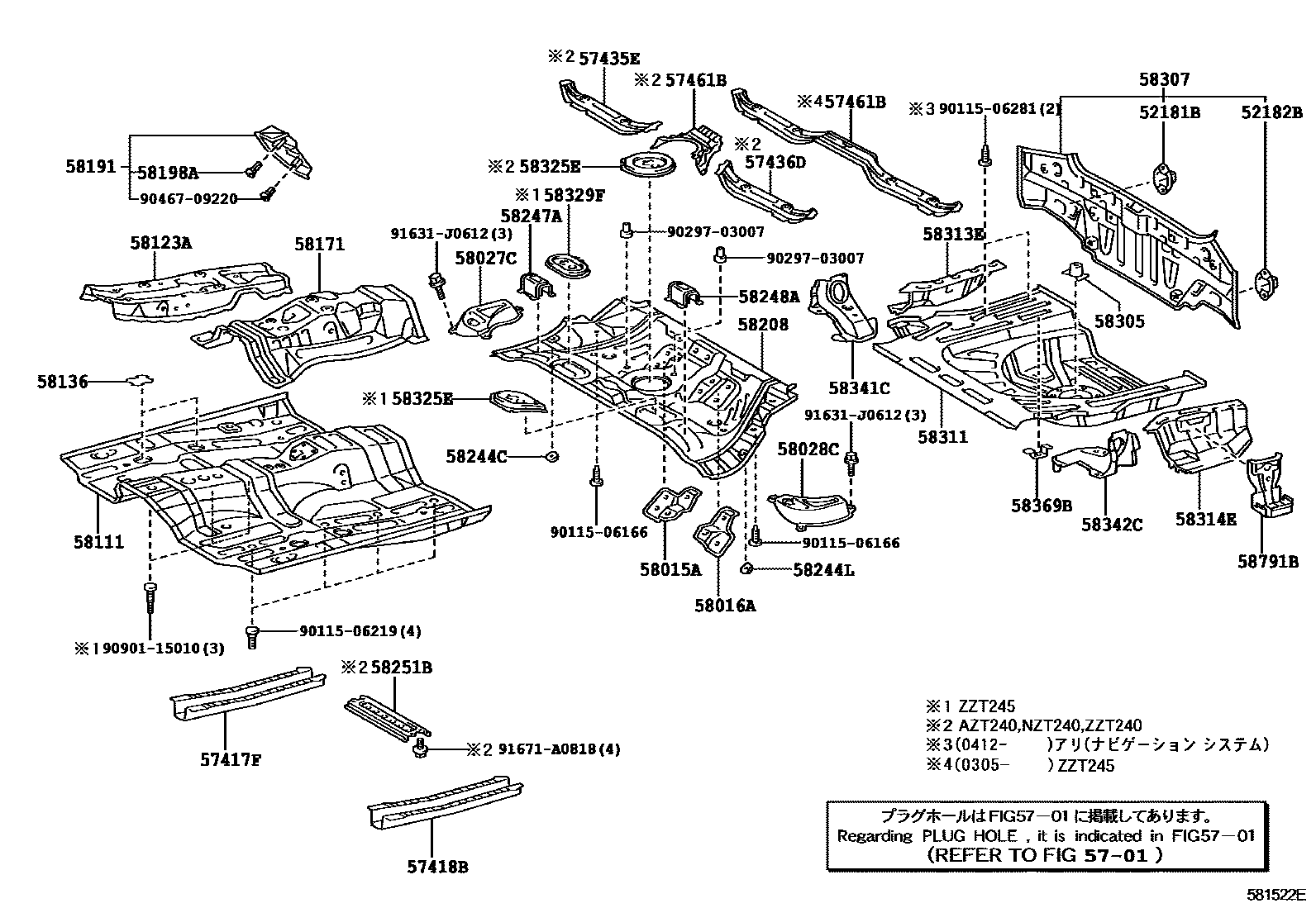

FLOOR PAN & LOWER BACK PANEL
52181BARM, REAR BUMPER, RH
52182BARM, REAR BUMPER LH
5701
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58208PAN, CENTER FLOOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58244LBRACKET, REAR SEAT CUSHION MOUNTING, RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369BBRACKET, FUEL TUBE, NO.3
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011506281
main90115-06281
9029703007
main90297-03007
9046709220
main90467-09220
9090115010
main90901-15010
91631J0612
main91631-J0612
91671A0818
main91671-A0818
43 parts on this diagram · 1 diagram in section
