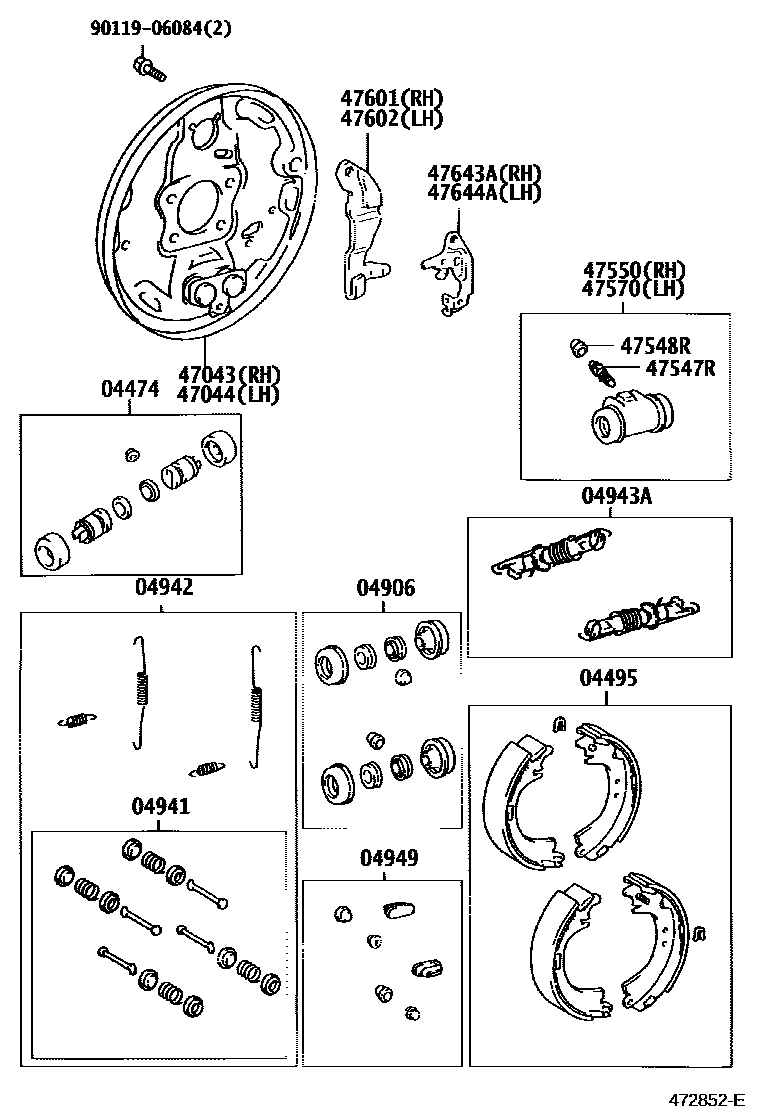

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-42020×2iZZT245200412-200705

main04474-52020×2iNZT240,ZZT240200112-200412

main04474-63010×2iAZT240200412-200705

04495SHOE KIT, REAR BRAKE

main04495-52030iAZT240,ZZT245200412-200705

main04495-52040iNZT240,ZZT240200412-200705

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNZT240,ZZT240200412-200705

main04906-20030iZZT245200412-200705

main04906-42010iAZT240200412-200705

main04906-42020iZZT245200112-200412

main04906-52020iNZT240,ZZT240200112-200412

main04906-63010iAZT240200112-200403

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNZT240,ZZT240200112-200412

main04941-28010iAZT240,ZZT245200412-200705

main04941-46010iNZT240,ZZT240200502-200705

04942SPRING KIT, REAR BRAKE

main04942-12010iNZT240,ZZT240200412-200502

main04942-13020iAZT240,ZZT245200112-200402

main04942-13030iAZT240,ZZT245200403-200412

main04942-46010iNZT240,ZZT240200502-200705

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNZT240,ZZT240200412-200705

main04943-13010iAZT240,ZZT245200412-200705

04949PLUG KIT, REAR BRAKE

main04949-08030iAZT240200403-200412

main04949-12010iZZT245200403-200412

main04949-13010iAZT240,ZZT245200412-200705

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iNZT240,ZZT240200412

main47043-63010iAZT240,ZZT245200412

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iNZT240,ZZT240200412

main47044-63010iAZT240,ZZT245200112-200412

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNZT240,ZZT240200112-200412

main47547-26010×2iAZT240,ZZT245200112-200412

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAZT240,NZT240,ZZT24#200112-200412

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNZT240,ZZT240200112-200412

main47550-42020iZZT245200112-200412

main47550-63010iAZT240200412

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-42020iZZT245200412

main47550-63010iAZT240200412

main47570-20101iNZT240,ZZT240200112-200412

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNZT240,ZZT240200112-200412

main47601-52100iNZT240,ZZT240200512

main47612-33010iAZT240,ZZT245200412

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNZT240,ZZT240200112-200412

main47602-52100iNZT240,ZZT240200512

main47611-33010iAZT240,ZZT245200412

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iAZT240,ZZT245200112-200412

main47643-47010iNZT240,ZZT240200112-200412

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iAZT240,ZZT245200112-200412

main47644-47010iNZT240,ZZT240200412

9011906084

main90119-06084

18 parts on this diagram · 2 diagrams in section
