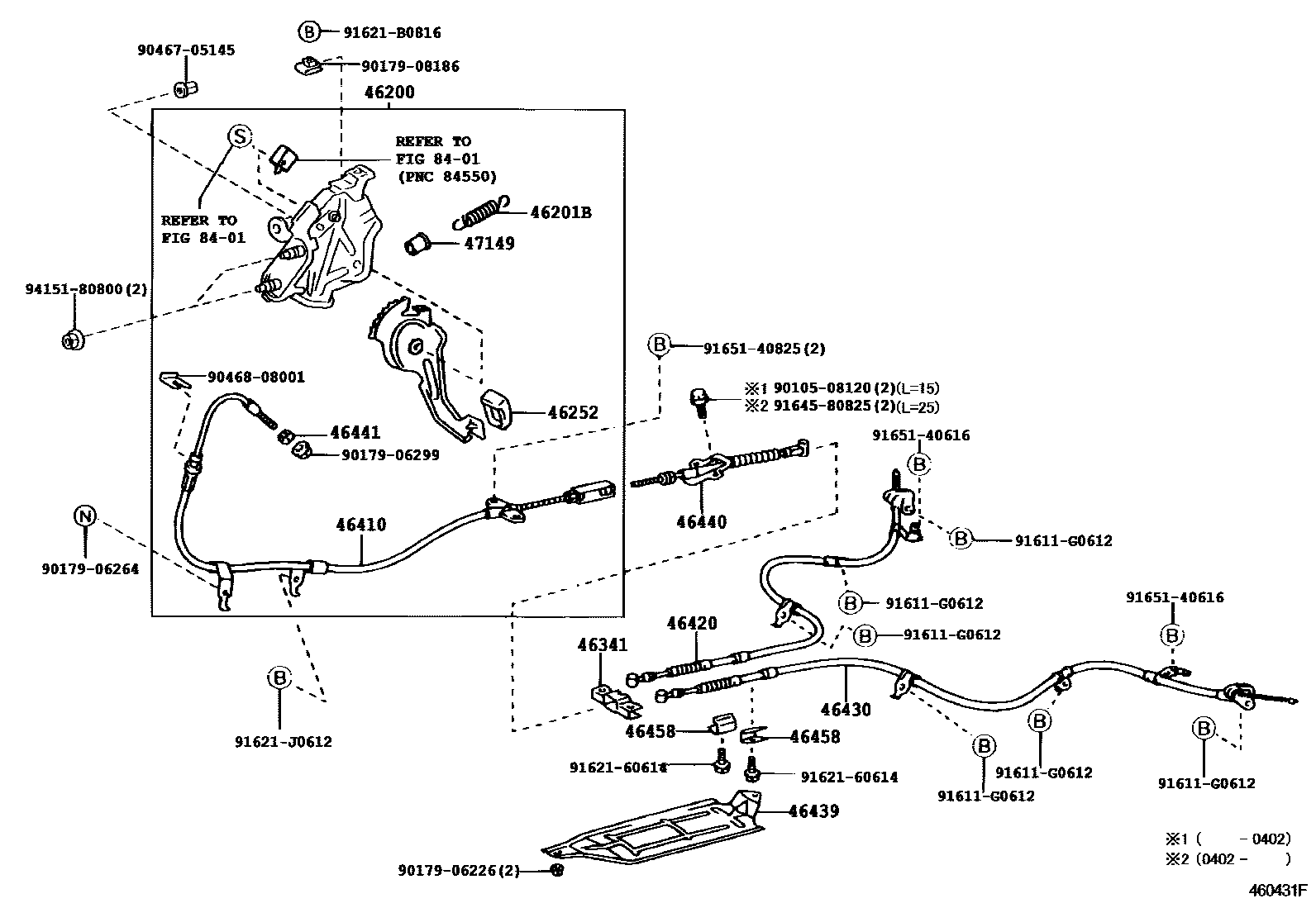

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-20040iAZT240,NZT240,ZZT24#200112-200412

46201BSPRING, TENSION

main90506-19005iAZT240,NZT240,ZZT24#200112-200412

46252PAD, PARKING PEDAL

main46252-63010iAZT240,NZT240,ZZT24#200112-200412

46341EQUALIZER, PARKING BRAKE

main46341-12020iAZT240,NZT240,ZZT24#200112-200412

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20460iAZT240,NZT240,ZZT24#200112-200412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20490iNZT240,ZZT240200112-200705

main46420-20500iAZT240200112-200705

main46420-20510iZZT245200112-200705

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20610iNZT240,ZZT240200112-200705

main46430-20620iAZT240200112-200705

main46430-20630iZZT245200112-200705

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46408-63010iAZT240,NZT240,ZZT240200112-200412

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-21010iAZT240,NZT240,ZZT24#200402-200412

main46440-63010iAZT240,NZT240,ZZT24#200112-200402

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAZT240,NZT240,ZZT24#200112-200412

46458RETAINER, CABLE

main46458-28010iAZT240,NZT240,ZZT24#200112-200412

47149DAMPER, RETURN SPRING

main47149-22010iAZT240,NZT240,ZZT24#200112-200412

8401

9010508120

main90105-08120

9017906226

main90179-06226

9017906264

main90179-06264

9017906299

main90179-06299

9017908186

main90179-08186

9046705145

main90467-05145

9046808001

main90468-08001

91611G0612

main91611-G0612

9162160614

main91621-60614

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9164580825

main91645-80825

9165140616

main91651-40616

9165140825

main91651-40825

9415180800

main94151-80800

28 parts on this diagram · 2 diagrams in section
