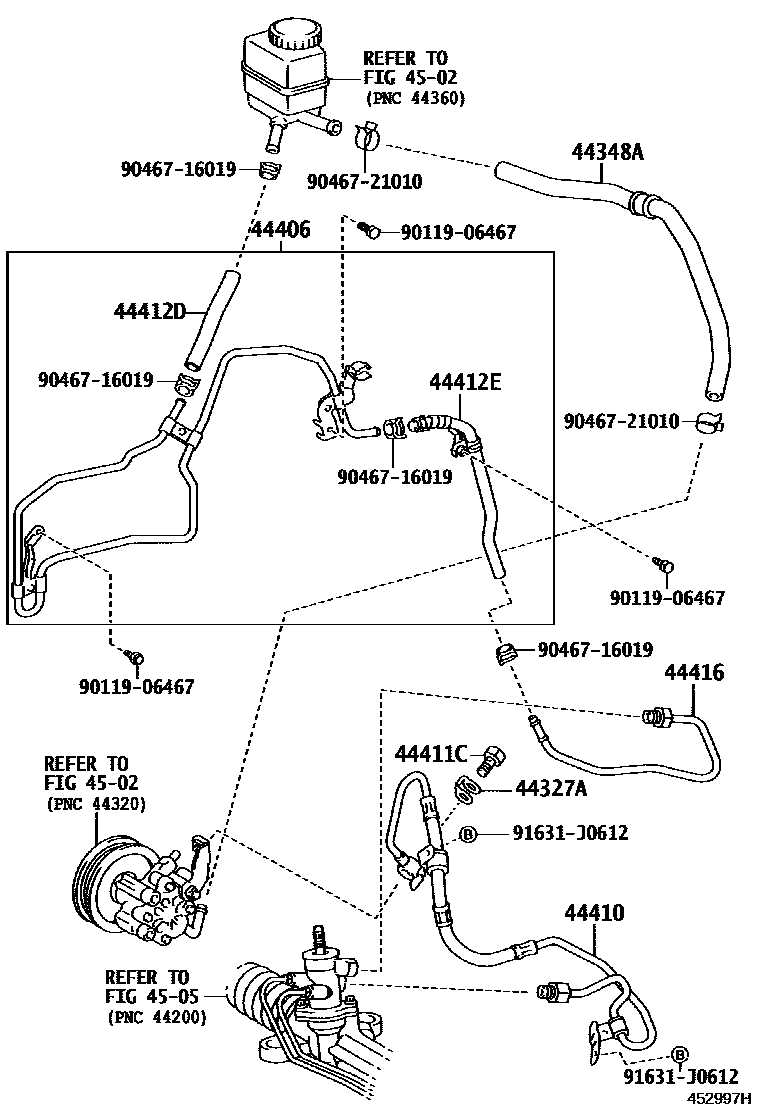

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAZT240200412-200507

main44327-30030iAZT240200508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20620iNZT240200412

main44348-20630iZZT24#200112-200412

main44348-20640iAZT240200412

44406TUBE SUB-ASSY, RETURN

main44406-20830iZZT240200112-200412

main44406-20840iAZT240200412

main44406-20850iZZT245200112-200412

main44406-2B040iNZT240200412

44410TUBE ASSY, PRESSURE FEED

main44410-2B320iNZT240200112-200311

main44410-2B321iNZT240200412

main44410-2B330iZZT240200112-200412

main44410-2B340iAZT240200412

main44410-2B400iZZT245200412-200512

main44410-2B401iZZT245200601

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iAZT240200112-200412

44412DHOSE, RETURN, NO.1

main44412-20210iZZT240200112-200412

main44412-20230iAZT240200112-200412

main44412-20240iZZT245200112-200412

main44412-20250iNZT240200412-200705

44412EHOSE, RETURN, NO.2

main44412-20260iNZT240,ZZT240200112-200412

main44412-20270iAZT240200412-200705

main44412-20280iZZT245200112-200412

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20250iAZT240,NZT240,ZZT240200112-200412

main44416-20260iZZT245200112-200412

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906467

main90119-06467

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

14 parts on this diagram · 4 diagrams in section
