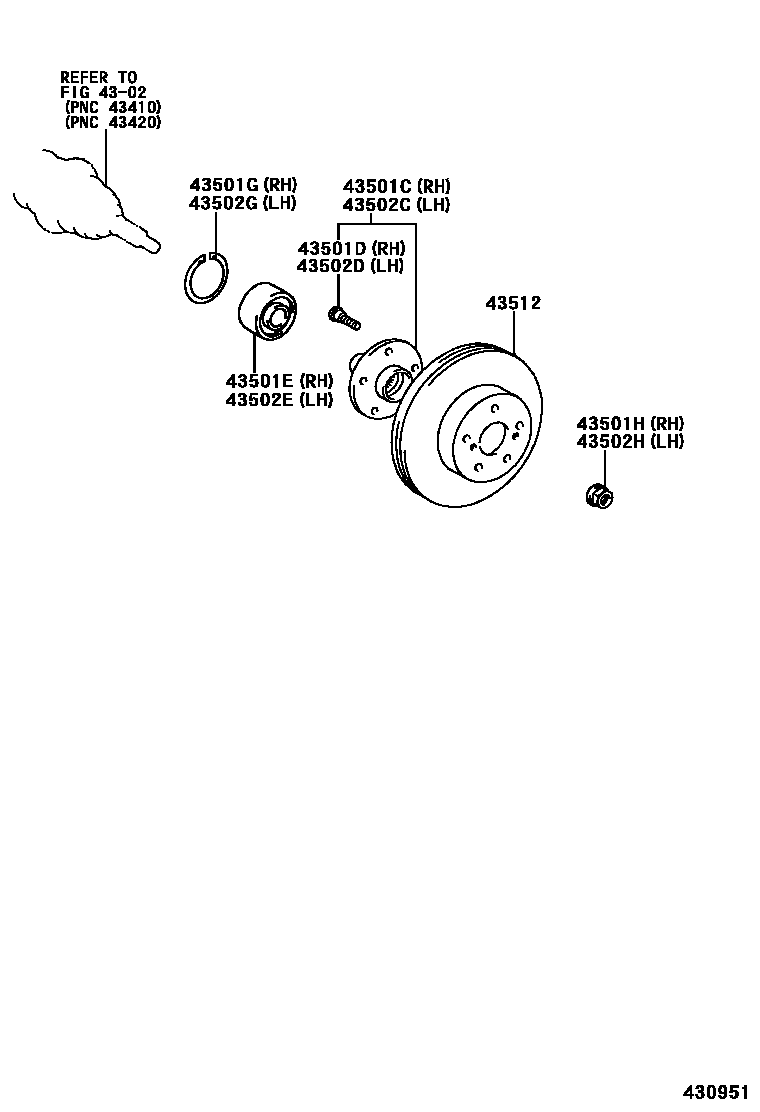

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080iAZT240,NZT240,ZZT24#200112-200412

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAZT240,NZT240,ZZT24#200112-200412

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iAZT240,NZT240,ZZT24#200112-200412

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iAZT240,NZT240,ZZT24#200112-200412

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZT240,NZT240,ZZT24#200112-200412

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080iAZT240,NZT240,ZZT24#200112-200412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAZT240,NZT240,ZZT24#200112-200412

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iAZT240,NZT240,ZZT24#200112-200412

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iAZT240,NZT240,ZZT24#200112-200412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZT240,NZT240,ZZT24#200112-200412

43512DISC, FRONT

main43512-20711iAZT240,ZZT245200401-200705

main43512-32300iNZT240,ZZT240200112-200402

sub43512-32301

main43512-32301iNZT240,ZZT240200402-200705

sub43512-20701

main43512-63010iAZT240,ZZT245200112-200401

sub43512-20711

12 parts on this diagram · 1 diagram in section
