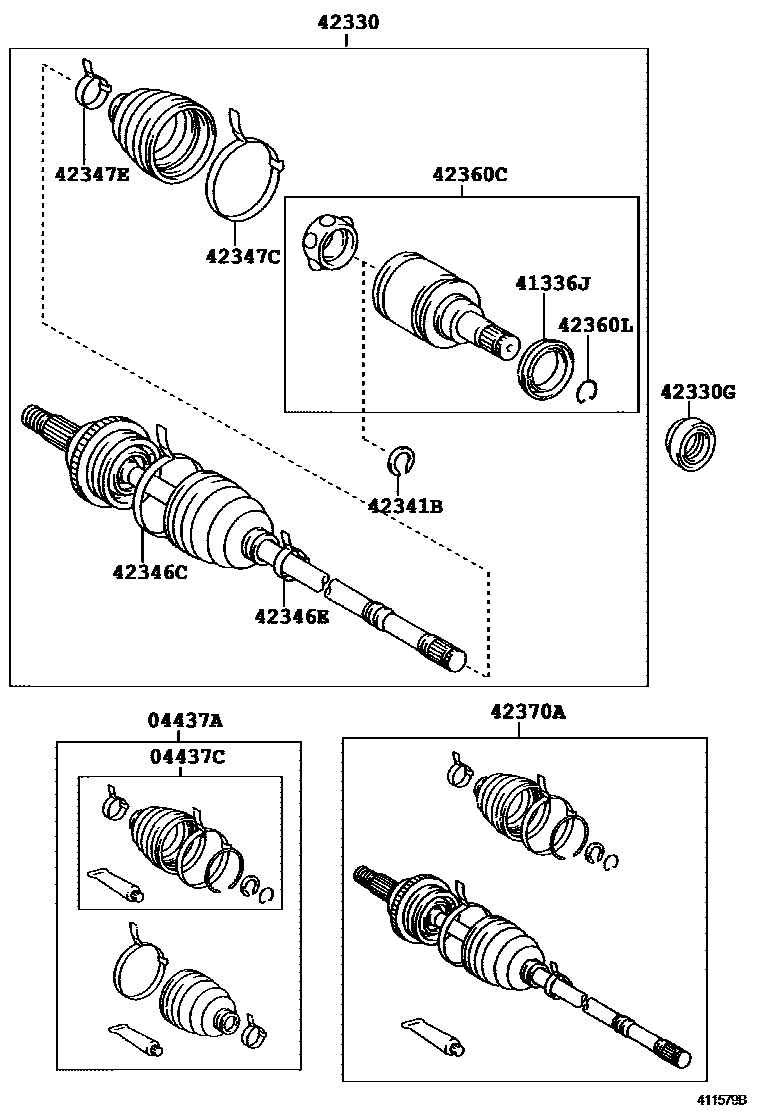

REAR AXLE SHAFT & HUB

0001 1��� 0002 1��� 0003 1 0004 1

04437ABOOT KIT, REAR DRIVE SHAFT, RH

main04429-12020iZZT245200112-200412

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04437-21012iZZT245200112-200412

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-33010iZZT245200112-200412

42330SHAFT ASSY, REAR DRIVE, RH

main42340-32110iZZT245200112-200412

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-42033iZZT245200112-200412

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main90520-21020iZZT245200112-200412

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12120iZZT245200112-200412

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12130iZZT245200112-200412

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12120iZZT245200112-200412

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12130iZZT245200112-200412

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-33010iZZT245200112-200412

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-26004iZZT245200112-200412

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-39156iZZT245200412

13 parts on this diagram · 4 diagrams in section
