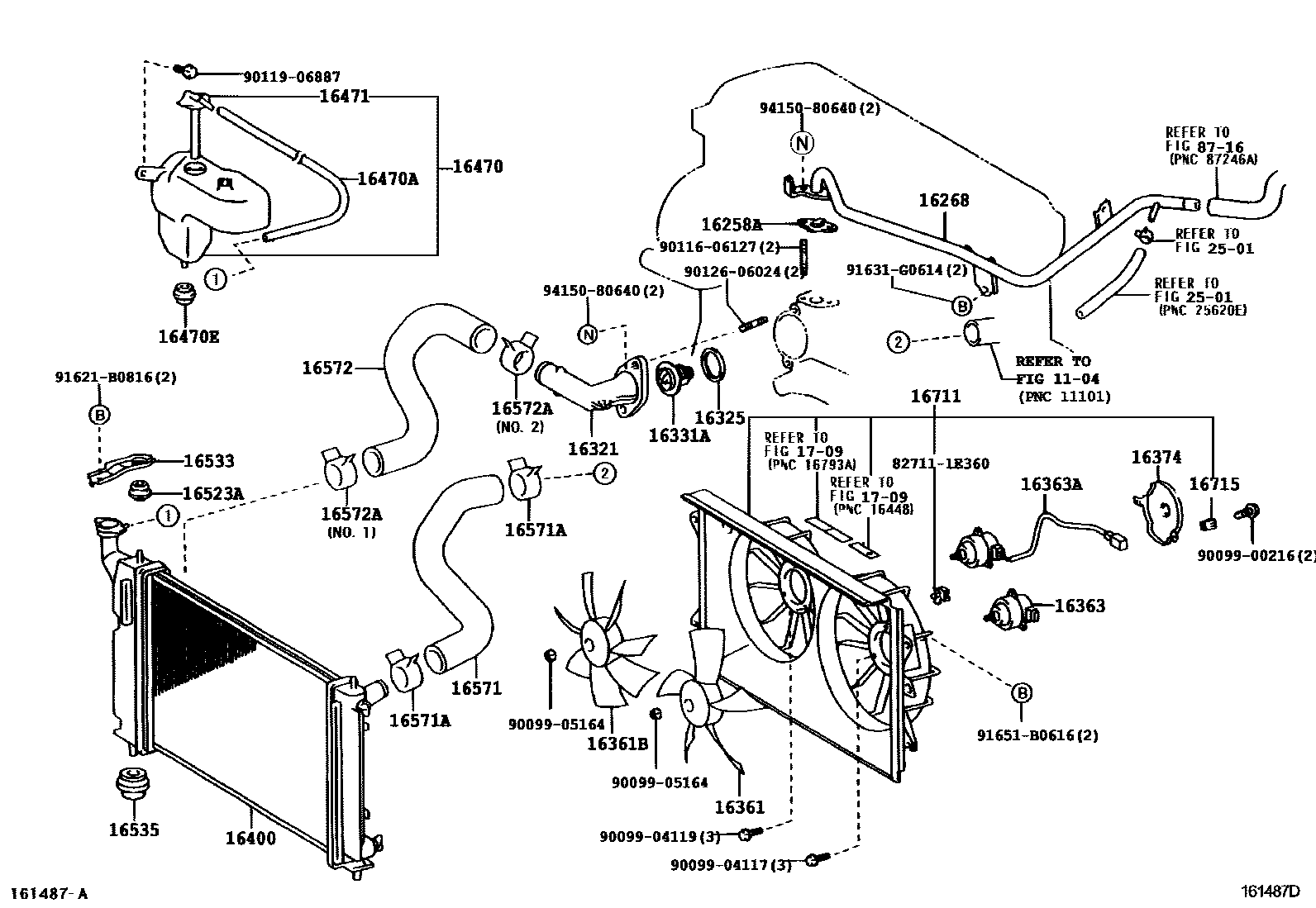

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..AZT240200112-200304

sub16258-28030

main16258-28011i1AZFSE..AZT240200304-200308

sub16258-28030

main16258-28030i1AZFSE..AZT240200308-200412

16268PIPE, WATER BY-PASS, NO.1

main16268-21020i1NZFE..NZT240200112-200301

sub16268-21022

main16268-21021i1NZFE..NZT240200301-200411

sub16268-21022

main16268-21022i1NZFE..NZT240200411-200412

main16268-22080i1ZZFE..ZZT245200112-200412

sub16268-22081

main16268-22160i1ZZFE..ZZT240200412

sub16268-22161

main16268-28020i1AZFSE..AZT240200112-200412

16321INLET, WATER

main16321-21020i1NZFE..NZT240200112-200412

main16321-22070i1ZZFE..ZZT24#200112-200412

main16321-28010i1AZFSE..AZT240200112-200412

16325GASKET, WATER INLET HOUSING, NO.1

main16325-0H020i1ZZFE..ZZT24#200406-200412

main16325-28010i1AZFSE..AZT240200308-200412

main16325-62010i1ZZFE..ZZT24#200406-200412

main16325-62010i1ZZFE..ZZT24#200112-200412

16331ATHERMOSTAT

main90916-03093i1NZFE..NZT240200112-200412

main90916-03127i1AZFSE..AZT240200112-200412

main90916-03129i1ZZFE..ZZT24#200112-200509

main90916-03136i1AZFSE..AZT240200510

16361FAN

main16361-21060i1NZFE..NZT240200112-200412

main16361-22050i1AZFSE..AZT240200112-200401

main16361-22051i1AZFSE..AZT240200401-200412

16361BFAN, NO.2

main16361-28080i1AZFSE..AZT240200112-200401

main16361-28081i1AZFSE..AZT240200401-200412

16363MOTOR, COOLING FAN

main16363-23010i1AZFSE..AZT240200112-200412

main16363-23020i1NZFE..NZT240200112-200304

main16363-28150i1NZFE..NZT240200305-200412

16363AMOTOR, COOLING FAN, NO.2

main16363-28070i1AZFSE..AZT240200112-200305

sub16363-28210

main16363-28210i1AZFSE..AZT240200305-200412

sub16363-37090

16374INSULATOR, COOLING FAN MOTOR

main16366-28120i1AZFSE..AZT240200112-200412

16400RADIATOR ASSY

main16400-21190i1NZFE..NZT240200112-200412

main16400-22170i1ZZFE..ZZT245200112-200412

main16400-28350i1AZFSE..AZT240200112-200412

16470TANK ASSY, RADIATOR RESERVE

main16470-22060i1AZFSE..AZT240200112-200412

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12049i1AZFSE..AZT240200112-200412

sub90445-12080

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-18010i1AZFSE..AZT240200112-200412

16471CAP SUB-ASSY, RESERVE TANK

main16405-22040i1NZFE..NZT240200112-200412

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1AZFSE..AZT240200112-200412

16533SUPPORT, RADIATOR, UPPER

main16533-22040i1ZZFE..ZZT24#200112-200412

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1NZFE..NZT240200112-200412

main16535-28030i1AZFSE..AZT240200112-200412

16571HOSE, RADIATOR, INLET

main16571-22120i1NZFE..NZT240200112-200412

main16571-22130i1ZZFE..ZZT24#200112-200412

main16571-28070i1AZFSE..AZT240200112-200412

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1AZFSE..AZT240200112-200703

main90467-34004i1ZZFE..ZZT24#200112-200703

main96136-43901i1NZFE..NZT240200704

main96136-44301i1AZFSE..AZT240200704

16572HOSE, RADIATOR, OUTLET

main16572-21040i1NZFE..NZT240200112-200412

main16572-22090i1ZZFE..ZZT24#200112-200412

main16572-28040i1AZFSE..AZT240200112-200412

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1NZFE..NZT240200112-200703

main90467-34004i1NZFE..NZT240200112-200703

main90467-37005i1ZZFE..ZZT24#200112-200704

main96136-43901i1NZFE..NZT240200704

main96136-44301i1NZFE..NZT240200704

main96136-44301i1NZFE..NZT240200704

16711SHROUD, FAN

main16711-22120i1NZFE..NZT240200112-200605

sub16711-22121

main16711-22121i1ZZFE..ZZT24#200606

main16711-28170i1AZFSE..AZT240200112-200412

16715BRACKET, FAN SHROUD

main88688-18030i1AZFSE..AZT240200112-200412

1709

2501

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9011606127

main90116-06127

9011906887

main90119-06887

9012606024

main90126-06024

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

40 parts on this diagram · 8 diagrams in section
