VENTILATION HOSE

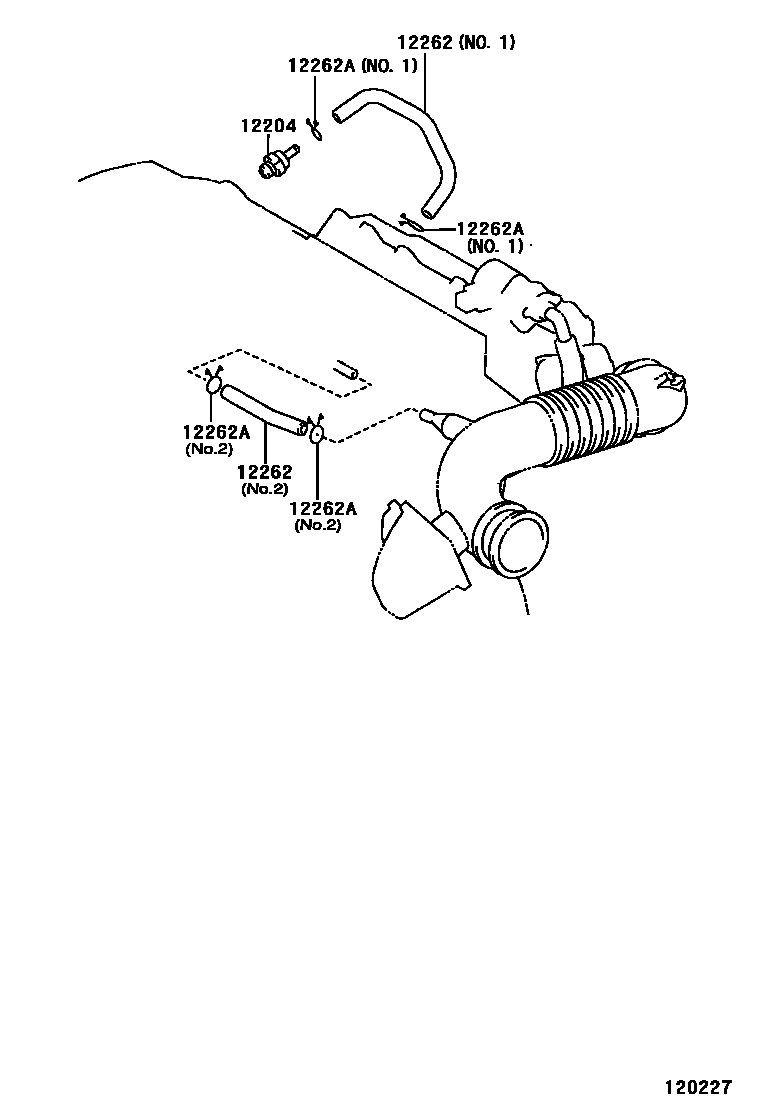

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-21010i200112-200401
sub12204-21011
main12204-21011i200401-200412
main12204-22050i200112-200405
sub12204-22051
main12204-22051i200405-200412
main12204-28020i200112-200412
12262HOSE, VENTILATION, NO.2
main12262-0D050i200406-200412
main12262-21060i200112-200412
main12262-22040i200406-200412
main12262-22040i200112-200406
main12262-28030i200112-200412
main12262-28040i200112-200412
12262ACLIP(FOR VENTILATION HOSE NO.2)
main16581-21050i200408-200412
main90466-18002i200403-200412
main90467-13103i200112-200412
main90467-19003i200112-200412
main90467-21004i200112-200412
main90467-21004i200112-200408

3 parts on this diagram · 3 diagrams in section
